Hardware options installation 99

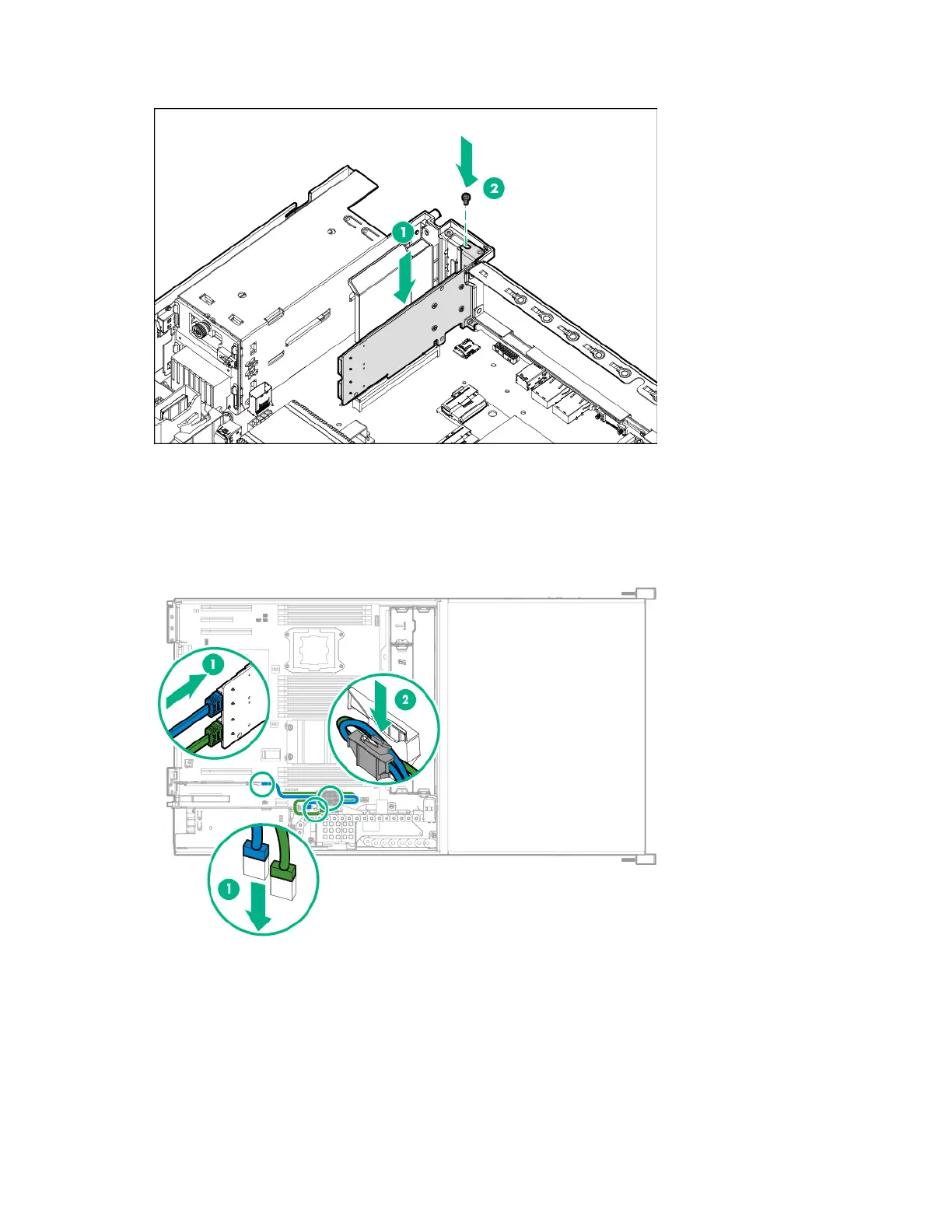

— M.2 SSD enablement board installed in the onboard PCIe3 x16 expansion slot 2
e. Open the cable management holder (on page 32).
f. Connect the SATA cables to the M.2 SSD enablement board and the system board.
g. Close the cable management holder (on page 34).
h. Secure the extra length of the SATA cables in the cable management holder.
— M.2 SSD cabling from the onboard PCIe3 x8 expansion slot 1
