HP HPE Edgeline EL1000

Install the DC power supplyInstall the DC power supply
ProcedureProcedure

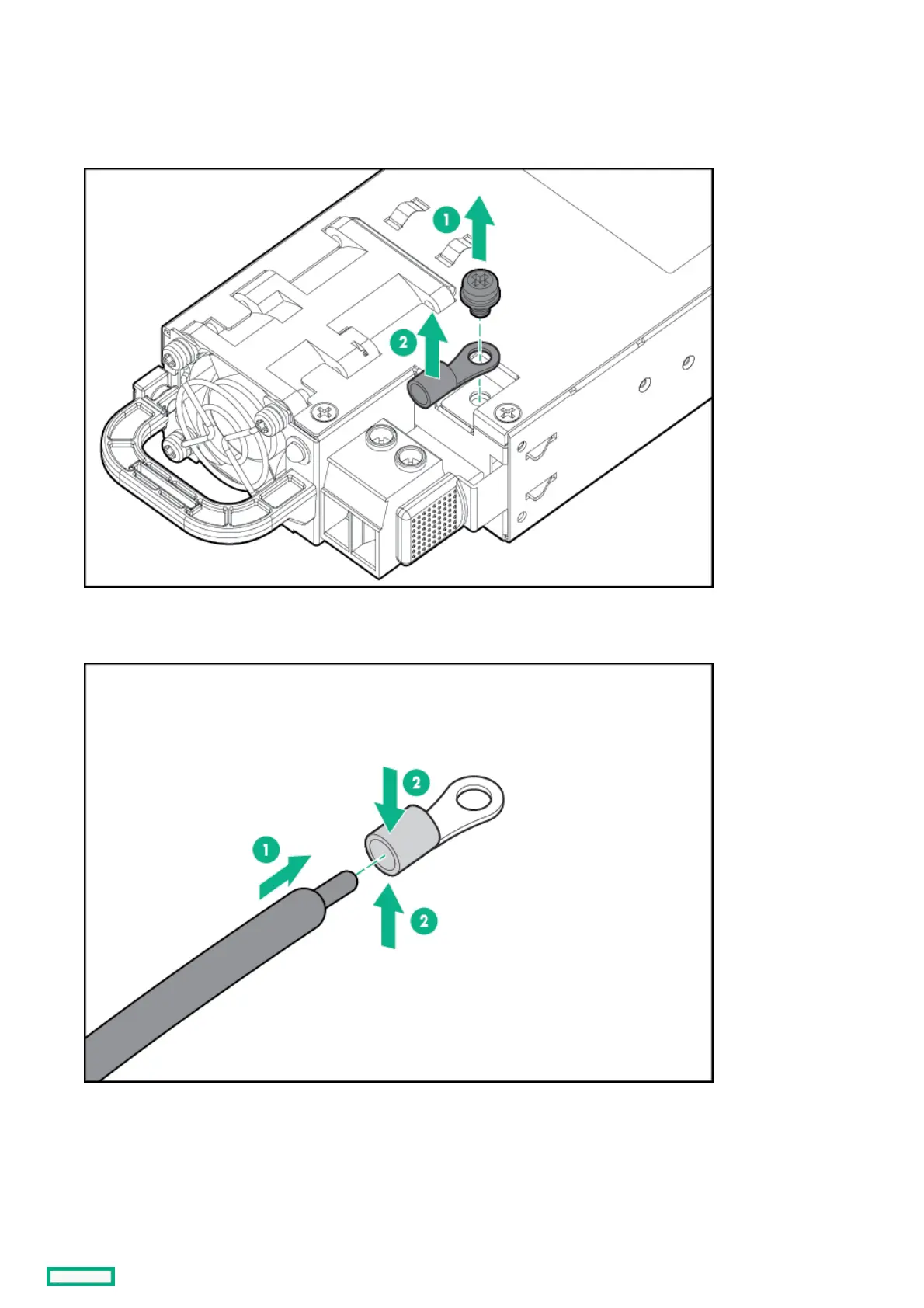

1. Remove the ring tongue from the top of the power supply.
2. Crimp the ring tongue to the ground cable from the -48V power source.
3. Remove the black connector from the rear of the power supply.
Install the DC power supply 24
