Installing the ETSI rack mounting option kitInstalling the ETSI rack mounting option kit
ProcedureProcedure

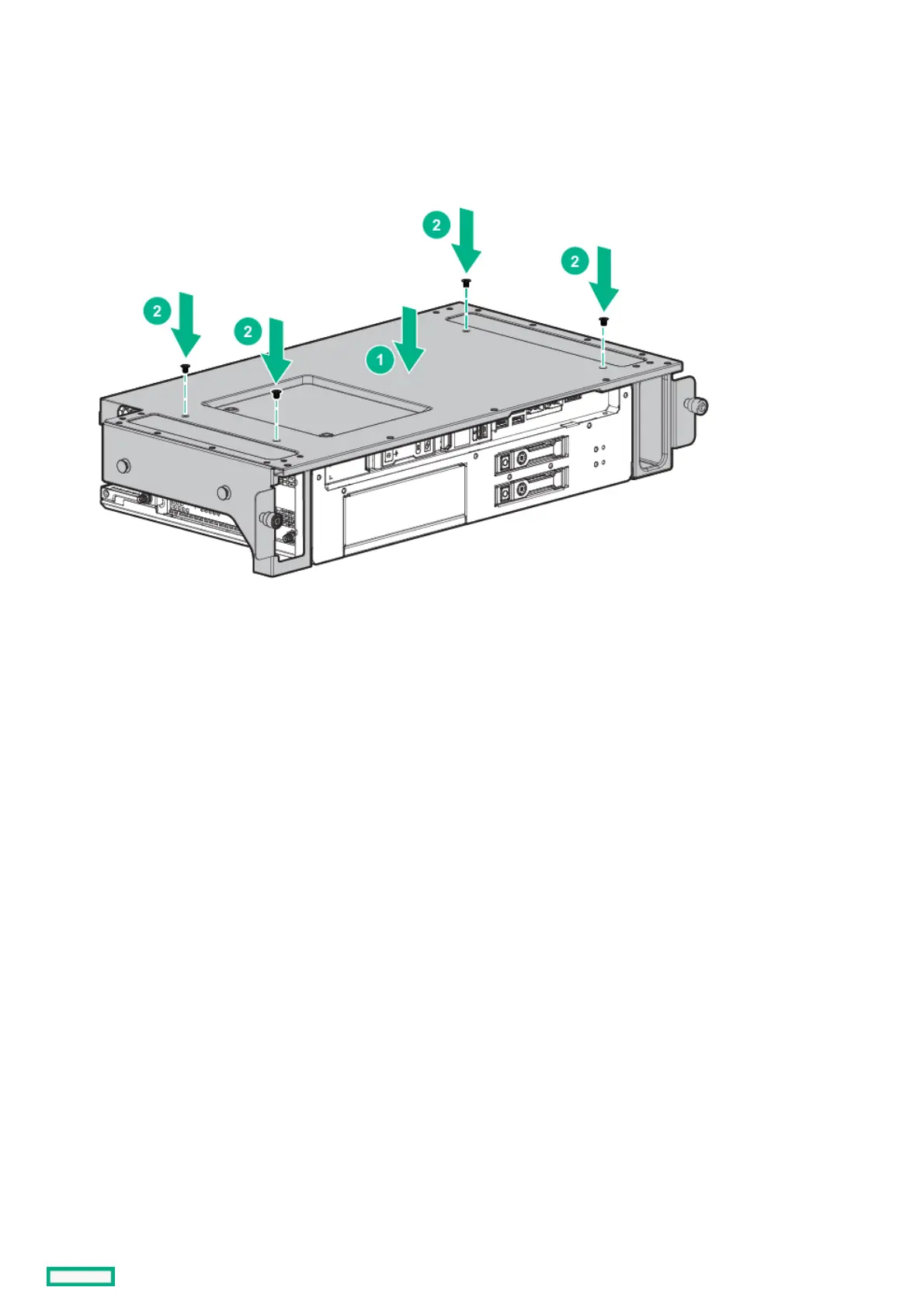

1. Align the rack mount bracket to the system.
2. Using a Torx screwdriver, insert and tighten four T-10 Torx screws to secure the bracket to the system.
3. Install the ETSI brackets to the rack:
a. Align the bracket to the rack rail.
b. Using a Torx screwdriver, insert and tighten two T-20 Torx screws to secure each bracket to the rack rail.
4. Align the system to the ETSI bracket.
5. Secure the system in the ETSI rack mount.
