HP HPE Edgeline EL1000

Install a half-length mini-PCIe WiFi module optionInstall a half-length mini-PCIe WiFi module option
You will need a half-length mini-PCIe module adapter provided with the WiFi option kit to install this option.
ProcedureProcedure
1. Power down the system .
2. Remove the blade, if installed.
3. Remove the access panel .

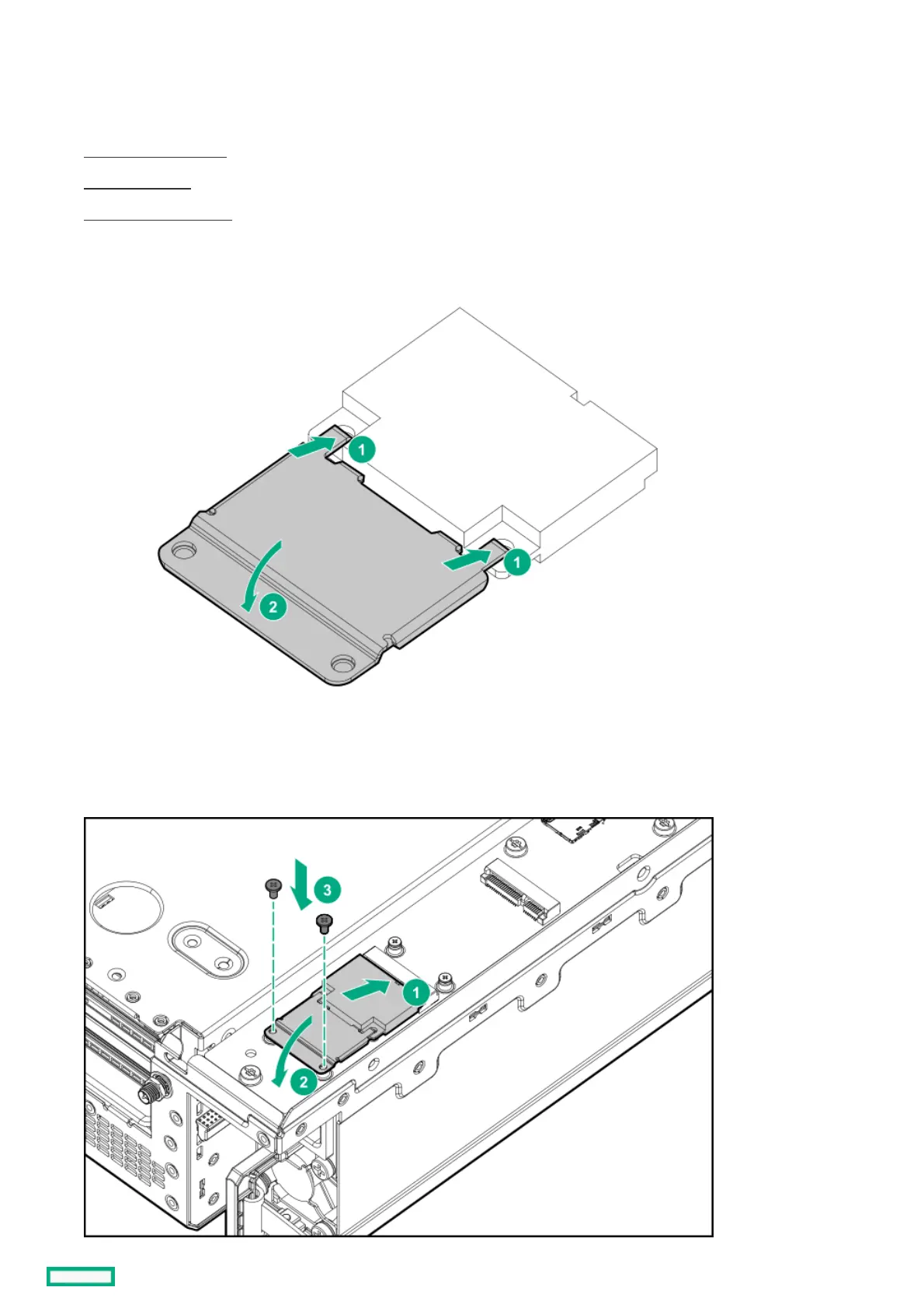

4. Install the adapter using the two holes of the half-length mini-PCIe module.
5. Insert the mini-PCIe module connector into the slot.
6. Using a Phillips screwdriver, insert and tighten the two screws to secure the mini-PCIe module to the board.
Install a half-length mini-PCIe WiFi module option 66
