Install the bladeInstall the blade

No blade supported on the system support Legacy BIOS Boot mode. For more information, see the user and maintenance guide for your

blade.

ProcedureProcedure

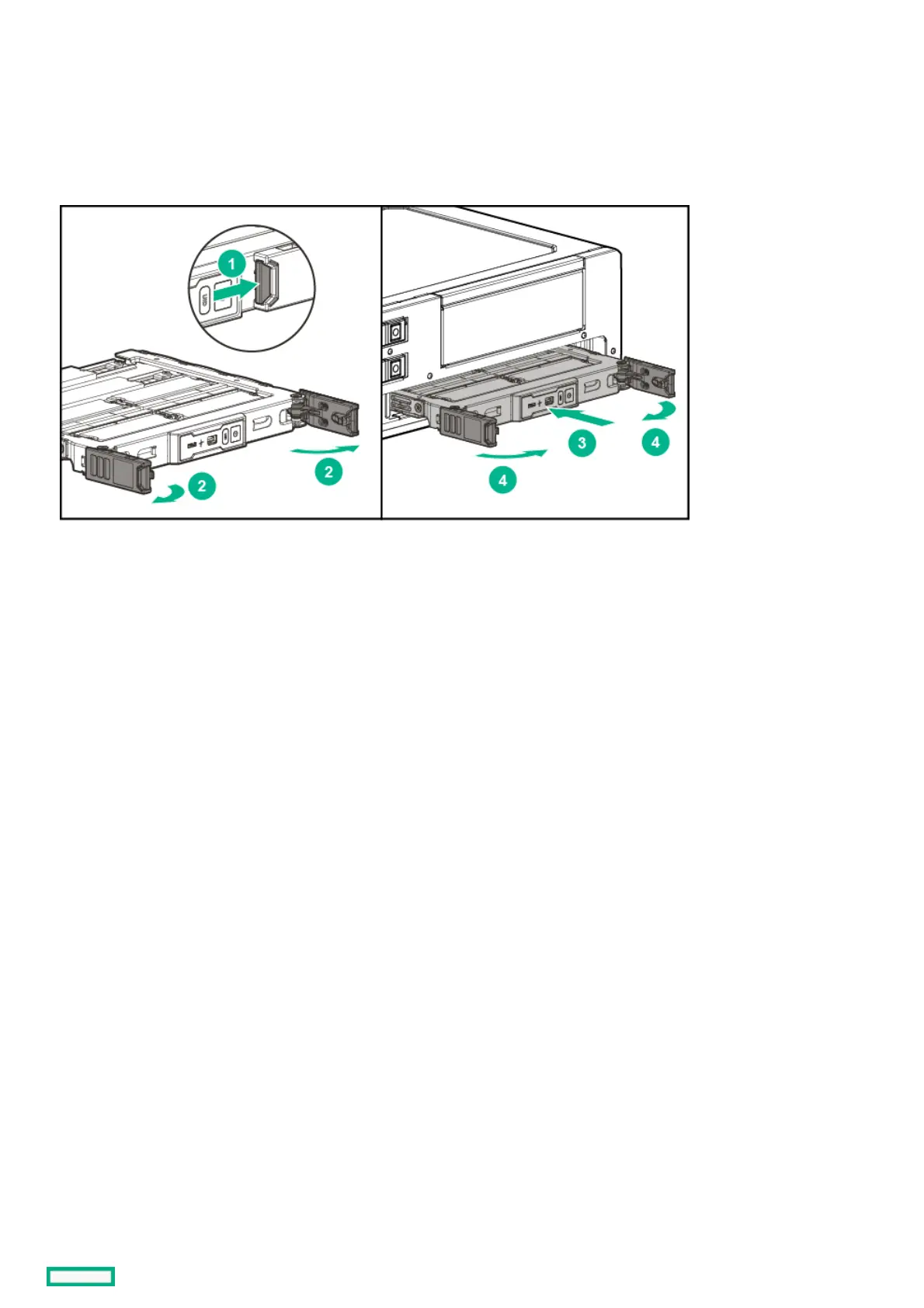

Align and install the blade into the system.

Install the blade 39
