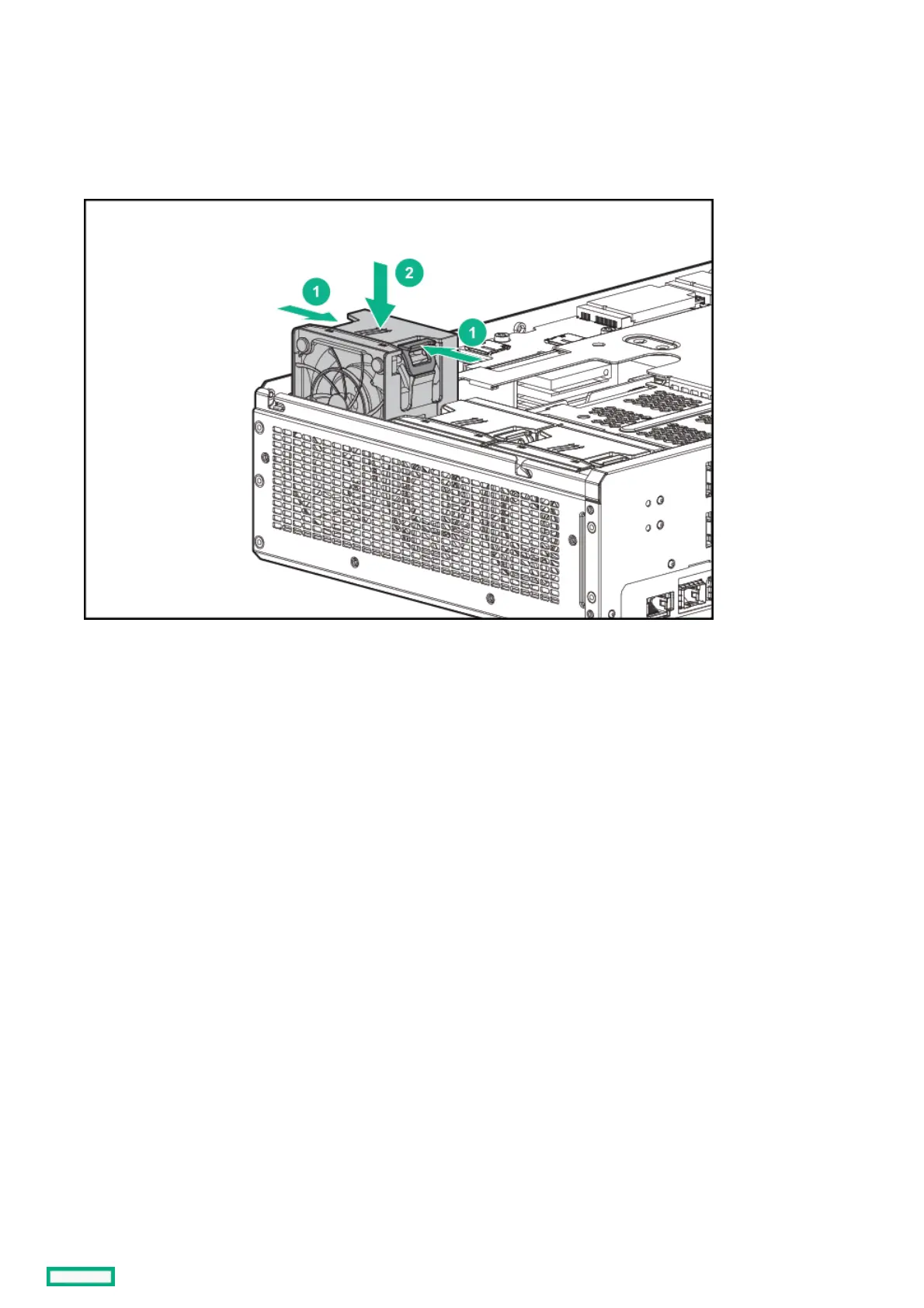

Install the fansInstall the fans

ProcedureProcedure

1. Align the fan with the fan slots of the system.

2. Squeeze the tabs on either side of the fan, and then slide it into the bay until it clicks in place.

Install the fans 38
