Remove the bladeRemove the blade

ProcedureProcedure

1. Power down the system .

2. Dismount the system.

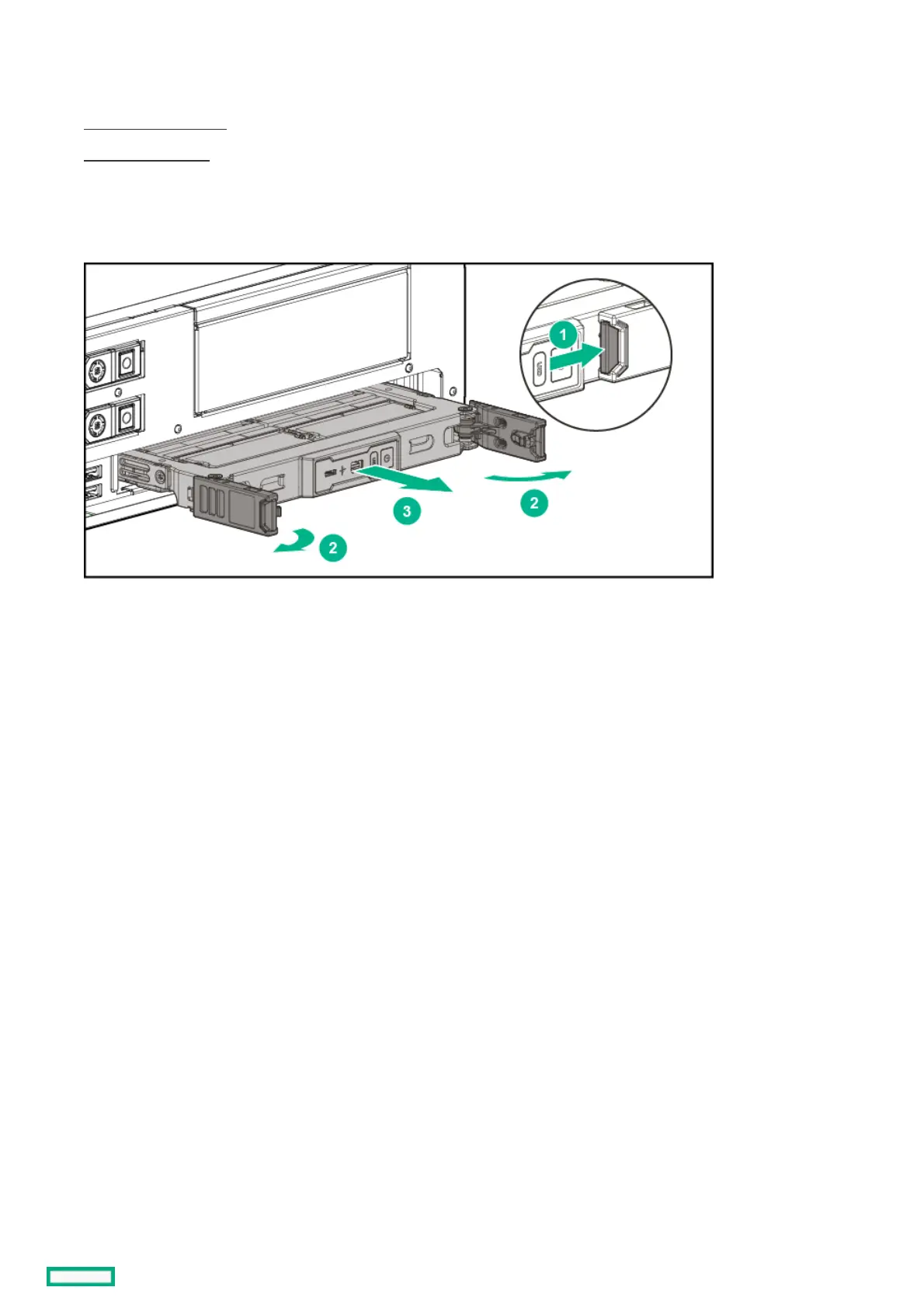

3. Press the blade latch buttons and open the latches.

4. Remove the blade.

Remove the blade 40
