Installing the driveInstalling the drive

ProcedureProcedure

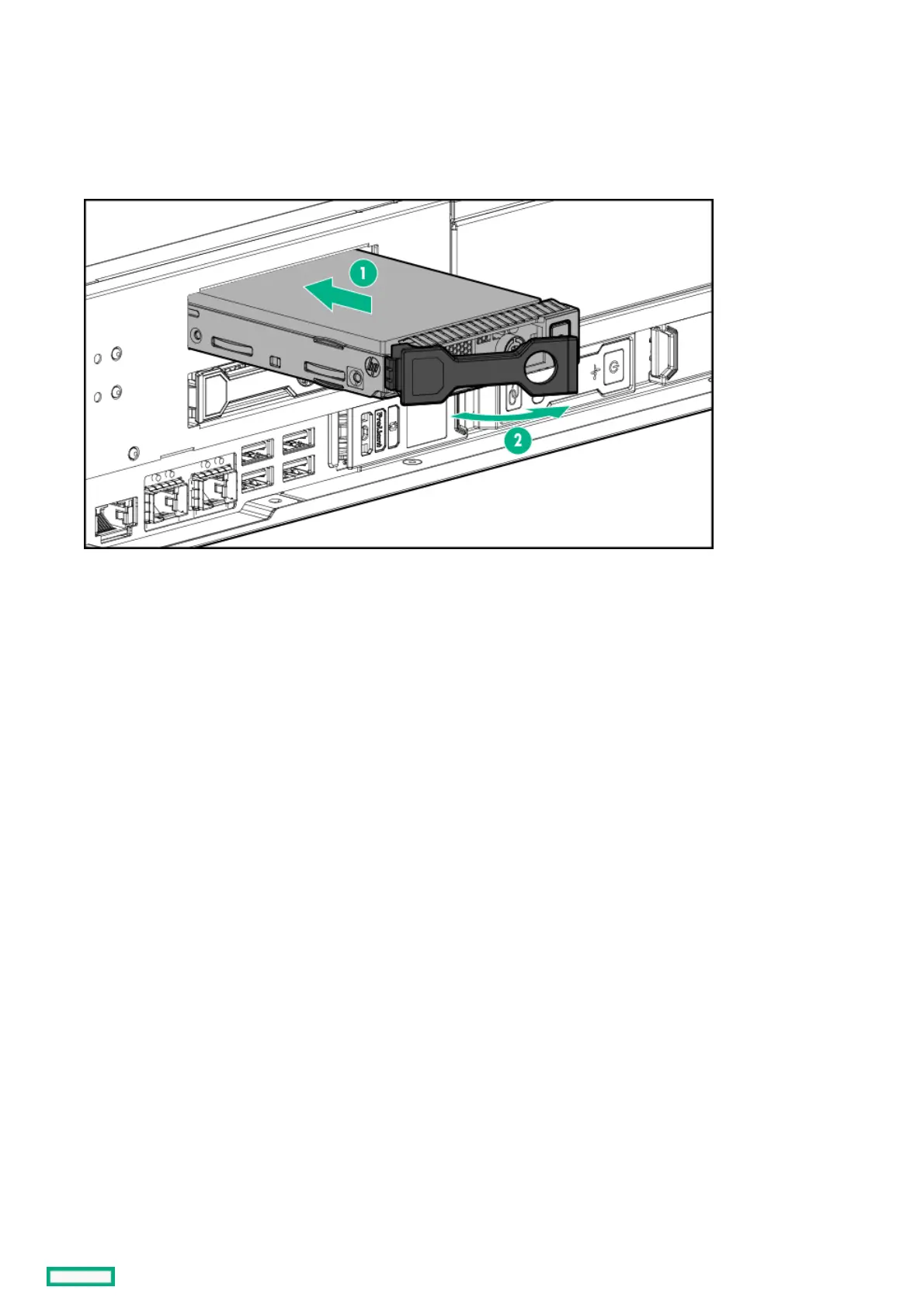

1. Align the drive to the drive bay, and slide it into the bay until it clicks in place.

2. Close the locking latch to secure the drive.

Installing the drive 59
