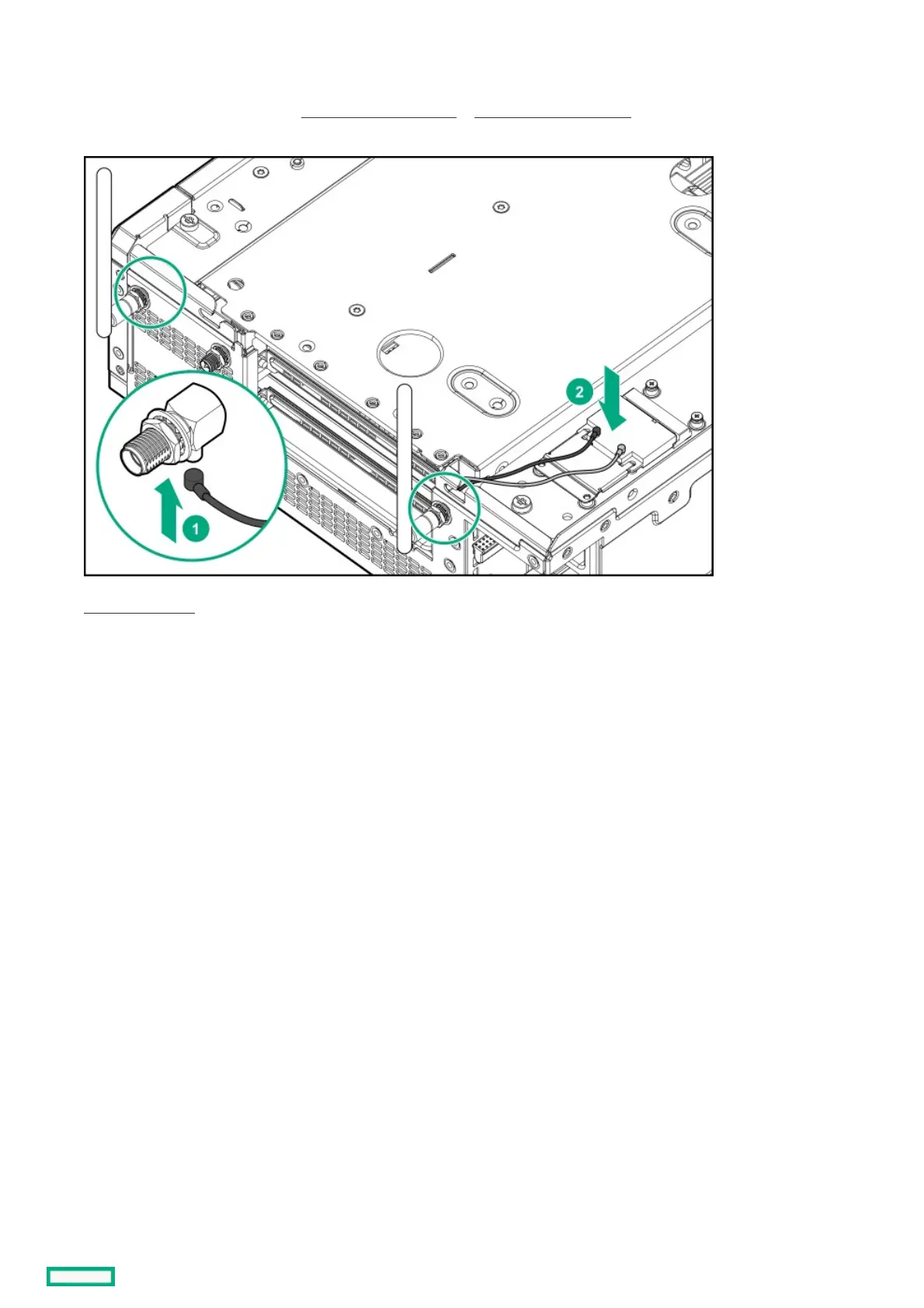

7. Install the two internal antenna cables on the antenna connectors on the module.

8. Install the two internal antenna cables to the antenna connector ports.

For antenna connector locations, see PCI right side components or PXI right side components .

9. Install the antenna.

Install a half-length mini-PCIe WiFi module option 67
