6. Remove the necessary memory risers (“Installing DIMMs” (page 36)).

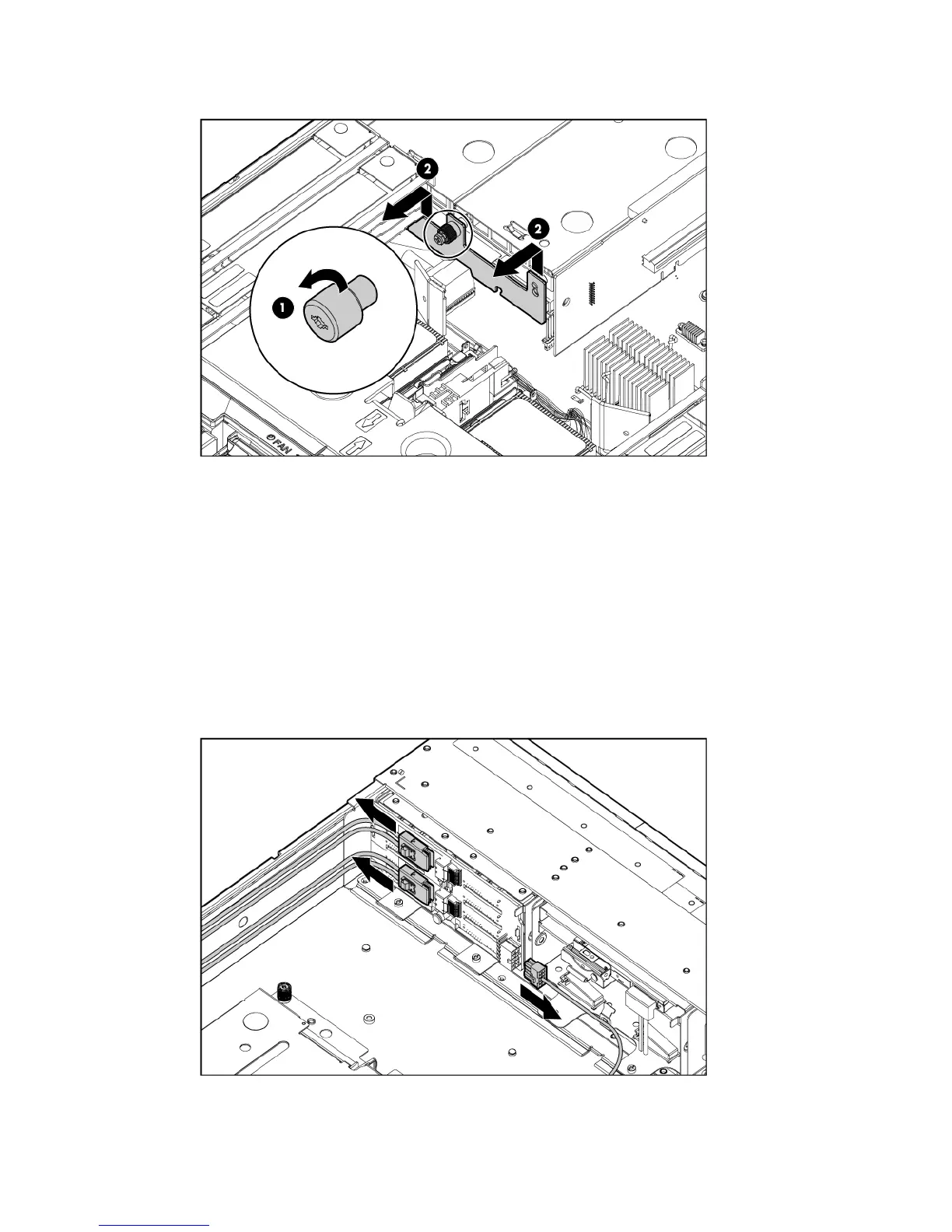

7. Remove the power supply backplane.
To replace the component, reverse the removal procedure.
Hard drive backplane
To remove the component:
1. power off the server (“power off the server” (page 102)).
2. Extend or remove the server from the rack (“Remove the server from the rack” (page 102)) or
“Extend the server from the rack” (page 99)).
3. Remove the access panel (“Removing the access panel” (page 30)).
4. Remove all hot-plug hard drives (“Hot-plug SAS hard drive” (page 105)).
5. Disconnect the SAS cable from the hard drive backplane.
6. Remove the hard drive backplane.
Hard drive backplane 111
