Removing and replacing the CPU baffle
Removing the CPU baffle
CAUTION: To prevent damage to the server, never power on a server without a CPU baffle or
CPU in each CPU socket. The CPU baffle is needed for proper system cooling
CAUTION: Immediately install a CPU baffle in an empty CPU socket. To avoid damage to the
socket pins, the socket should never be uncovered for more than 5 seconds. If the socket is damaged,
the entire system board must be replaced.
1. power off the server and remove it from the rack (“power off the server” (page 102) and
“Remove the server from the rack” (page 102)).
2. Remove the access panel (“Removing the access panel”).

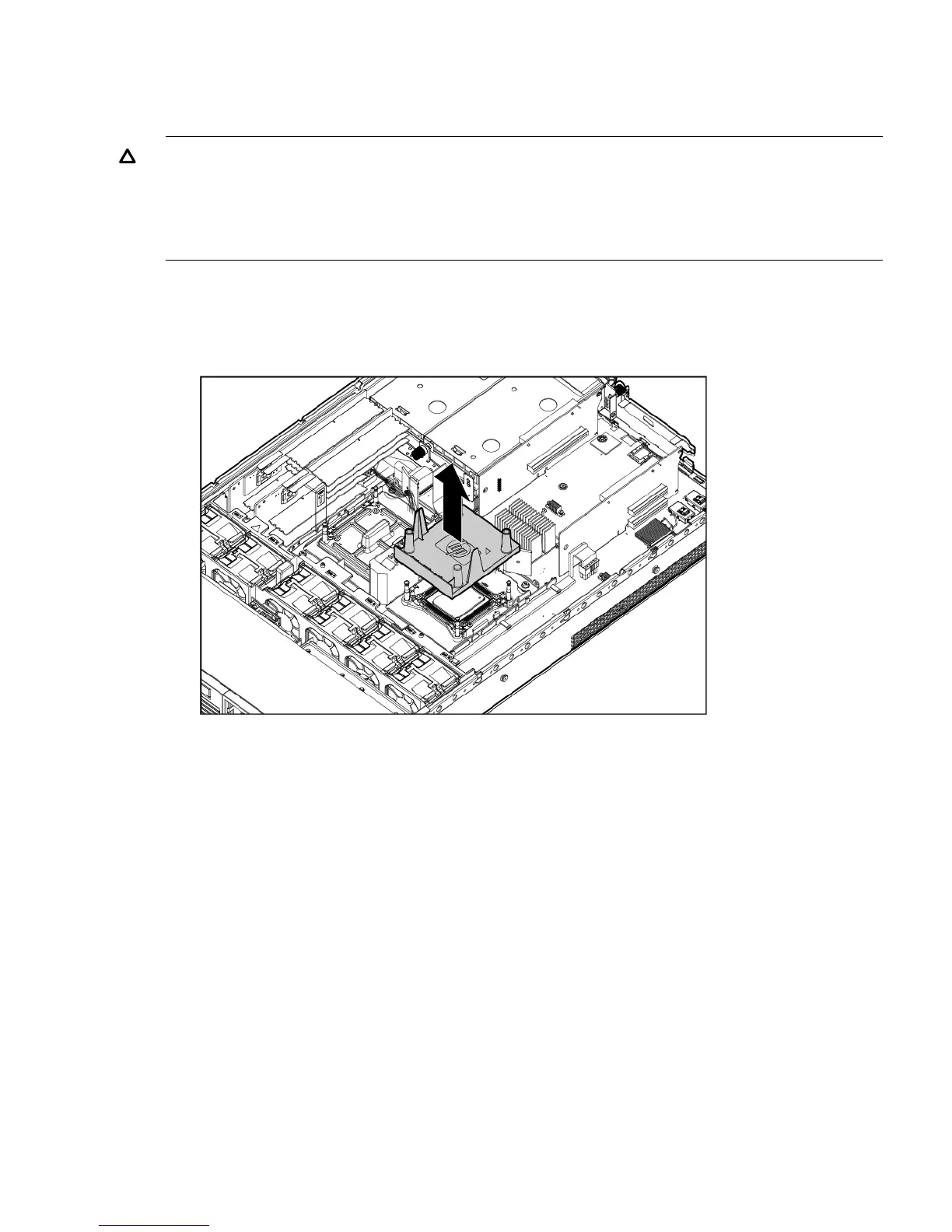

3. Pull the CPU baffle straight up and out.
Replacing the CPU baffle
1. Line the CPU baffle up with 4 load posts on each corner of the socket.
2. Guide the CPU baffle straight down into place.
Removing and replacing the CPU baffle 117
