Table 4 Front Panel Controls
StatusFunctionName
• Blue = Identification
• Flashing blue = Remote iLO session or a
firmware flash update is in progress
• Off = Off
The UID button helps locate a particular server
within a rack of servers. You may remotely activate
this function through various system utilities.
UID button
• Green = Health good on all internal FRUs and
system firmware has passed “BOOT_START”
• Flashing Amber = A FRU or subsystem has
degraded or failed (system is on or in standby
mode).
• Flashing Red = A fatal fault has been detected
and logged. View the SID, other LEDs, and the
logs for information.
• Off = Health good on all internal FRUs and
system off
Provides information about the system status.System
health LED
• Green = System on
• Amber = System is powered off, but standby
power is on
• Off = System power and standby power is off
The power button manually powers the server on
and off.
Power
button
SID
The SID consists of several LEDs that can be lit to show the health or failure of various server
components. The layout mimics the physical placement of components as viewed from the top of
the server.

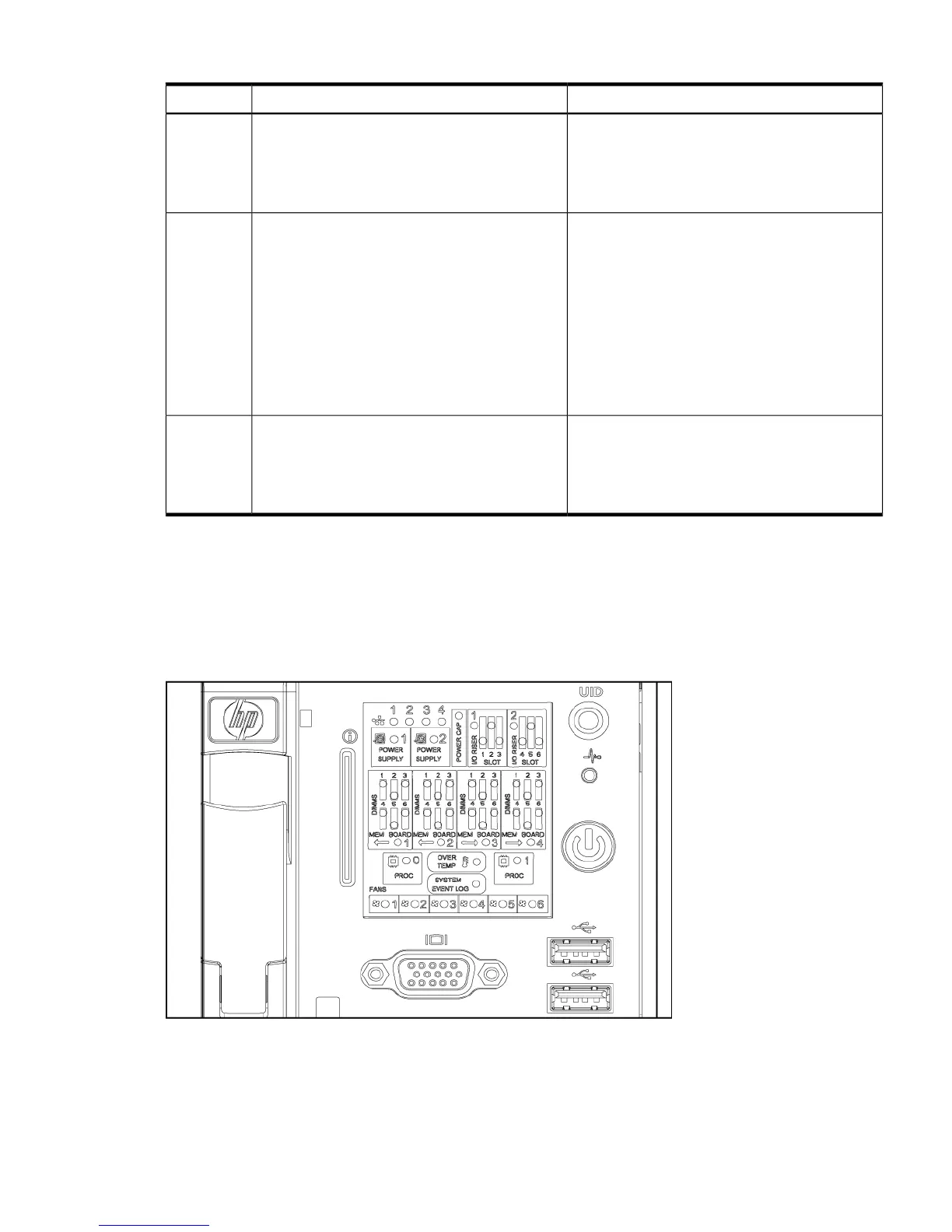

Figure 7 System Insight Display LEDs
Controls, ports, and LEDs 17
