To replace the component see “Installing expansion boards” (page 33).

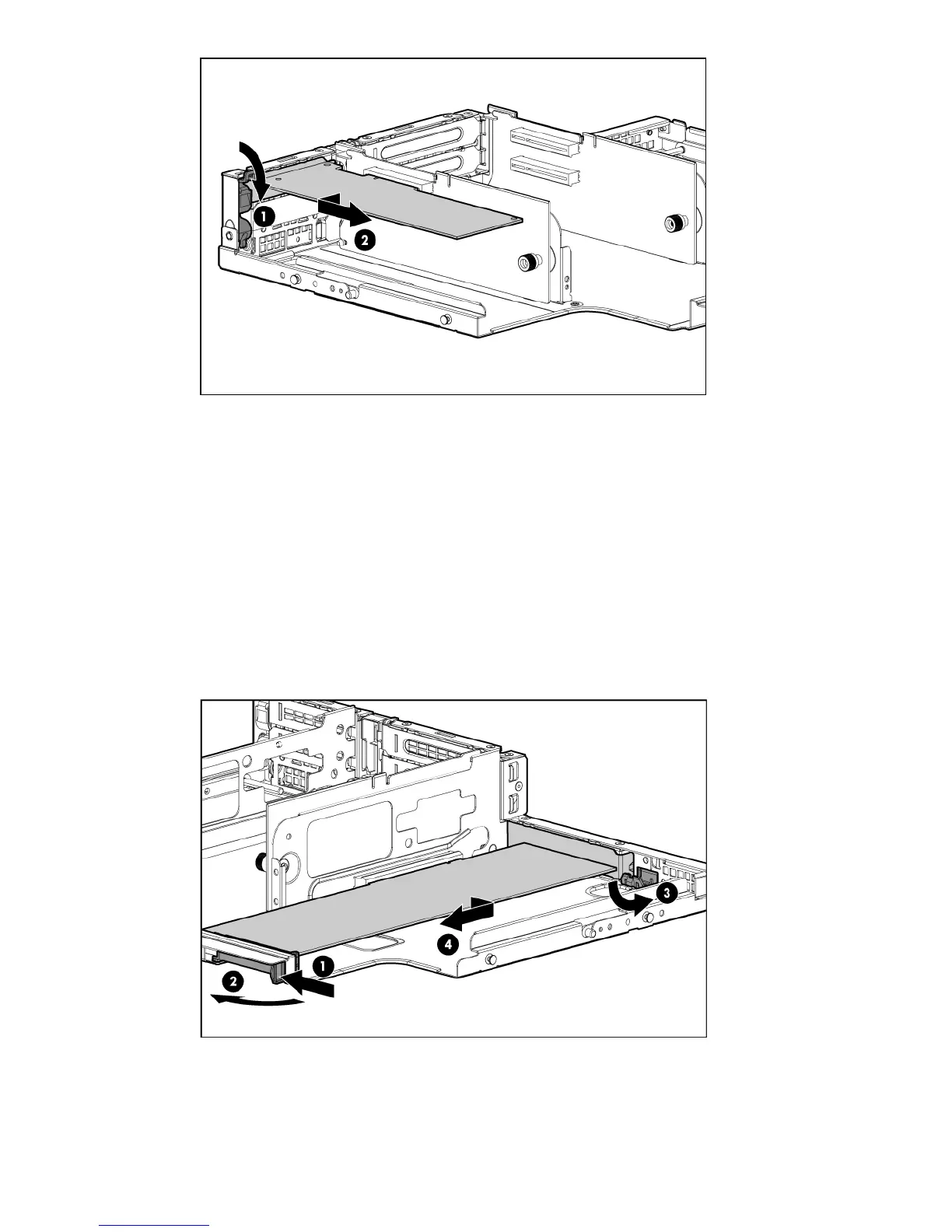

Full-length expansion board
To remove the component:
1. power off the server (“power off the server” (page 102)).
2. Extend the server from the rack (“Extend the server from the rack” (page 99)).
3. Remove the access panel (“Access panel” (page 107)).
4. Disconnect any external cables that are connected to the expansion board.
5. Remove the PCI riser cage (“PCI riser cage” (page 112)).
6. Disconnect any internal cables that are connected to the expansion board.
7. Remove the expansion board.
To replace the component, see “Installing expansion boards” (page 33).
Expansion boards 113

HP Integrity rx2800 - i2 Specifications

General

Number of Processors	1 or 2
Expansion Slots	6 PCI-X slots
RAID Support	Yes
Network Controller	Integrated dual Gigabit Ethernet
Operating Systems	HP-UX, Linux, Windows Server
Form Factor	2U rackmount
Storage	Up to 1.8TB
Network	Ethernet
