5. Connect any internal cables required by the expansion board.
6. Install the PCI riser cage back into the chassis.
7. Connect any external cables required by the expansion board.
DIMMs
Memory configurations
The server has 24 system memory DIMM slots located on 4 memory riser boards (6 DIMMs per
riser). You can access the memory riser boards without removing the airflow guide or the I/O card
cage.
The DIMMs are partitioned by the number of CPUs installed in the server. If you have only one
CPU installed in the system, you can only use 12 of the 24 memory slots.
CAUTION: Observe all ESD safety precautions before attempting this procedure. Failure to follow
ESD safety precautions can result in damage to the server.
Memory riser board locations and slot IDs
Install DIMMs into the appropriate risers attached to the system board. Each slot has a unique ID.
See Figure 2 (page 11) for memory riser locations.

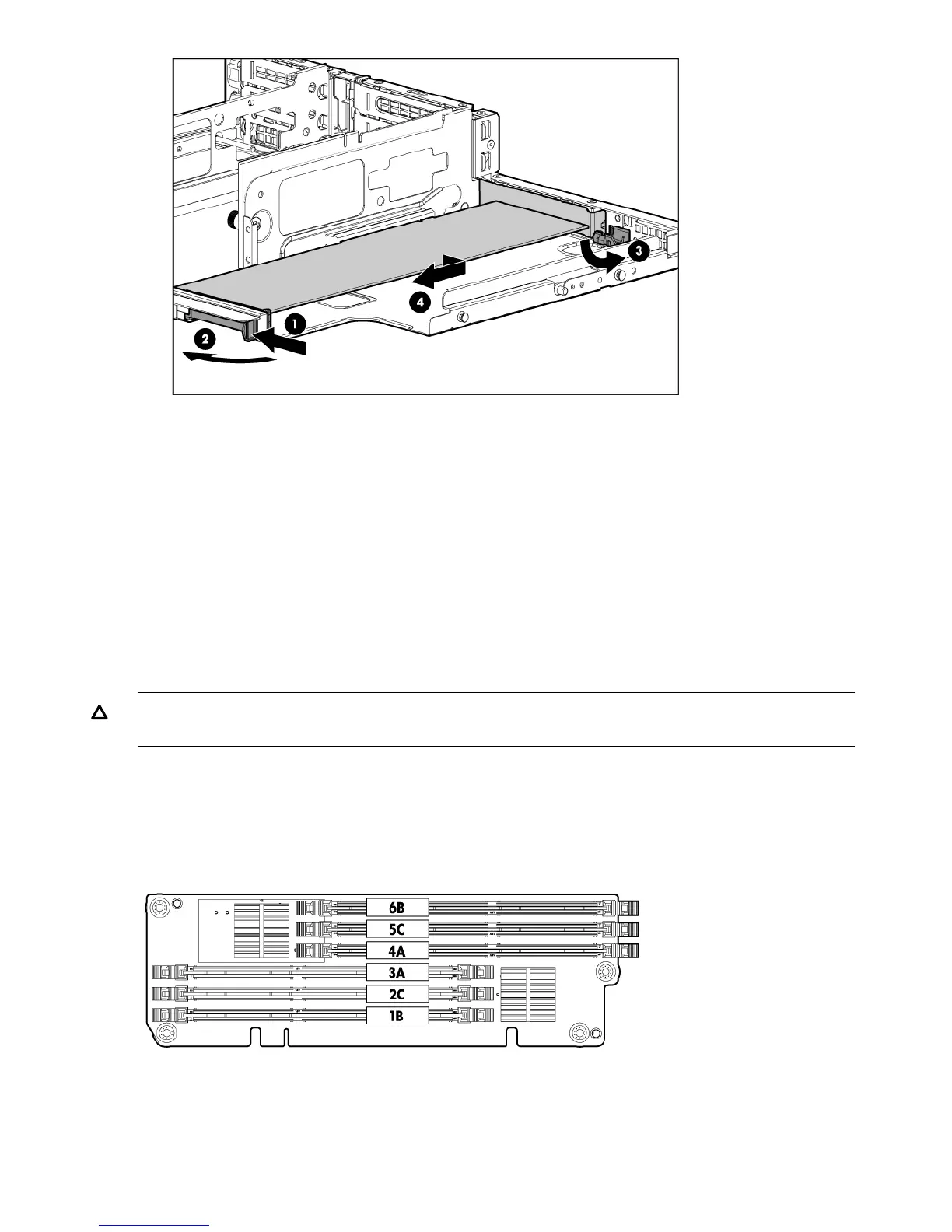

Figure 13 DIMM slot IDs
34 Installing the server
