HP Integrity rx2800 - i2 User Manual

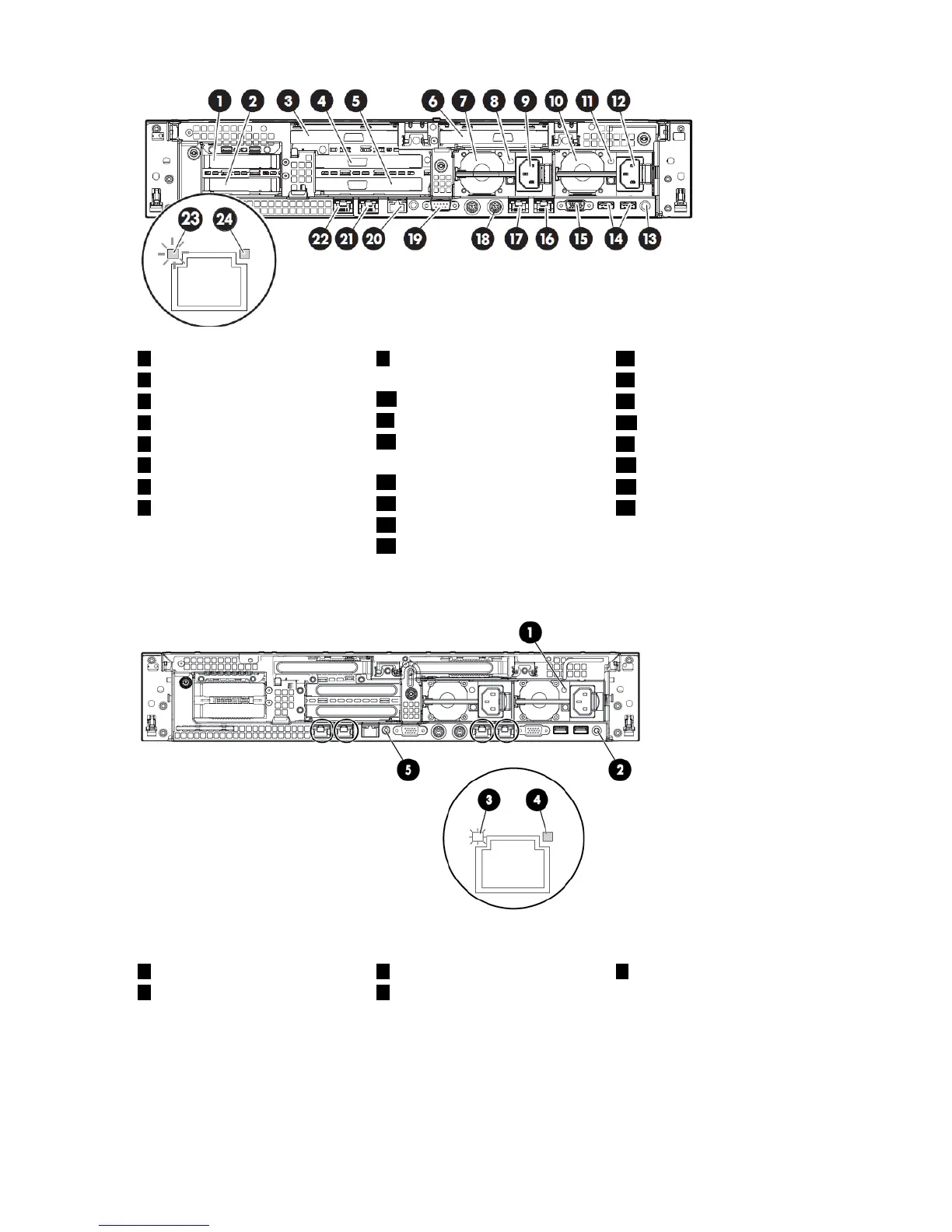

Figure 10 Rear panel components
17
NIC 2 connector
9
Power supply 2 power
connector
1
PCI 5
2 18
PCI 6 Physical presence
10
Power supply 1
3 19
PCI 4 Serial connector
11
Power supply 1 LED
4 20
PCI 2 iLO 3 connector
12
Power supply 1 power
connector
5 21
PCI 3 NIC 3 connector
6 22
PCI 1 NIC 4 connector
13
UID LED button
7 23
Power supply 2 NIC link LED
14
USB connectors (2)
8 24
Power supply 2 LED NIC activity LED
15
Video connector
16
NIC 1 connector
Figure 11 Rear panel LEDs and buttons
53
NIC link LED
1
Power supply LED iLO 3 physical presence
button
42
NIC activity LEDUID LED/button
20 Overview

HP Integrity rx2800 - i2 Specifications

General

Number of Processors	1 or 2
Expansion Slots	6 PCI-X slots
RAID Support	Yes
Network Controller	Integrated dual Gigabit Ethernet
Operating Systems	HP-UX, Linux, Windows Server
Form Factor	2U rackmount
Storage	Up to 1.8TB
Network	Ethernet
