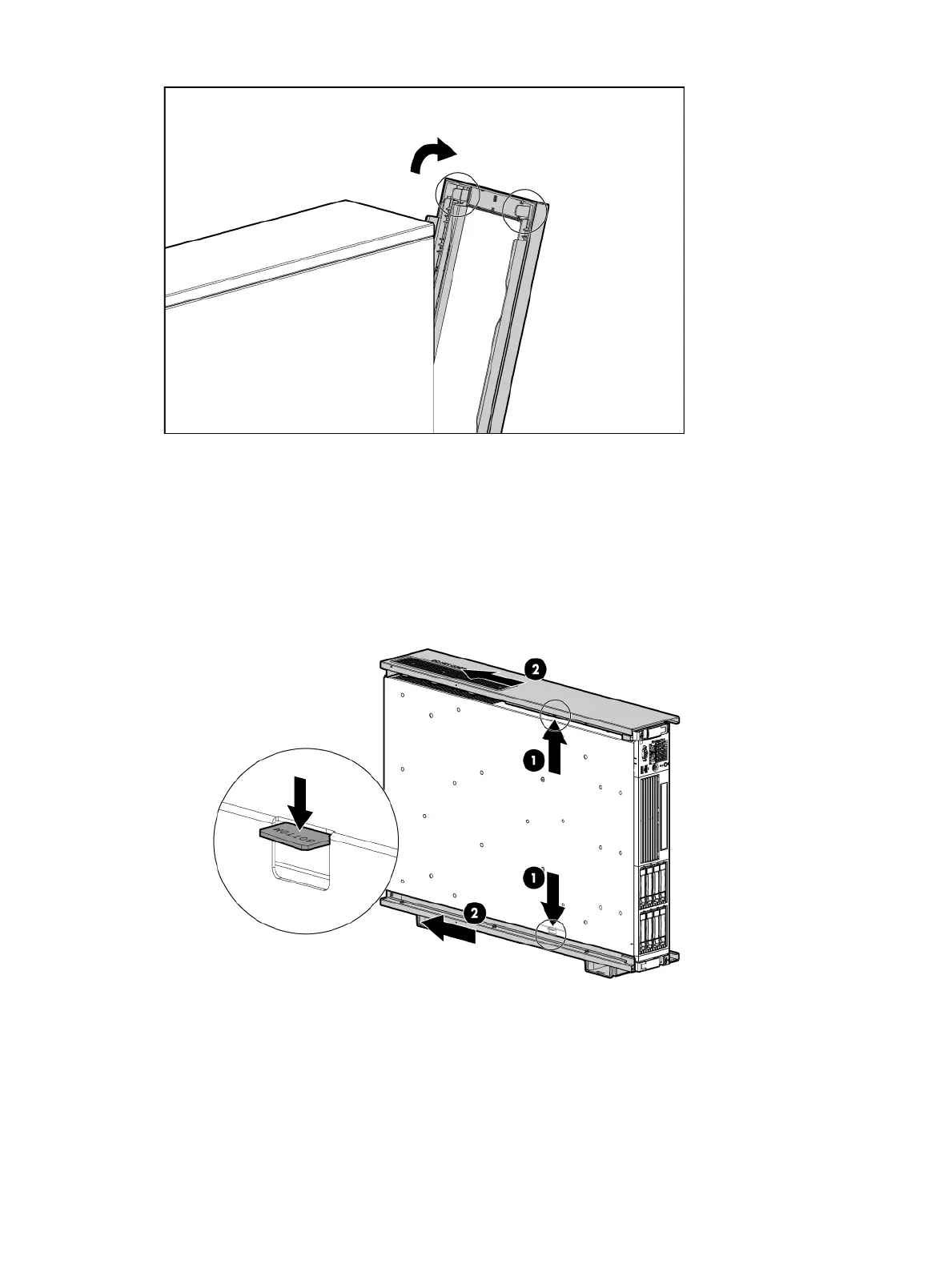

Figure 35 Removing the bezel cover
4. Remove the pedestal top piece.
a. With the server still in the vertical position, look at the left side of the server (server bottom)
to locate the lock release tab.
b. Press the lock release tab on the pedestal top piece away from the chassis to unlock the
pedestal top piece from the server. See Figure 36 for the pedestal top and bottom piece
lock release locations.
Figure 36 Removing the pedestal top piece
c. Slide the pedestal top piece toward the back of the server to release it from the server.
d. Once the pedestal component has moved about 1/4 inch, the lock releases, and you
can release the tab.
e. Pull the pedestal kit top piece away from the server.
f. Repeat these steps for the bottom piece.
HP Confidential102 Removal and replacement procedures

HP integrity rx2800 i4 Specifications

General

Number of Processors	1 or 2
Memory Slots	24 DIMM slots
Processor Cores	4 or 8 per processor
Cache	32 MB L3 per processor
Memory	Up to 384 GB DDR3
Storage	Up to 8 SFF SAS/SATA drives
RAID Support	RAID 0, 1, 5, 6
Network	Integrated 10/100/1000Base-T Ethernet
Network Controller	HP NC382i
Expansion Slots	6 PCIe 2.0 slots
Power Supply	Hot-plug redundant power supplies
Operating Systems	HP-UX, Linux
Form Factor	2U Rack
Processor Speed	1.73 GHz, 2.13 GHz, or 2.53 GHz
