8. If the processor is not being replaced, install a processor baffle (“Removing and replacing the
processor baffle” (page 116)).
CAUTION: To avoid damage to processor socket pins and ensure proper system cooling,
install a processor baffle in an empty processor socket.

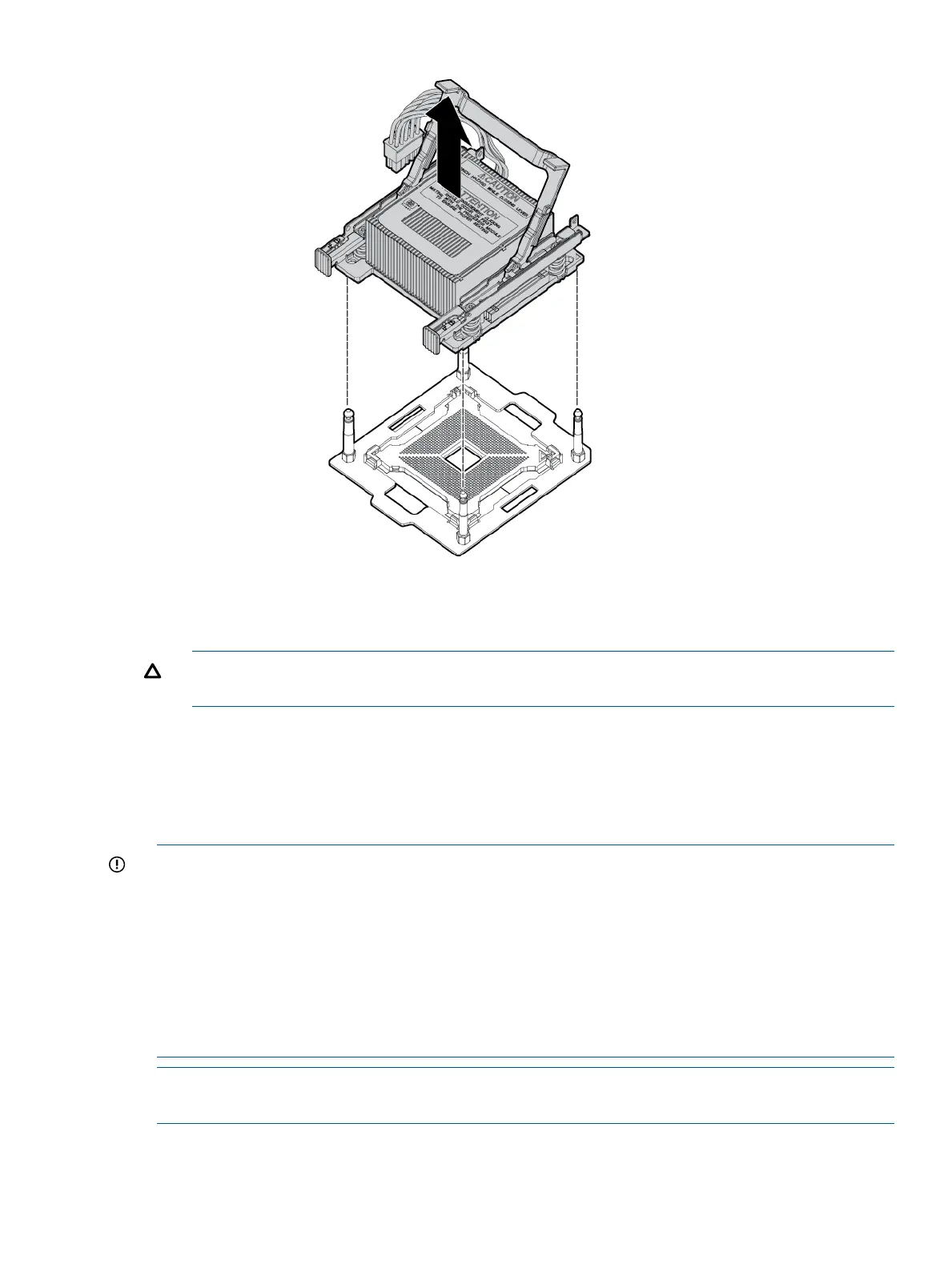

To replace a processor that is not defective, reverse the removal procedure.
The replacement processor module is shipped from HP without a heat sink. You will need to order
and attach a heat sink to the processor module before installing them for repair.
For more information on the installation procedure, see “Installing a processor and heat sink
module” (page 51) .
IMPORTANT:
• DO NOT SEPARATE THE PROCESSOR FROM THE HEAT SINK FOR A DEFECTIVE MATERIAL
RETURN. The heat sink and processor must be returned as a unit to facilitate testing and root
cause analysis.
• Do not discard your heat sink packaging or processor ESD bag. Reuse this packaging to
return any exchange material.
• You MUST use a new heat sink with an undisturbed thermal interface for processor installation.
• To receive credit for returning defective material, make sure to include the processor paperwork.
NOTE: After replacing the processor and heat sink module use the cpuconfig from UEFI to
verify the that the processor socket has been reconfigured.
HP Confidential Removing and replacing a processor and heat sink module 119
