HP MSR2003 User Manual

132

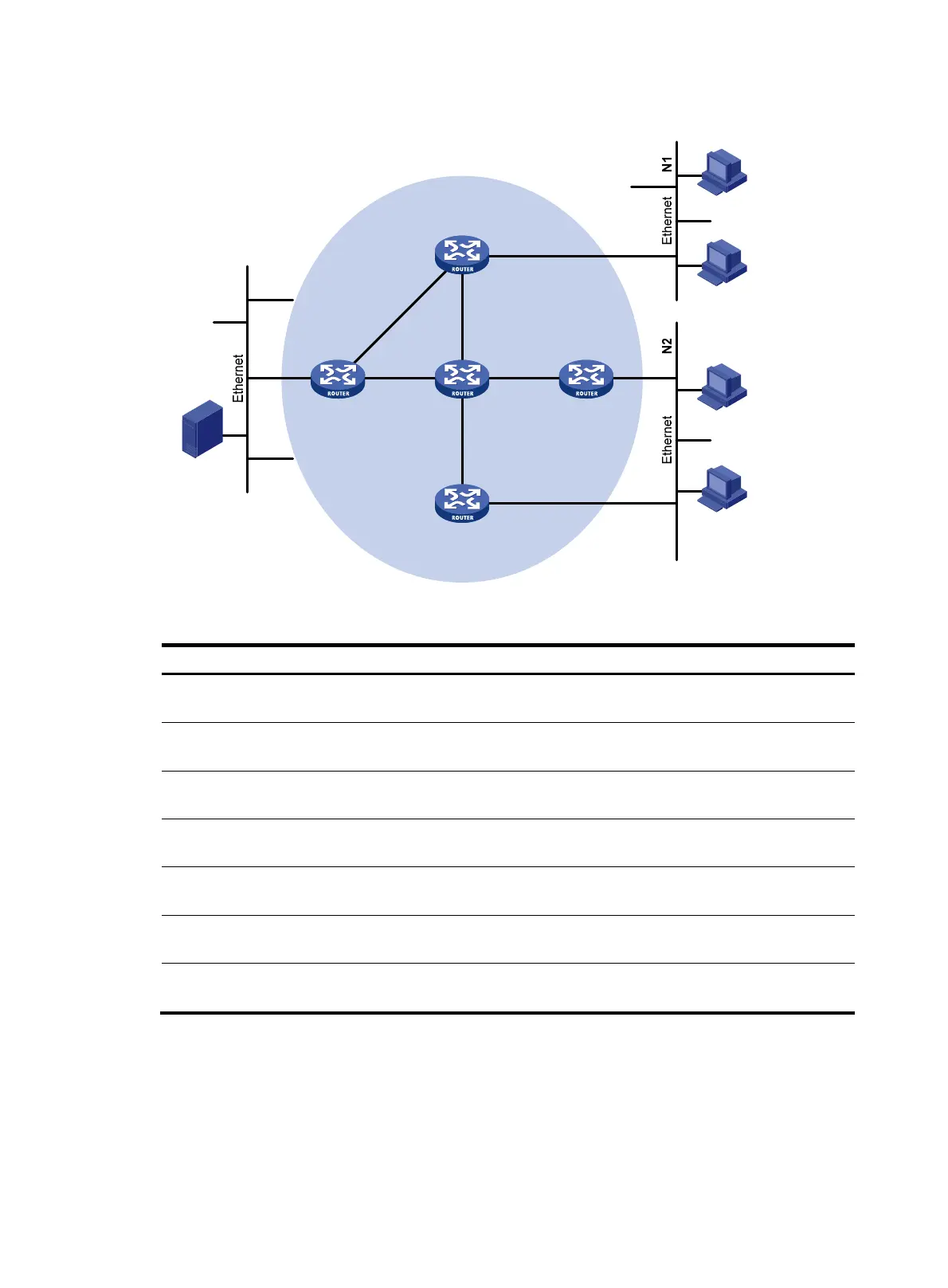

Figure 47 Network diagram
Table 11 Interface and IP address assignment
Device Interface IP address
Device Interface IP address
Router A
GigabitEthernet
2/1/1
10.110.1.1/24 Router D
GigabitEthernet
2/1/1
10.110.5.1/24
Router A
GigabitEthernet
2/1/2
192.168.1.1/24 Router D
GigabitEthernet
2/1/2
192.168.1.2/24
Router A
GigabitEthernet
2/1/3
192.168.9.1/24 Router D
GigabitEthernet
2/1/3
192.168.4.2/24
Router B
GigabitEthernet
2/1/1
10.110.2.1/24 Router E
GigabitEthernet
2/1/1
192.168.3.2/24
Router B
GigabitEthernet
2/1/2
192.168.2.1/24 Router E
GigabitEthernet
2/1/2
192.168.2.2/24
Router C
GigabitEthernet
2/1/1
10.110.2.2/24 Router E
GigabitEthernet
2/1/3
192.168.9.2/24
Router C
GigabitEthernet
2/1/2
192.168.3.1/24 Router E
GigabitEthernet
2/1/4
192.168.4.1/24
Configuration procedure
1. Assign an IP address and subnet mask to each interface according to Figure 47. (Details not
shown.)
2. Configure OSPF on the routers in the PIM-SSM domain to make sure the following conditions are
met: (Details not shown.)
{ The routers are interoperable at the network layer.
Source
10.110.5.100/24
PIM-SSM
Router A
Router B
Router C
Router D
Receiver
Host A
Host B
Host C
Host D
Receiver
Router E
GE2/1/1
GE2/1/1
GE2/1/1
GE2/1/1
GE2/1/3
GE2/1/3
GE2/1/2GE2/1/2
GE2/1/2
GE2/1/2
GE2/1/2
GE2/1/1
GE2/1/4
GE2/1/3
