HP MSR2003 User Manual

152

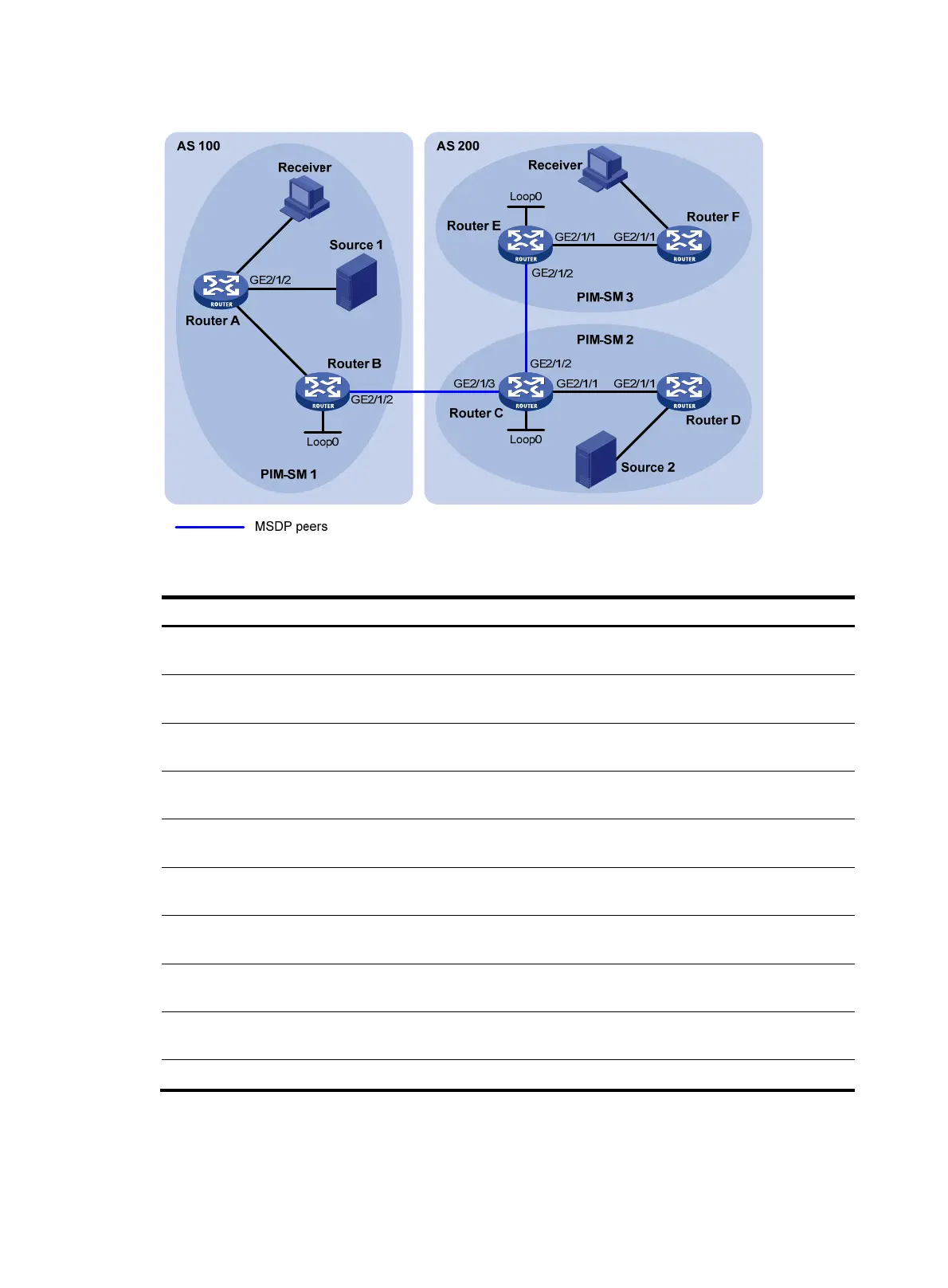

Figure 52 Network diagram
Table 12 Interface and IP address assignment
Device Interface IP address
Device Interface IP address
Router A
GigabitEthernet
2/1/1
10.110.1.2/24 Router D
GigabitEthernet
2/1/1
10.110.4.2/24
Router A
GigabitEthernet
2/1/2
10.110.2.1/24 Router D
GigabitEthernet
2/1/2
10.110.5.1/24
Router A
GigabitEthernet
2/1/3
10.110.3.1/24 Router E
GigabitEthernet
2/1/1
10.110.6.1/24
Router B
GigabitEthernet
2/1/1
10.110.1.1/24 Router E
GigabitEthernet
2/1/2
192.168.3.2/24
Router B
GigabitEthernet
2/1/2
192.168.1.1/24 Router E Loopback 0 3.3.3.3/32
Router B Loopback 0 1.1.1.1/32 Router F
GigabitEthernet
2/1/1
10.110.6.2/24
Router C
GigabitEthernet
2/1/1
10.110.4.1/24 Router F
GigabitEthernet
2/1/2
10.110.7.1/24
Router C
GigabitEthernet
2/1/2
192.168.3.1/24 Source 1 —
10.110.2.100/2
4
Router C
GigabitEthernet
2/1/3
192.168.1.2/24 Source 2 —
10.110.5.100/2
4
Router C Loopback 0 2.2.2.2/32
Configuration procedure
1. Assign an IP address and subnet mask to each interface according to Figure 52. (Details not
shown.)
G
E2/
1
/1
GE2/
1/1
G
E2
/1/3
GE2/
1/2
GE2/1
/2
