HP MSR2003

166

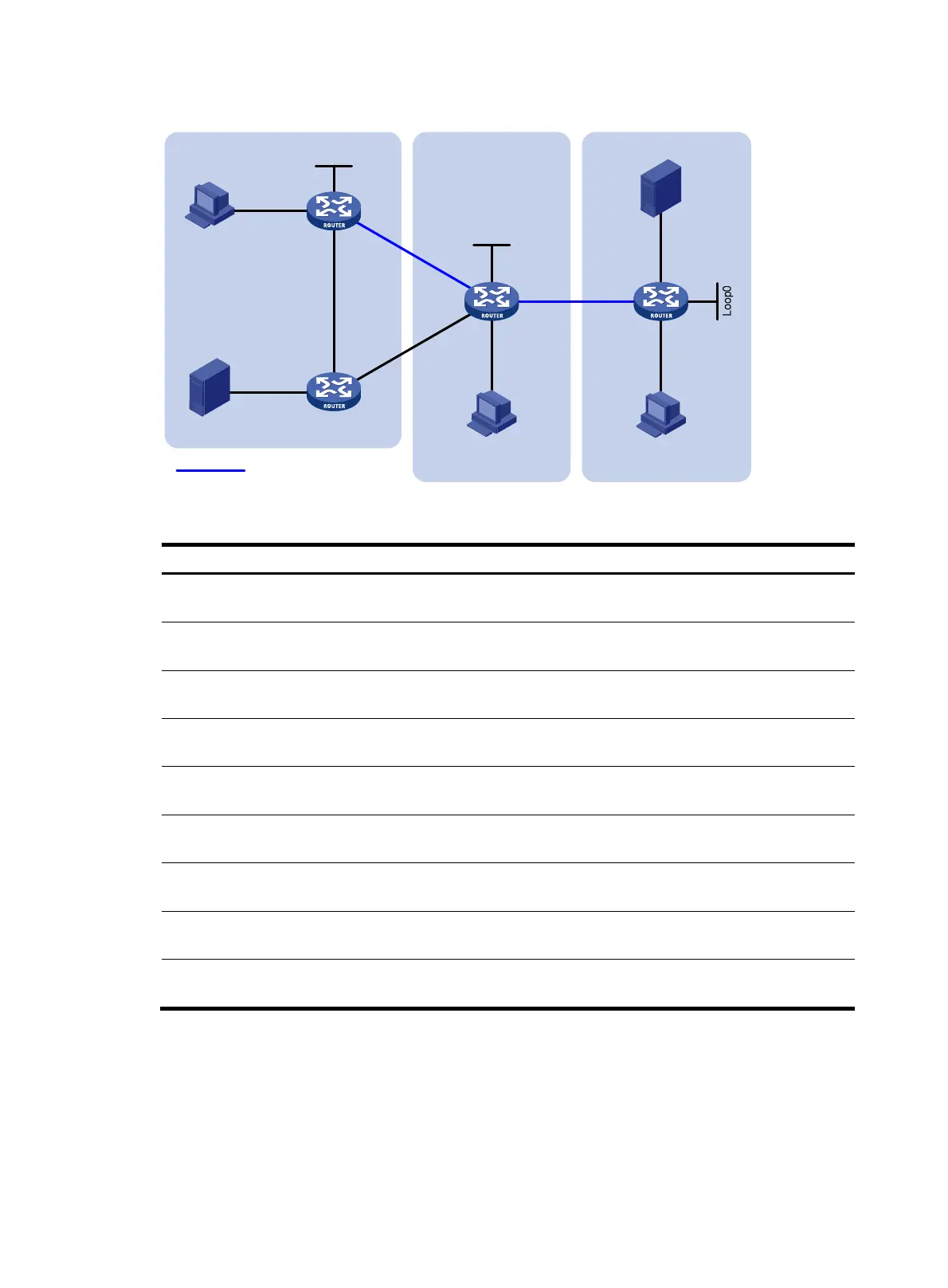

Figure 55 Network diagram
Table 15 Interface and IP address assignment
Device Interface IP address
Device Interface IP address
Source 1 — 10.110.3.100/24 Router C
GigabitEthernet
2/1/1
10.110.4.1/24
Source 2 — 10.110.6.100/24 Router C
GigabitEthernet
2/1/2
10.110.5.1/24
Router A
GigabitEthernet
2/1/1
10.110.1.1/24 Router C
GigabitEthernet
2/1/3
192.168.1.2/24
Router A
GigabitEthernet
2/1/2
10.110.2.1/24 Router C
GigabitEthernet
2/1/4
192.168.2.2/24
Router A
GigabitEthernet
2/1/3
192.168.1.1/24 Router C Loopback 0 2.2.2.2/32
Router A Loopback 0 1.1.1.1/32 Router D
GigabitEthernet
2/1/1
10.110.6.1/24
Router B
GigabitEthernet
2/1/1
10.110.3.1/24 Router D
GigabitEthernet
2/1/2
10.110.7.1/24
Router B
GigabitEthernet
2/1/2
10.110.2.2/24 Router D
GigabitEthernet
2/1/3
10.110.5.2/24
Router B
GigabitEthernet
2/1/3
192.168.2.1/24 Router D Loopback 0 3.3.3.3/32
Configuration procedure
1. Assign an IP address and subnet mask to each interface according to Figure 55. (Details not
shown.)
2. Configure OSPF on the routers in the PIM-SM domains to make sure the following conditions are
met: (Details not shown.)
{ The routers are interoperable at the network layer.
MSDP peers
PIM-SM 1 PIM-SM 2 PIM-SM 3
Loop0
Loop0
Source 1
Source 2
Receiver
Host B
Receiver
Host C
Receiver
Host A
GE2/1/1
GE2/1/1
GE2/1/1 GE2/1/2
GE2/1/2
GE2/1/2
GE
2
/
1
/
3
GE
2
/
1
/
3
GE
2
/
1
/
3
G
E
2
/
1
/
4
GE2/1/2
GE2/1/3
GE2/1/1
Router A
Router C
Router D
Router B
