237

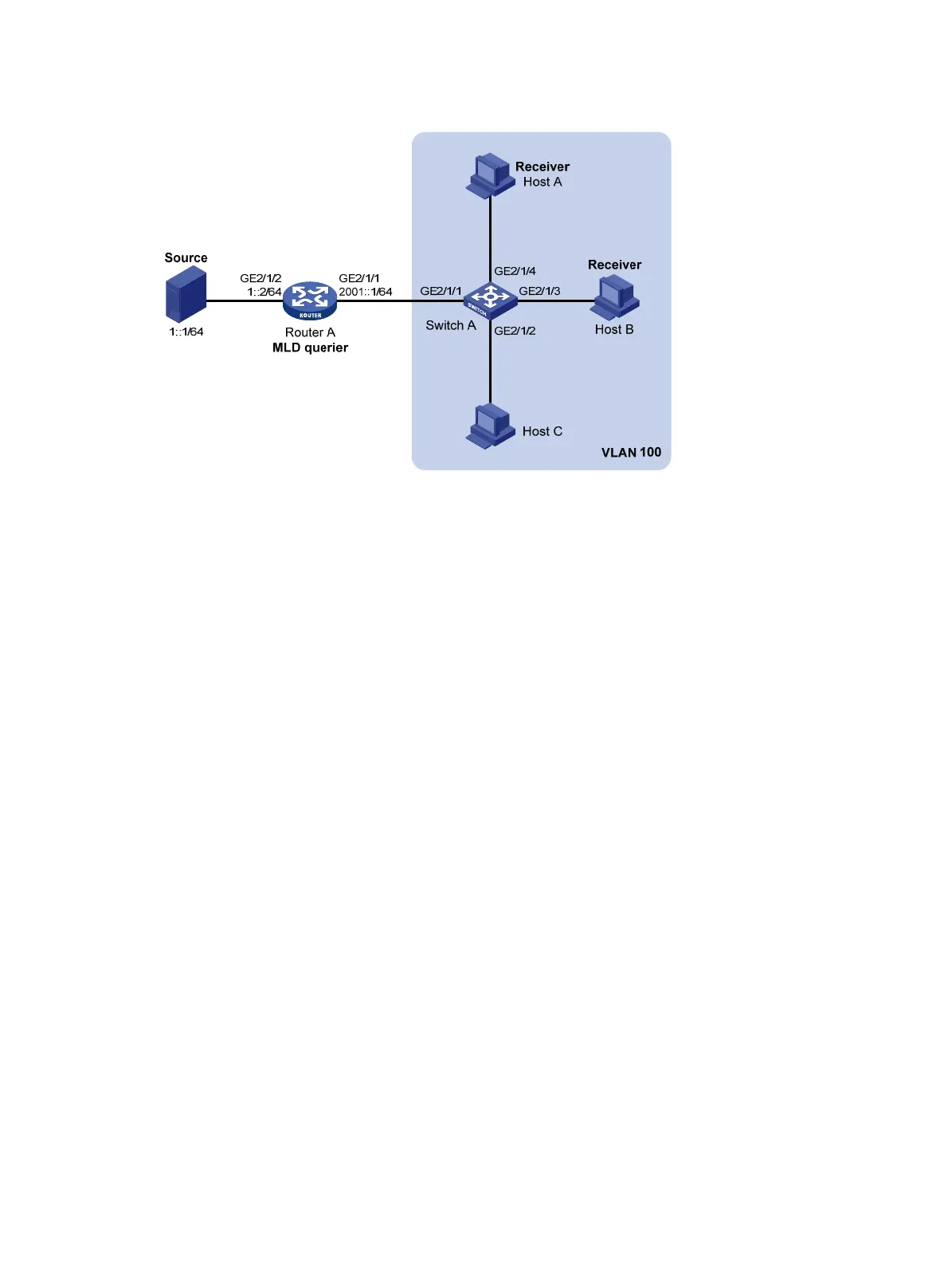

Figure 70 Network diagram

Configuration procedure

1. Assign an IPv6 address and prefix length to each interface according to Figure 70. (Details not

shown.)

2. Configure Router A:

# Enable IPv6 multicast routing.

<RouterA> system-view

[RouterA] ipv6 multicast routing

[RouterA-mrib6] quit

# Enable MLD on GigabitEthernet 2/1/1.

[RouterA] interface gigabitethernet 2/1/1

[RouterA-GigabitEthernet2/1/1] mld enable

[RouterA-GigabitEthernet2/1/1] quit

# Enable IPv6 PIM-DM on GigabitEthernet 2/1/2.

[RouterA] interface gigabitethernet 2/1/2

[RouterA-GigabitEthernet2/1/2] ipv6 pim dm

[RouterA-GigabitEthernet2/1/2] quit

3. Configure Switch A:

# Enable MLD snooping globally.

<SwitchA> system-view

[SwitchA] mld-snooping

[SwitchA-mld-snooping] quit

# Create VLAN 100, assign GigabitEthernet 2/1/1 through GigabitEthernet 2/1/4 to the VLAN,

and enable MLD snooping and dropping IPv6 unknown multicast data for the VLAN.

[SwitchA] vlan 100

[SwitchA-vlan100] port gigabitethernet 2/1/1 to gigabitethernet 2/1/4

[SwitchA-vlan100] mld-snooping enable

[SwitchA-vlan100] mld-snooping drop-unknown

[SwitchA-vlan100] quit
