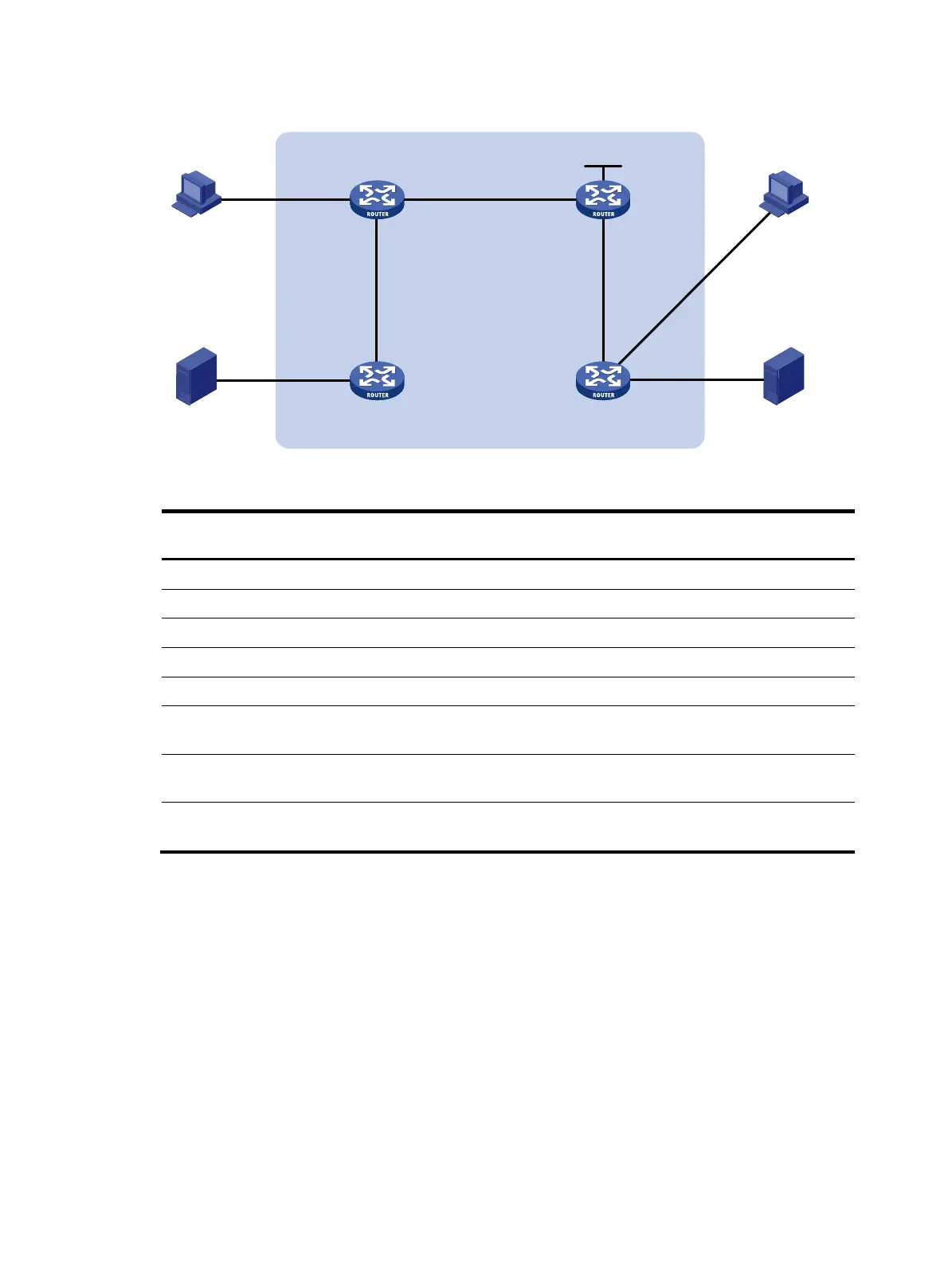

Figure 100 Network diagram
Table 24 Interface and IPv6 address assignment
Device Interface
IPv6
address
Device Interface IPv6 address
Router A GigabitEthernet 2/1/1 1001::1/64 Router D GigabitEthernet 2/1/1 4001::1/64
Router A GigabitEthernet 2/1/2 1002::1/64 Router D GigabitEthernet 2/1/2 5001::1/64
Router B GigabitEthernet 2/1/1 2001::1/64 Router D GigabitEthernet 2/1/3 3001::2/64
Router B GigabitEthernet 2/1/2 1002::2/64 Source 1 — 1001::2/64
Router B GigabitEthernet 2/1/3 2002::1/64 Source 2 — 5001::2/64
Router C GigabitEthernet 2/1/1 2002::2/64
Receiver
1
— 2001::2/64
Router C GigabitEthernet 2/1/2 3001::1/64
Receiver
2
— 4001::2/64
Router C Loopback 0
6001::1/12
8
Configuration procedure
1. Assign an IPv6 address and prefix length to each interface according to Figure 100. (Details not
shown.)
2. Configure OSPFv3 on the routers in the IPv6 BIDIR-PIM domain to make sure the following
conditions are met: (Details not shown.)
{ The routers are interoperable at the network layer.
{ The routers can dynamically update their routing information.
3. Enable IPv6 multicast routing, IPv6 PIM-SM, IPv6 BIDIR-PIM, and MLD:
# On Router A, enable IPv6 multicast routing, enable IPv6 PIM-SM on each interface, and enable
IPv6 BIDIR-PIM.
<RouterA> system-view
[RouterA] ipv6 multicast routing
IPv6 BIDIR-PIM
Source 1 Source 2
Host A
Receiver 1
Router A
GE2/1/2
GE2/1/2
GE2/1/3 GE2/1/1
GE2/1/2
GE2/1/3
GE2/1/1
GE2/1/1
GE2/1/
1
GE2/1/2
Router D
Router C
Router B
Host B
Receiver 2
Loop0
