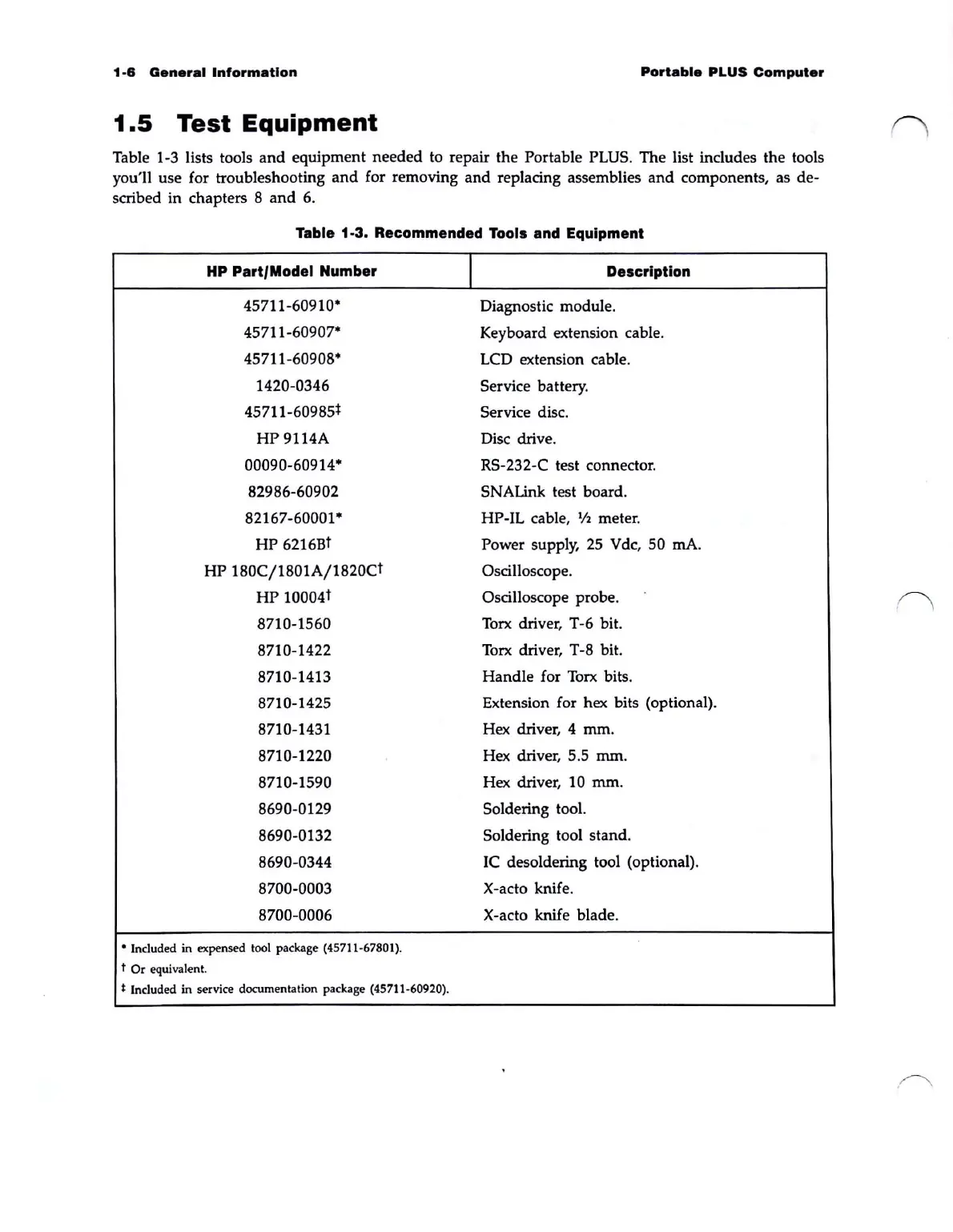

1.5 Test Equipment
Table 1-3 lists tools and equipment needed to repair the Portable PLUS. The list includes the tools
you'll use for troubleshooting
and for removing and replacing assemblies and components, as de-
scribed in chapters 8 and 6.
Table 1-3. Recommended Tools and Equipment
HP Part/Model Number
45711-60910·
45711-60907·
45711-60908·
1420-0346
45711-60985t
HP9114A
00090-60914·
82986-60902
82167-60001·
HP 6216Bt
HP 180C/1801A/1820Ct
HP 10004t
8710-1560
8710-1422
8710-1413
8710-1425
8710-1431
8710-1220
8710-1590
8690-0129
8690-0132
8690-0344
8700-0003
8700-0006
• Included in expensed tool package (45711-67801).
t Or equivalent.
* Included in service documentation package (45711-60920).
I
Description
Diagnostic module.
Keyboard extension cable.
LCD extension cable.
Service battery.
Service disc.
Disc drive.
RS-232-C test connector.
SNALink test board.
HP-IL cable,
1/2 meter.
Power supply,
25 Vdc, 50 rnA.
Oscilloscope.
Oscilloscope probe.
Torx driver, T -6 bit.
Torx driver, T -8 bit.
Handle for
Torx bits.
Extension for hex bits (optional).
Hex driver, 4 mm.
Hex driver, 5.5 mm.
Hex driver,
10 mm .
Soldering tool.
Soldering tool stand.
IC desoldering tool (optional).
X-acto knife.
X-acto knife blade.
