HP Portable PLUS - Removing the Battery Cover; Removing the Battery Terminal Cover

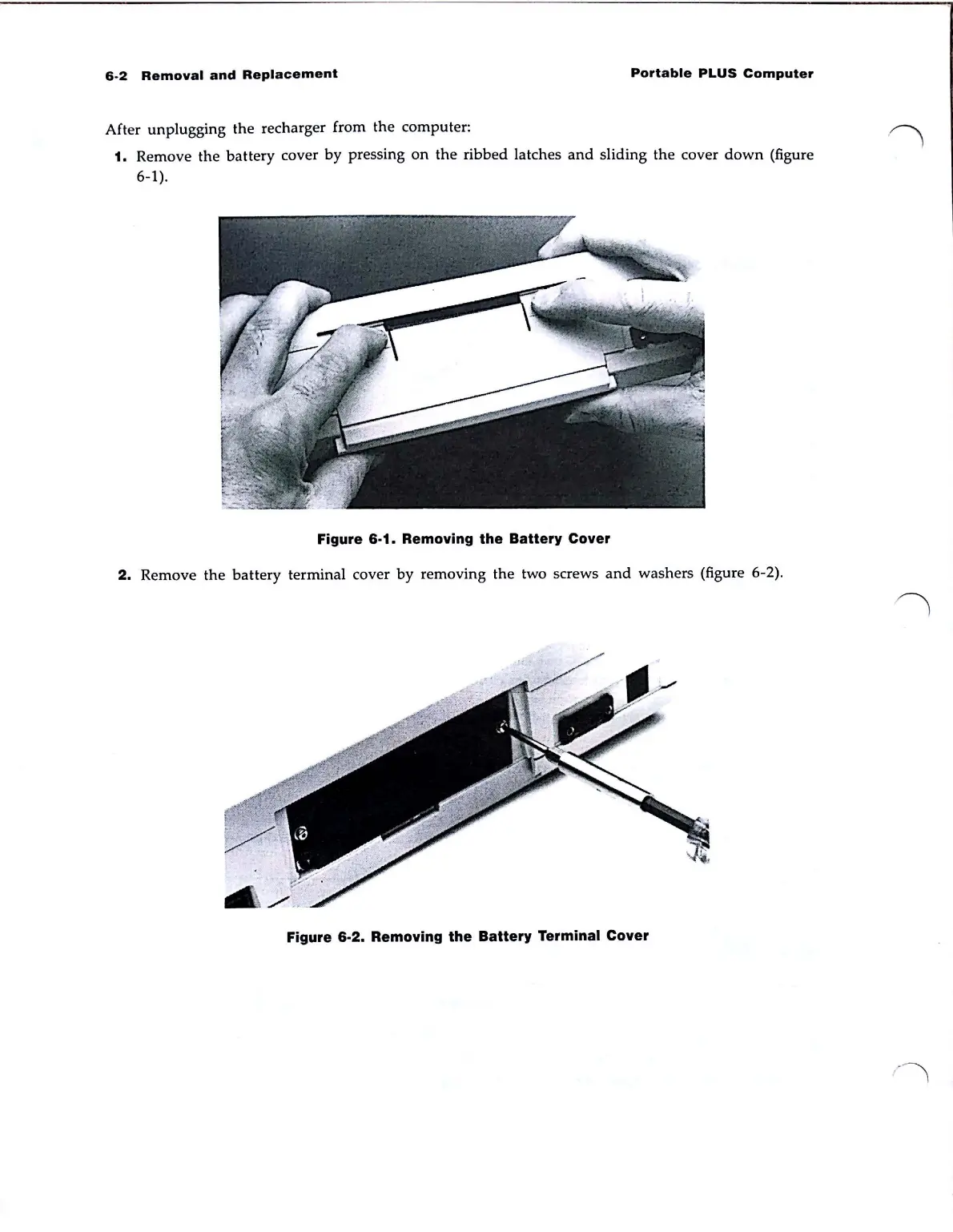

6-2 Removal and Replacement
Portable PLUS Computer
After unplugging the recharger from the computer:
1. Remove the battery cover by pressing on the ribbed latches and sliding the cover down (figure
6-1).
Figure 6·1. Removing the Battery Cover
2. Remove the battery terminal cover by removing the two screws and washers (figure 6-2).
Figure 6·2. Removing the Battery Terminal Cover
