2. Click VLS discovery utility.
The VLS discovery utility opens and lists all the devices it sees on the subnet (Figure 16).
The Configured box for a device is checked if the device has an IP address.
The device type, host name, IP address (if available), and serial number are displayed for each
device listed.

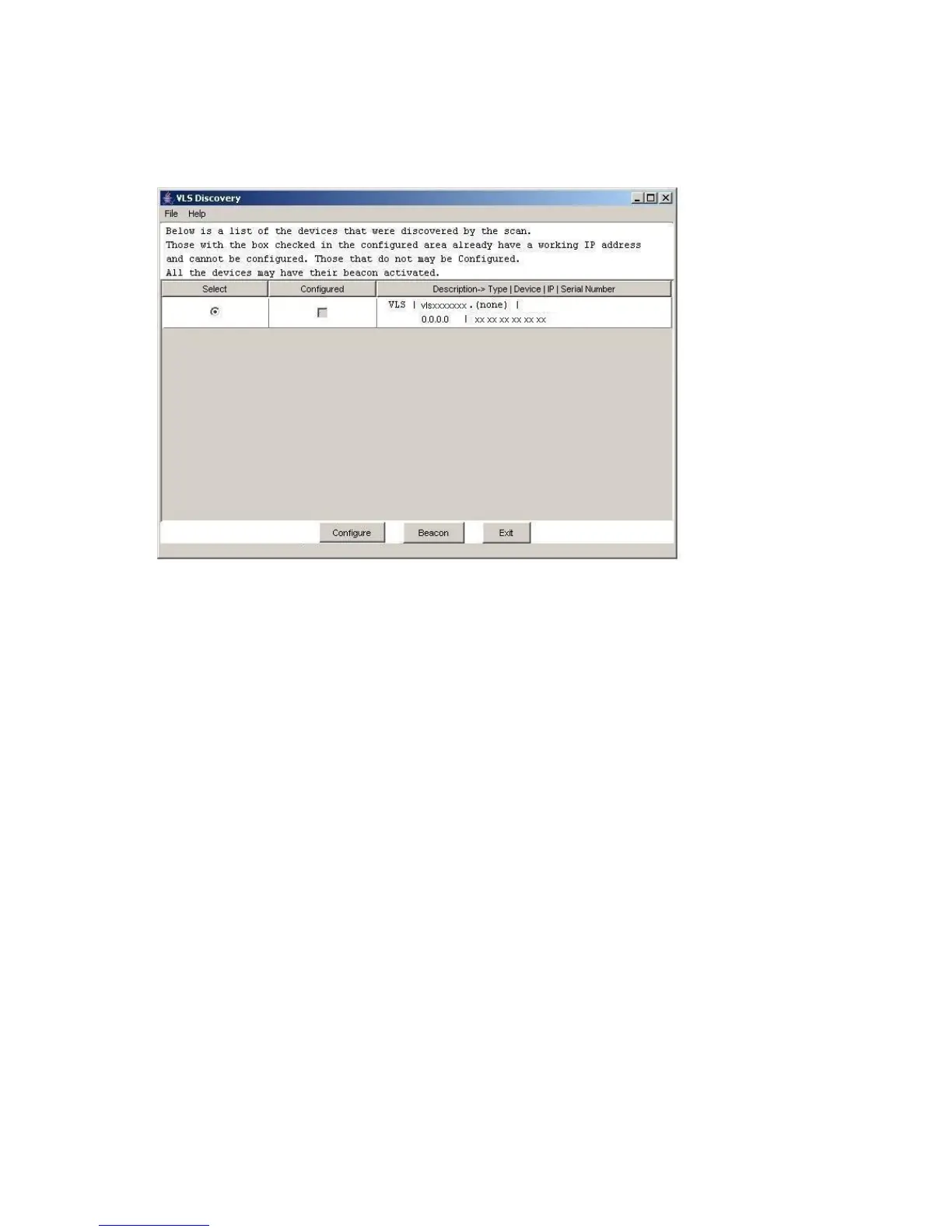

Figure 16 VLS discovery utility — main window
.
3. To visually identify a device listed, select the device from the list and click Beacon. This will
illuminate an LED on the device for the specified length of time.
In the case of the VLS, the UID LED button on the VLS node illuminates.
Configuration112
