StatusDescriptionItem
Displays port link information, network activity information, whether the port
is configured for full-duplex operation, or the speed of the connection,
depending on the LED Mode selected.
• If the Link (Lnk) indicator LED is lit, each port LED displays link information
for the associated port. If the port LED is in Link mode and it is blinking,
the port has failed its self test. The Fault and Self-Test LEDs will be blinking
simultaneously.
• If the Activity (Act) indicator LED is lit, each port LED displays activity in-
formation for the associated port — it flickers as network traffic is received
and transmitted through the port.
• If the Full Duplex (FDx) indicator LED is lit, the port LEDs light for those
ports that are operating in full duplex mode.
• If the Speed (Spd) indicator LED is lit, the port LEDs behave as follows to
indicate the connection speed for the port:
• OFF = 10 Mb/s
• Flashing = 100 Mb/s (the flashing behavior is a repeated on/off
cycle once every 0.5 sec.)
• ON = 1000 Mb/s
Port LEDs
(Green — overlaid
with the port
number)
9
For the dual-personality ports (ports 21 through 24), indicates which connector
is enabled:
• T = Indicates the 10/100/1000Base-T RJ-45 port is enabled.
• M = Indicates the mini-GBIC port is enabled.
T/M LEDs10
1
The blinking behavior is an on/off cycle once every 1.6 seconds, approximately.

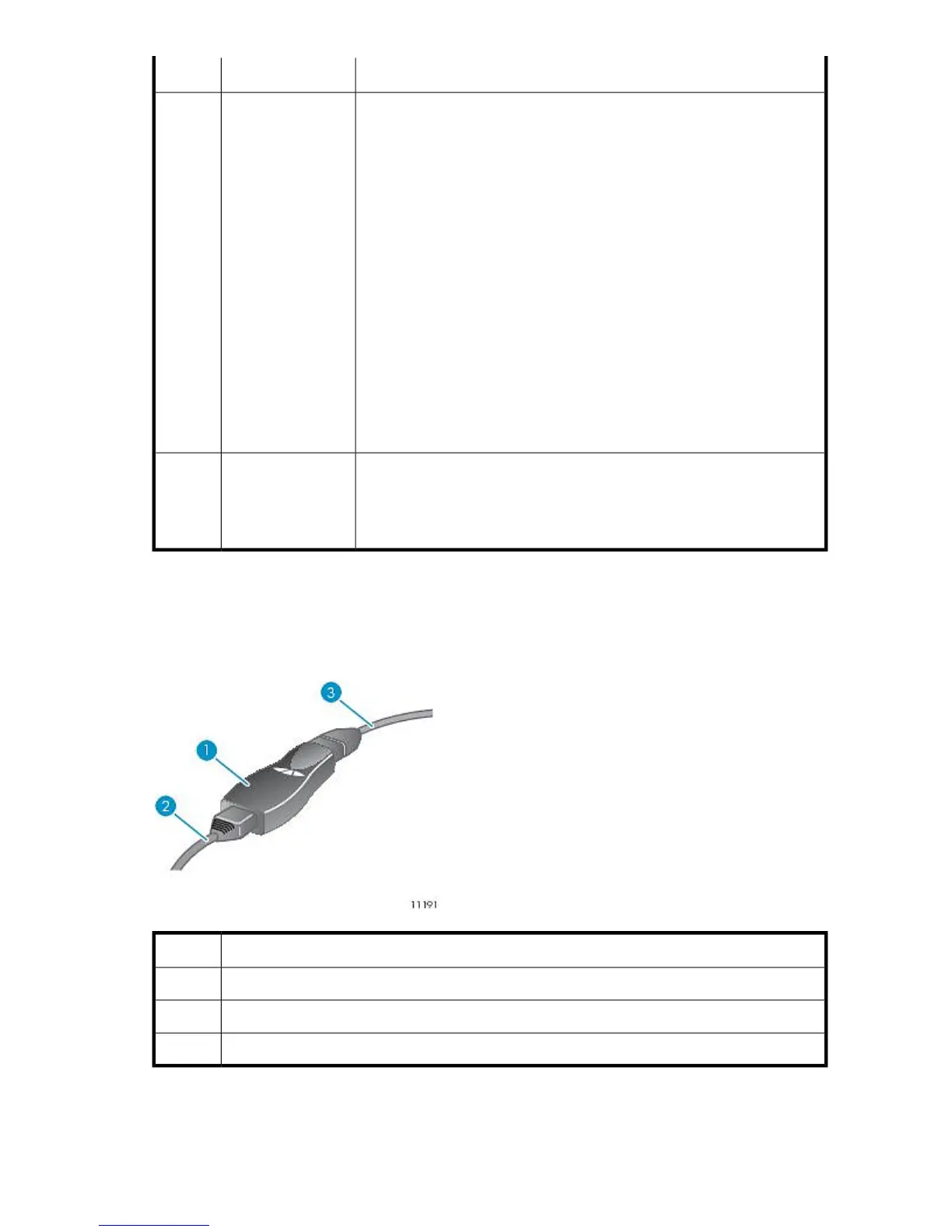

USB LAN Adapter Components
This section provides an image and description of the USB LAN adapter.
DescriptionItem
USB LAN adapter1
LAN cable2
USB cable3
HP StorageWorks 12000 Gateway Virtual Library System User Guide 193
