HP StorageWorks 12000 User Manual

Installing the Deduplication Licenses
The deduplication feature is a licensed option. The number of deduplication licenses must match or
exceed the number of capacity licenses (based on LTU) on the VLS device. See “Installing Additional
Licenses” on page 45 for installation instructions.
After installing the required deduplication licenses, the VLS automatically reboots. When the system
is back up, it first checks the standard capacity licenses and then the deduplication licenses. Once
the deduplication licenses are verified, the deduplication feature is automatically enabled for all
supported backup types.
No further setup is required. When the next backup begins, the deduplication process begins mapping
the content of that backup. After the second backup, the system delta-differences (compares) the two
backups and the deduplication proceeds.
You may choose to disable some backup types; see “Configuring Deduplication Options” on page
93 for details.
Configuring Deduplication Options
You can include or exclude specific backups or types of backup (e.g., server type) from the
deduplication process and choose the deduplication algorithm used.
NOTE:
These options are not available until you have installed the appropriate number of deduplication
licenses.
1. Select the System tab.
2. Expand Chassis on the navigation tree.
3. Expand Deduplication on the navigation tree.
4. Select Configuration from the navigation tree.
The Configuration screen displays. See Figure 14.

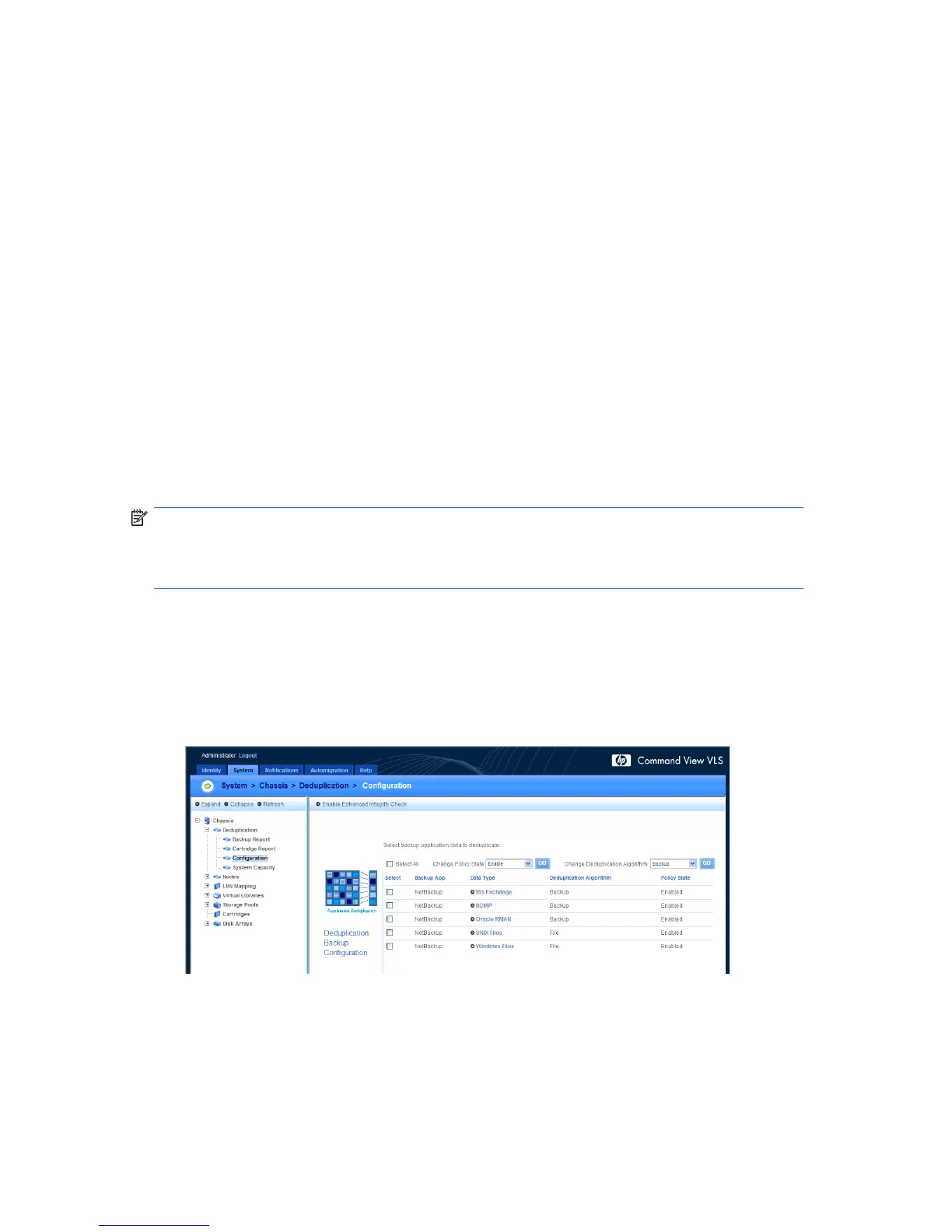

Figure 14 Configuring deduplication options
.
5. Select the data types to change.
HP StorageWorks 12000 Gateway Virtual Library System User Guide 93

HP StorageWorks 12000 Specifications

General

Product Name	HP StorageWorks 12000
Management Software	HP StorageWorks Command View
Form Factor	Rack-mountable
Type	Gateway
Category	Gateway
Connectivity	iSCSI
