4. On Ethernet Switch 2Switch 2510–24:

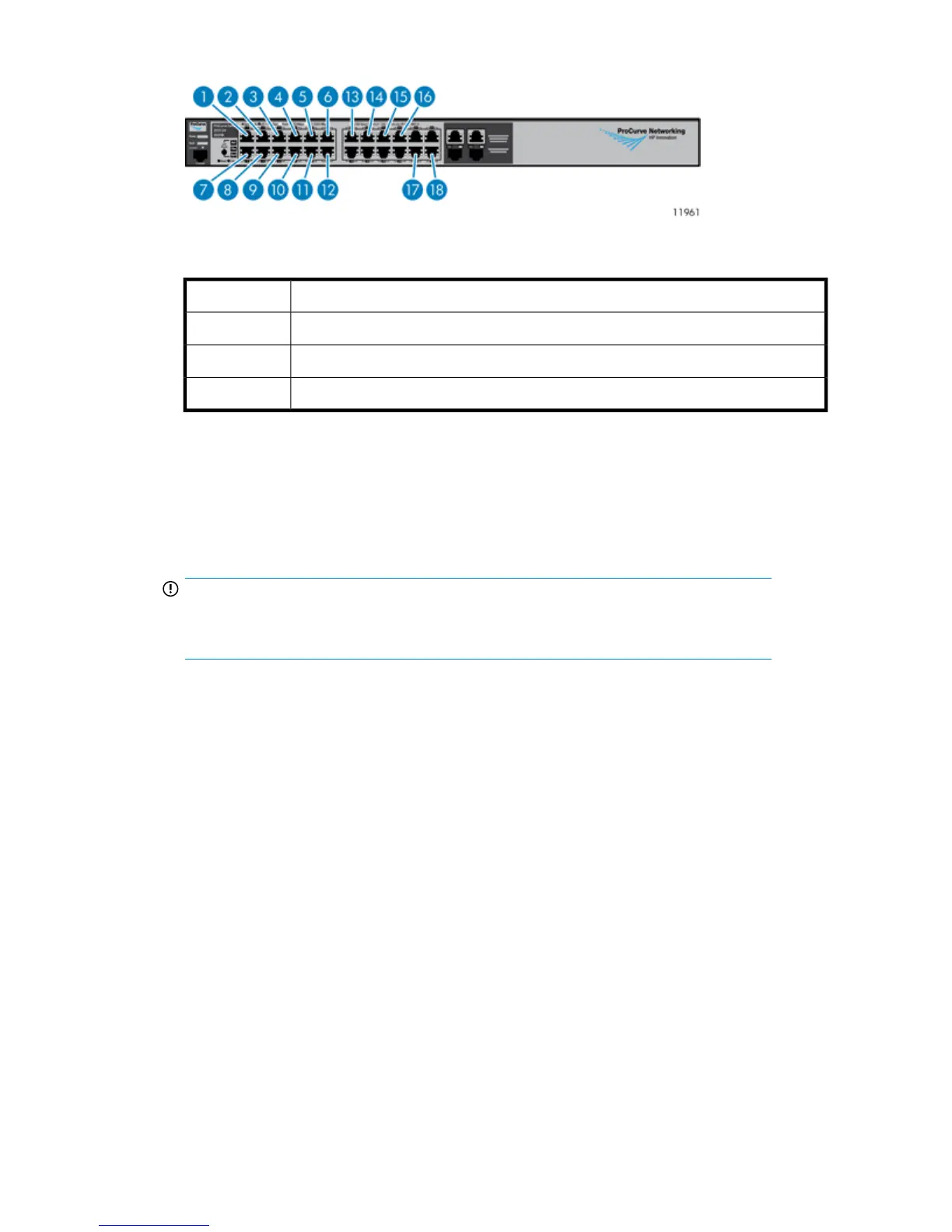

Figure 6 VLS12000 Ethernet Switch 2510–24 port cabling
.
Ethernet cable from USB adapter on primary node1
Ethernet cable from USB adapter on secondary nodes (if present)2—8
Not used with the VLS120009—17
Ethernet cable from port 24 of Ethernet Switch 2810–24G18
a. Ensure that the power cable is connected to the switch, as described in the racking instructions
(see Installing the 100 Mb Ethernet Switch 2510-24 into a Rack.
b. Ensure that the Ethernet cables from the NIC2 ports of each node are firmly set in the
appropriate ports on the switch.
c. Finish routing the cables through the cable ties that shipped with the racks.
IMPORTANT:
Ensure that the Ethernet cable from port 24 of Ethernet Switch 2510–24G is firmly connected
to port 24 of Ethernet Switch 2810–24G.
The VLS Gateway system hardware installation is complete. Continue installation by configuring the
identities of each node.
HP StorageWorks 12000 Gateway Virtual Library System User Guide 31
