DescriptionItem
10/100Base-TX RJ-45 Ethernet ports 1 through 24
(numbered from left to right, top to bottom)
2
10/100/1000–T dual-personality ports 25 and 263
mini—GBIC dual-personality ports 25 and 264

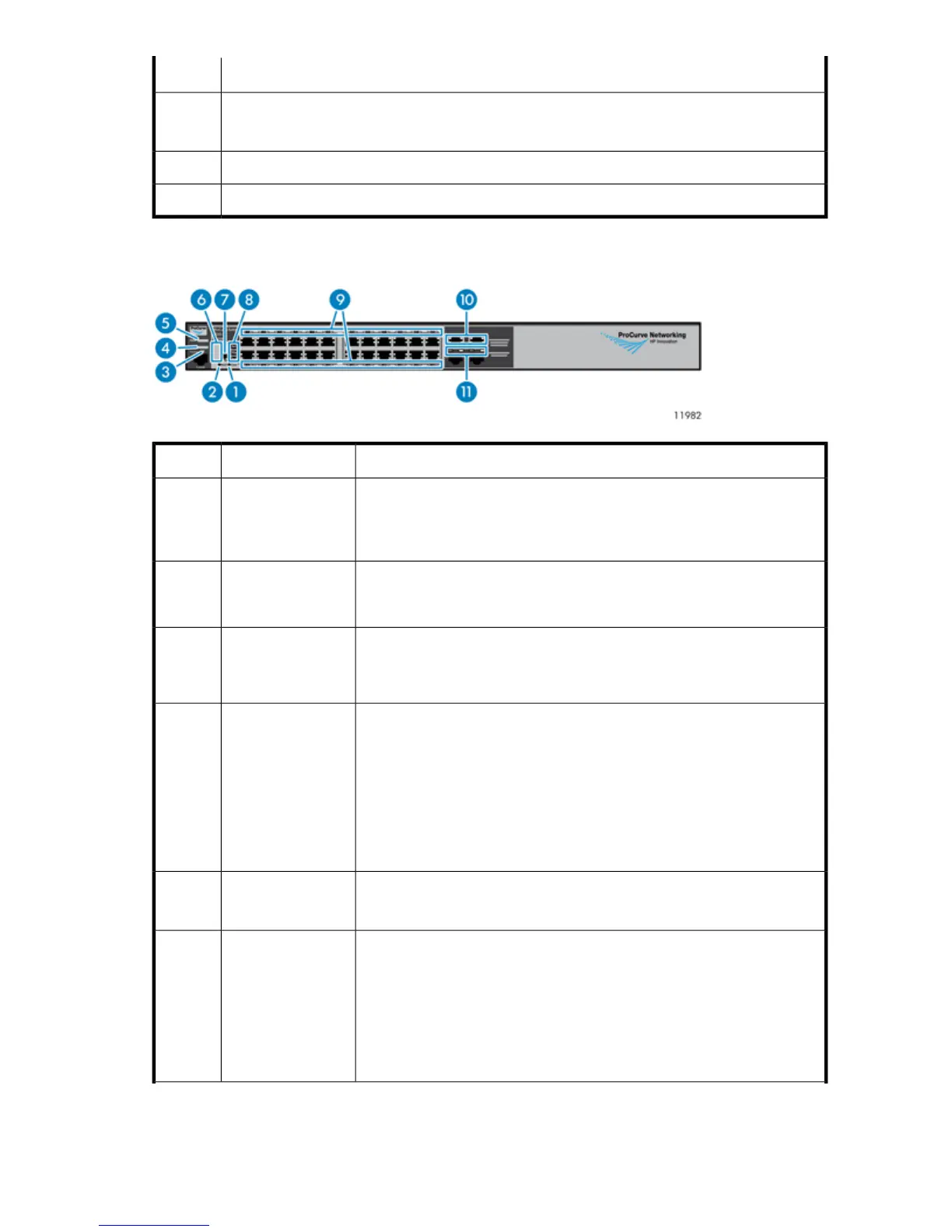

Front Panel LEDs and Buttons
StatusDescriptionItem
When pressed with the Reset button in a specific pattern, any configuration
changes you may have made through the switch console, the web browser
interface, and SNMP management are removed, and the factory default
configuration is restored to the switch.
Clear button1
Press to reset the switch while it is powered on. This action clears any tem-
porary error conditions that may have occurred and executes the switch self
test. Also resets all network activity counters to zero.
Reset button2
Blinking blue = Locate function is active. Firmware controlled, can be set to
on or blinking.
Off = Locate function is disabled.
Locator LED3
Orange = On briefly after the switch is powered on or reset, at the beginning
of switch self test. If this LED is on for a prolonged time, the switch has
encountered a fatal hardware failure, or has failed its self test.
Blinking orange
1
= A fault has occurred on the switch, one of the switch
ports, or the fan. The Status LED for the component with the fault will blink
simultaneously.
Off = The normal state; indicates that there are no fault conditions on the
switch.
Fault LED4
Green = The switch is receiving power.
Off = The switch is NOT receiving power.
Power LED5
Green = The switch self test and initialization are in progress after you have
power cycled or reset the switch. The switch is not operational until this LED
goes off.
Blinking green
1
= A component of the switch has failed its self test. The status
LED for that component, for example an RJ-45 port, and the switch Fault LED
will blink simultaneously.
Off = The normal operational state; the switch is not undergoing self test.
Self test LED6
HP StorageWorks 12000 Gateway Virtual Library System User Guide 189
