1. If you are already in the Create Library Wizard window, click Create Tape Drives.
The Tape Drive Parameters window opens.
2. If not:
a. Click the System tab.
b. Select the library in the navigation tree to which you want to add tape drives.
c. Click Create Tape Drive in the task bar.
The Tape Drive Parameters window opens (Figure 27).

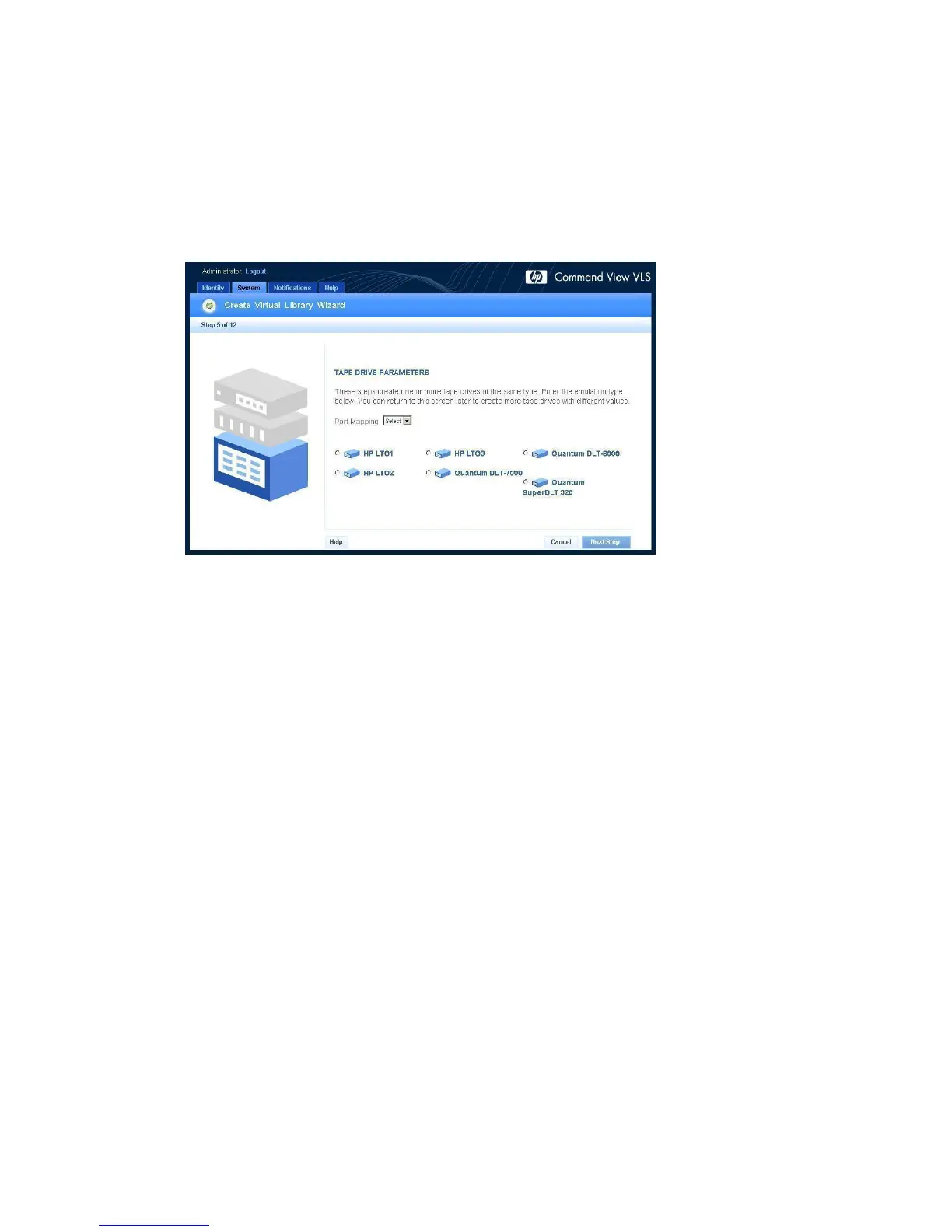

Figure 27 Create Virtual Library Wizard window (5 of 12)
.
3. Select the type of physical tape drive to emulate.
4. Enter the Fibre Channel host port and node on which to present the tape drives in the Port Mapping
box.
Only one port or port pair may be selected.
HP StorageWorks 12000 Gateway Virtual Library System User Guide 133

HP StorageWorks 12000 Specifications

General

Product Name	HP StorageWorks 12000
Management Software	HP StorageWorks Command View
Form Factor	Rack-mountable
Type	Gateway
Category	Gateway
Connectivity	iSCSI
