HP StorageWorks 12000 User Manual

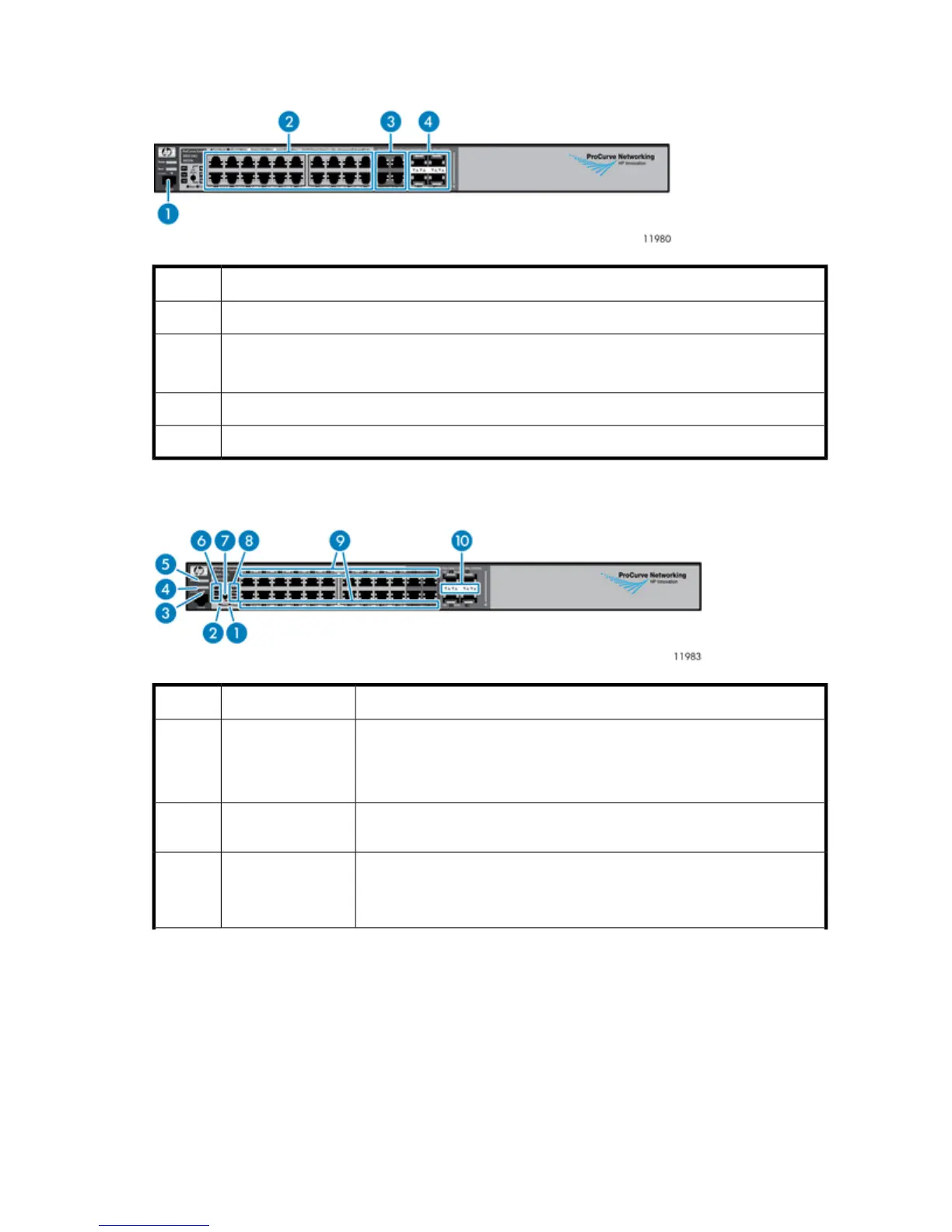

Front Panel Components
DescriptionItem
Console port1
10/100/1000Base-T RJ-45 ports 1 through 20
(numbered from top to bottom, left to right)
2
10/100/1000–T dual-personality ports 21 through 243
10/100/1000 mini-GBIC dual-personality ports 21 through 244
Front Panel LEDs and Buttons
StatusDescriptionItem
When pressed with the Reset button in a specific pattern, any configuration
changes you may have made through the switch console, the Web browser
interface, and SNMP management are removed, and the factory default
configuration is restored to the switch.
Clear button1
Used to reset the switch while it is turned on. This action clears any temporary
error conditions that may have occurred and executes the switch self-test.
Reset button2
Blinking blue = Locate function is active. Firmware controlled, can be set to
on or blinking.
Off = Locate function is disabled.
Locator LED3
HP StorageWorks 12000 Gateway Virtual Library System User Guide 191

HP StorageWorks 12000 Specifications

General

Product Name	HP StorageWorks 12000
Management Software	HP StorageWorks Command View
Form Factor	Rack-mountable
Type	Gateway
Category	Gateway
Connectivity	iSCSI
