Installing the VLS12000 Node into a Rack
The components of the VLS12000 Gateway are connected with 1 meter cables. Install the components
close enough in the rack to accommodate the cable lengths. HP recommends the following racking
configuration installed from bottom to top:
Figure 2 Recommended rack configuration
.
DescriptionItem
Ethernet Switch 2810–24G (1 Gb)1
Ethernet Switch 2510–24 (100 Mb)2
Node 0, primary node3
Node 1, secondary node4
NOTE:
If you are installing the node into a telco rack, order the appropriate option kit at the RackSolutions.com
web site: http://www.racksolutions.com/hp. Follow the instructions on the web site to install the rack
brackets.

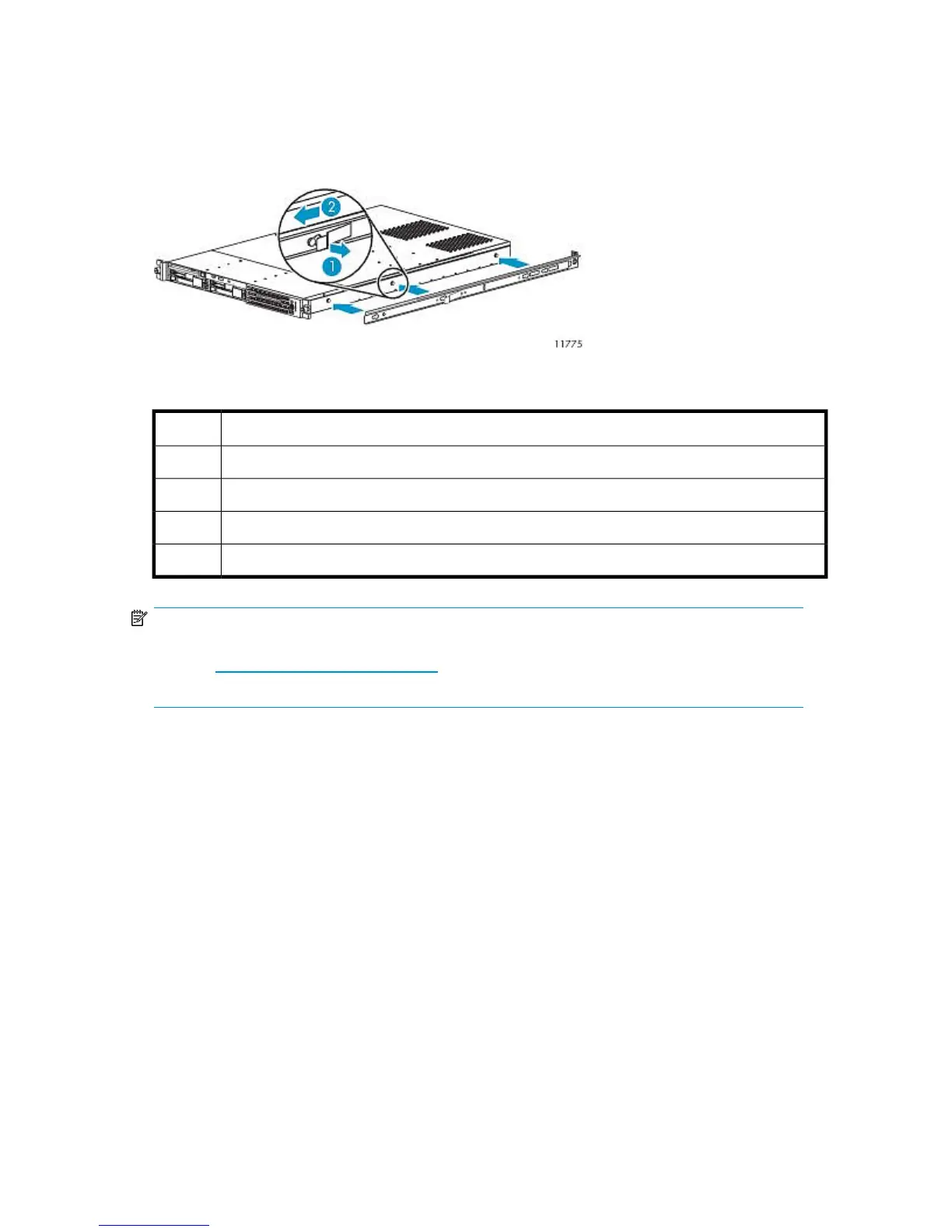

Install the node in the rack as follows:
HP StorageWorks 12000 Gateway Virtual Library System User Guide 25
