4. Lift the drive release latch at the green touch point , and then gently slide the drive out of the
chassis
2
as shown in the following figure.

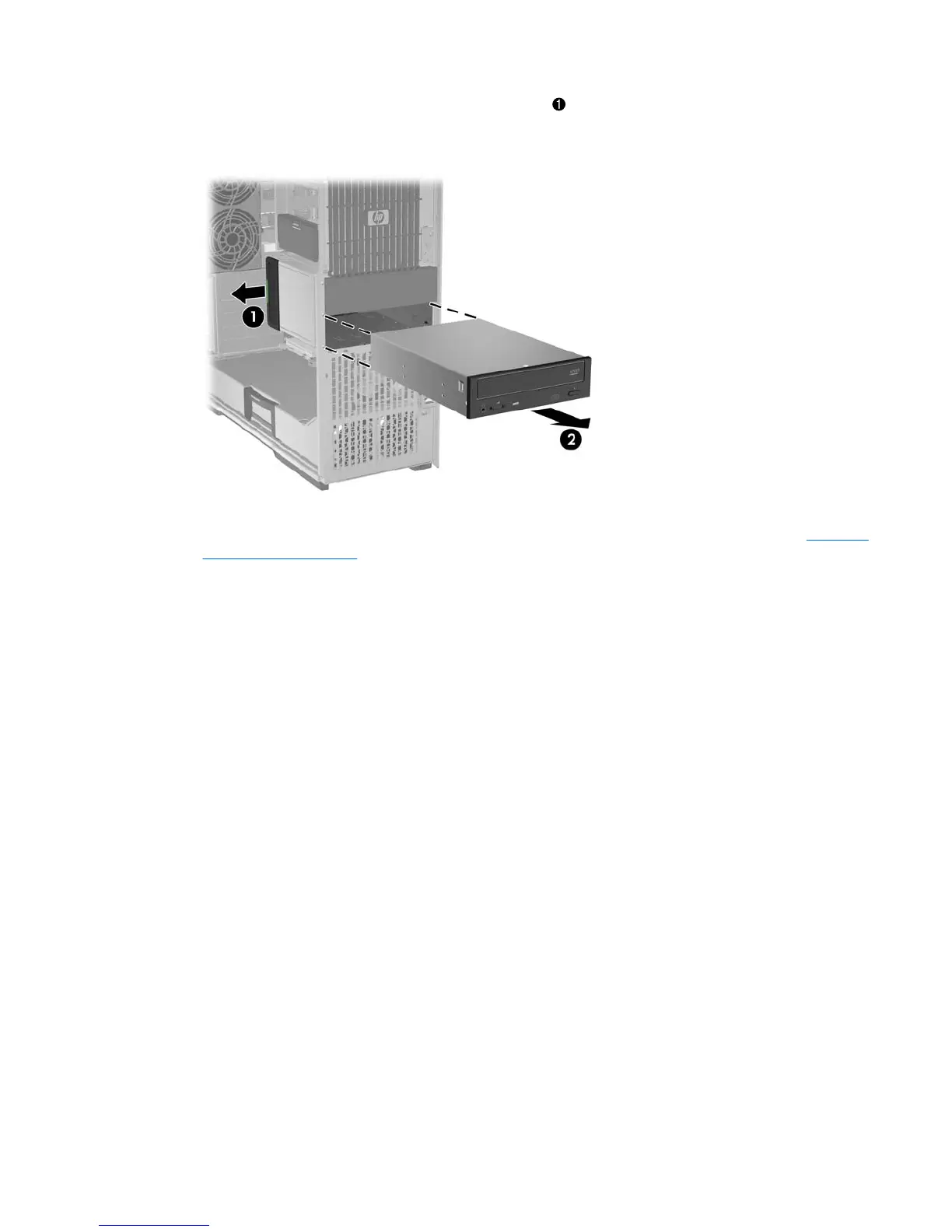

Figure 5-23 Removing the optical disk drive
5. If you are not installing another optical disk drive, add a filler tray to the empty bay slot (see Installing
a filler tray on page 91).
ENWW Removing and installing components 93
