Chassis components

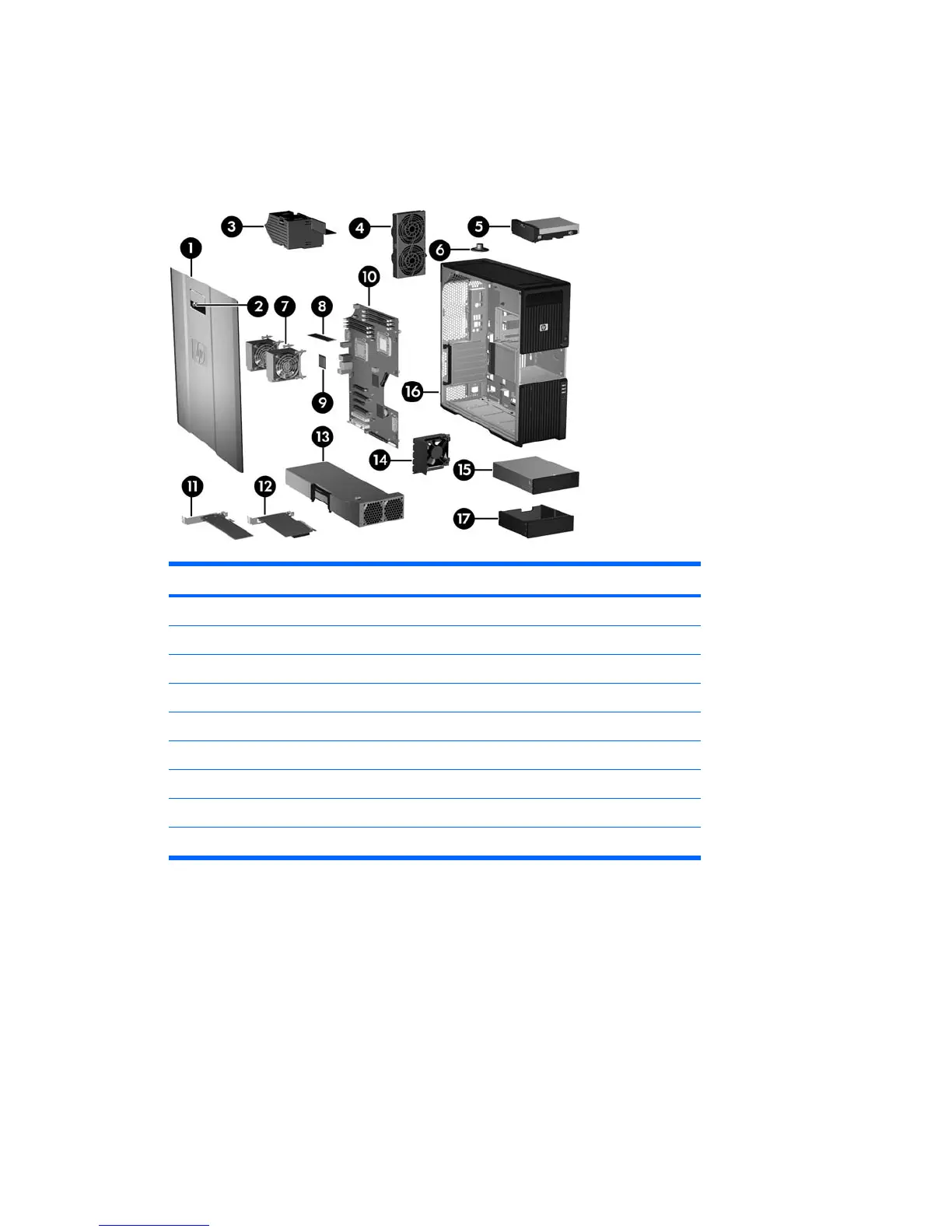

The following image shows the components of a typical workstation configuration. Drive configurations
can vary.
Figure 1-2 Workstation components
Table 1-1 Workstation component descriptions
Item Description Item Description
1 Side access panel 10 System board
2 Side access panel key lock 11 PCIe/graphics card
3 Memory duct/fan housing 12 PCI card
4 Rear system fan assembly 13 Power supply
5 Hard disk drive 14 Expansion card guide and front fan
6 Speaker 15 Optical disk drive
7 CPU heatsink 16 Chassis
8 Memory module (DIMM) 17 Optical bay filler
9 Processor (CPU)
ENWW Description 5
