Front panel I/O cable assembly
This section describes how to remove and install a front panel I/O cable assembly.
Removing the front panel I/O cable assembly
1. Disconnect power from the workstation (seePredisassembly procedures on page 73 ).
2. Remove the side access panel (see
Removing the side access panel on page 75).
3. Remove the expansion card guide/front fan holder (see
Removing the front system fan
on page 120).
4. Remove the lower front bezel (see
Removing the lower front bezel on page 84).
5. Disconnect the front panel I/O cable assembly cables from the system board as shown in the
following figure.

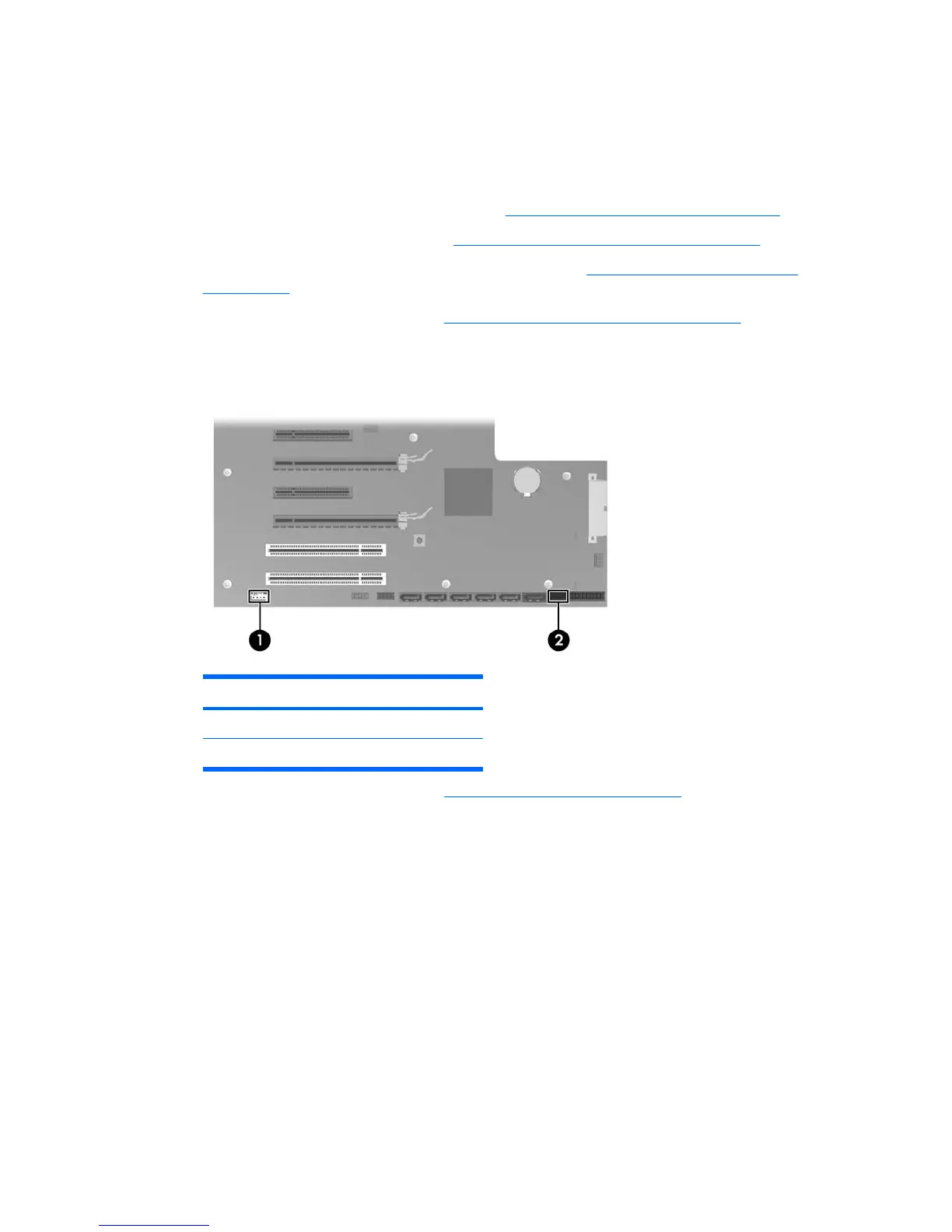

Figure 5-13 Disconnecting the front panel I/O cable assembly cables
Table 5-5 Front panel I/O cable assembly connectors
Item Description
1 Front audio
2 Front USB
6. Disconnect the speaker cable (see Removing the speaker on page 79), and remove the tie wraps
that secure the front panel I/O cables to the chassis.
ENWW Removing and installing components 85
