Right side panel
This section describes how to remove and install the right side panel.
Removing the right side panel
NOTE: Use this procedure to access the backplane wiring.
1. Disconnect power from the workstation (see Predisassembly procedures on page 73).
2. Remove the three T-15 Torx screws
as shown in the following figure. Slide the right side panel
toward the rear of the chassis, and then lift if off the chassis
2
.

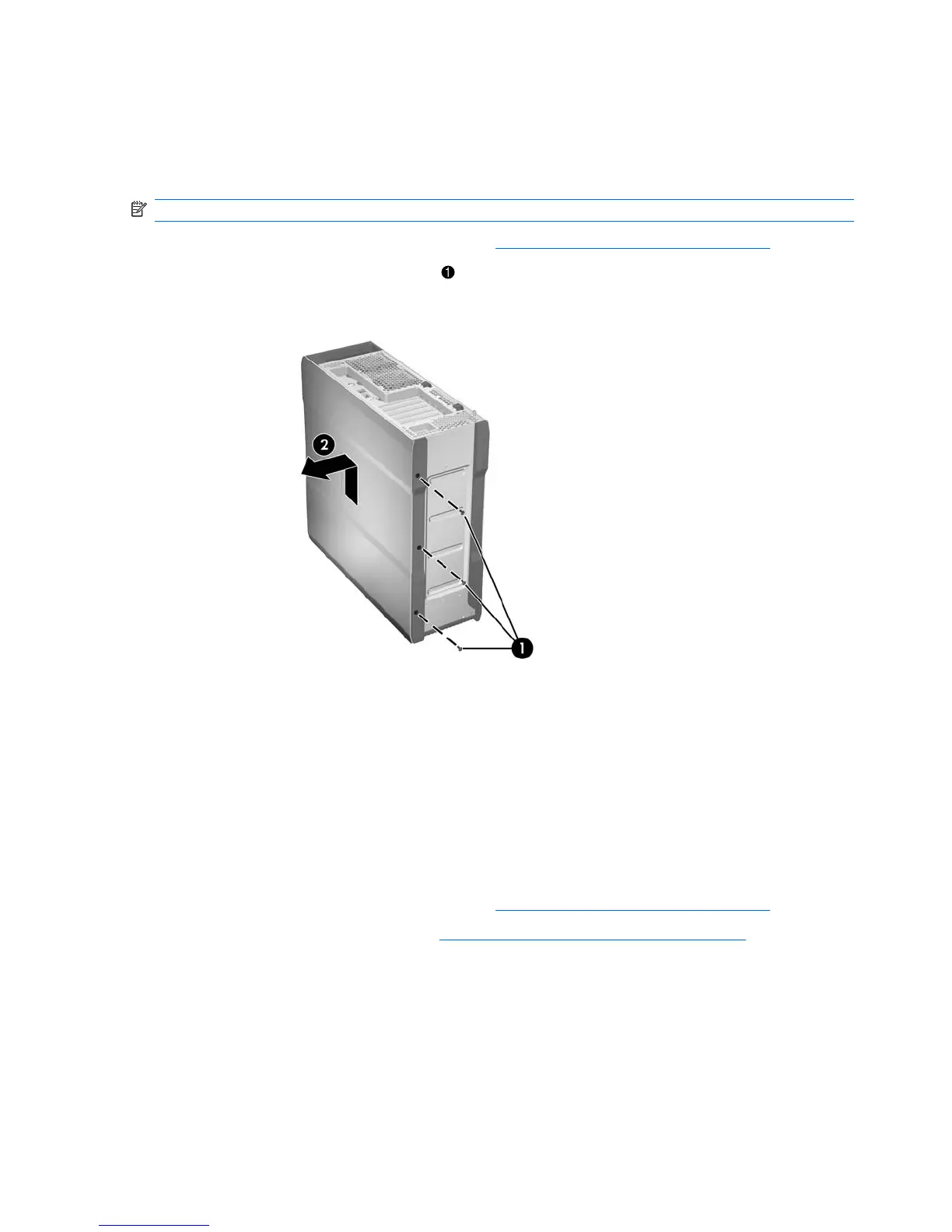

Figure 5-6 Removing the right side panel
Installing the right side panel
To install the panel, slide it into position on the workstation, and then fasten it with three T-10 Torx
screws.
Power supply
This section describes how to remove and install a power supply.
Removing the power supply
1. Disconnect power from the workstation (see Predisassembly procedures on page 73).
2. Remove the side access panel (see
Removing the side access panel on page 75).
78 Chapter 5 Replacing components ENWW
