3. Remove the two screws that fasten the solenoid lock to the chassis as shown in the following
figure.

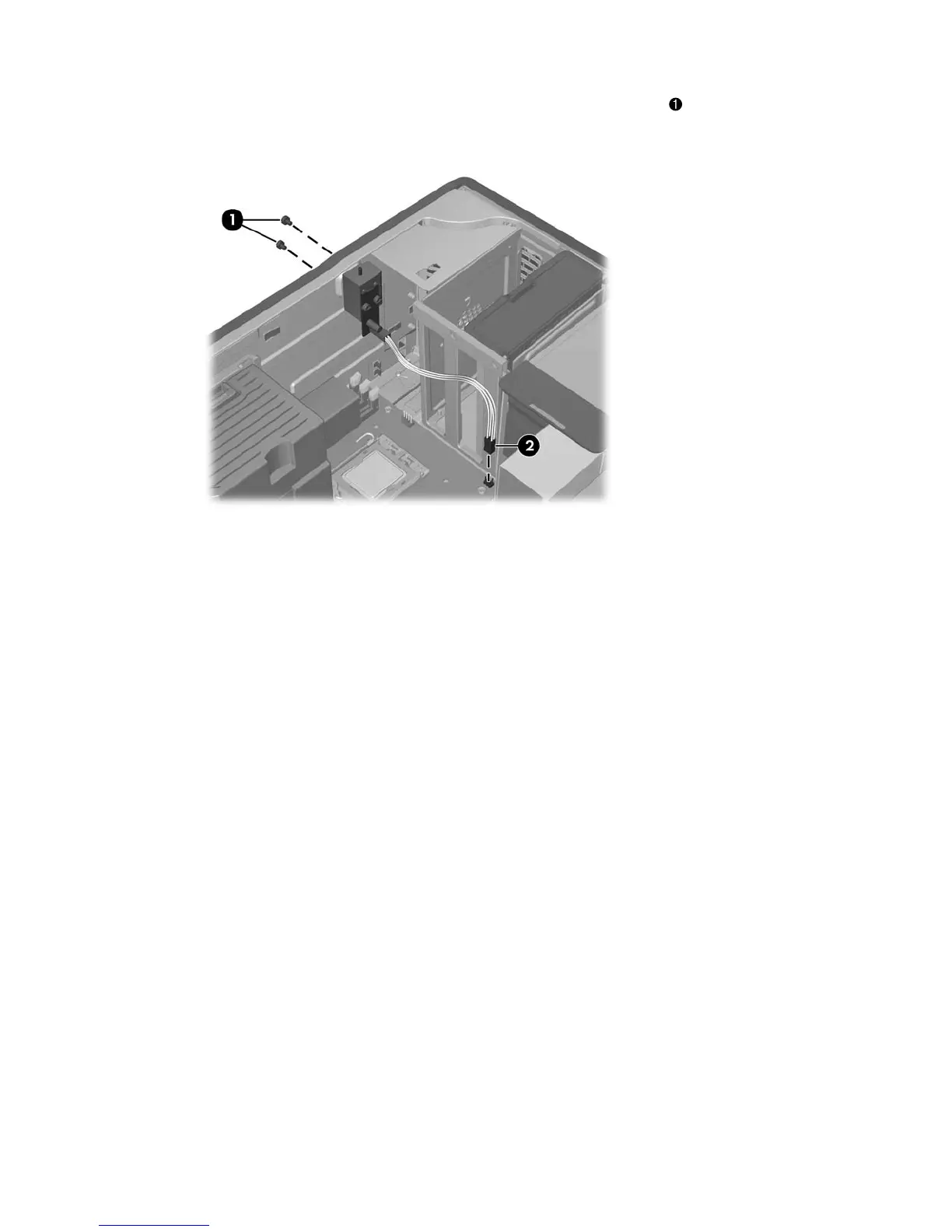

Figure 5-5 Removing the side access panel solenoid lock
4. Disconnect the side access panel solenoid lock cable from the system board
2
and remove the
assembly from the chassis.
Installing the side access panel solenoid lock
Reverse the above steps to install the side access panel solenoid lock. This involves connecting the
solenoid lock cable to the system board and fastening the solenoid lock to the chassis.
ENWW Removing and installing components 77
