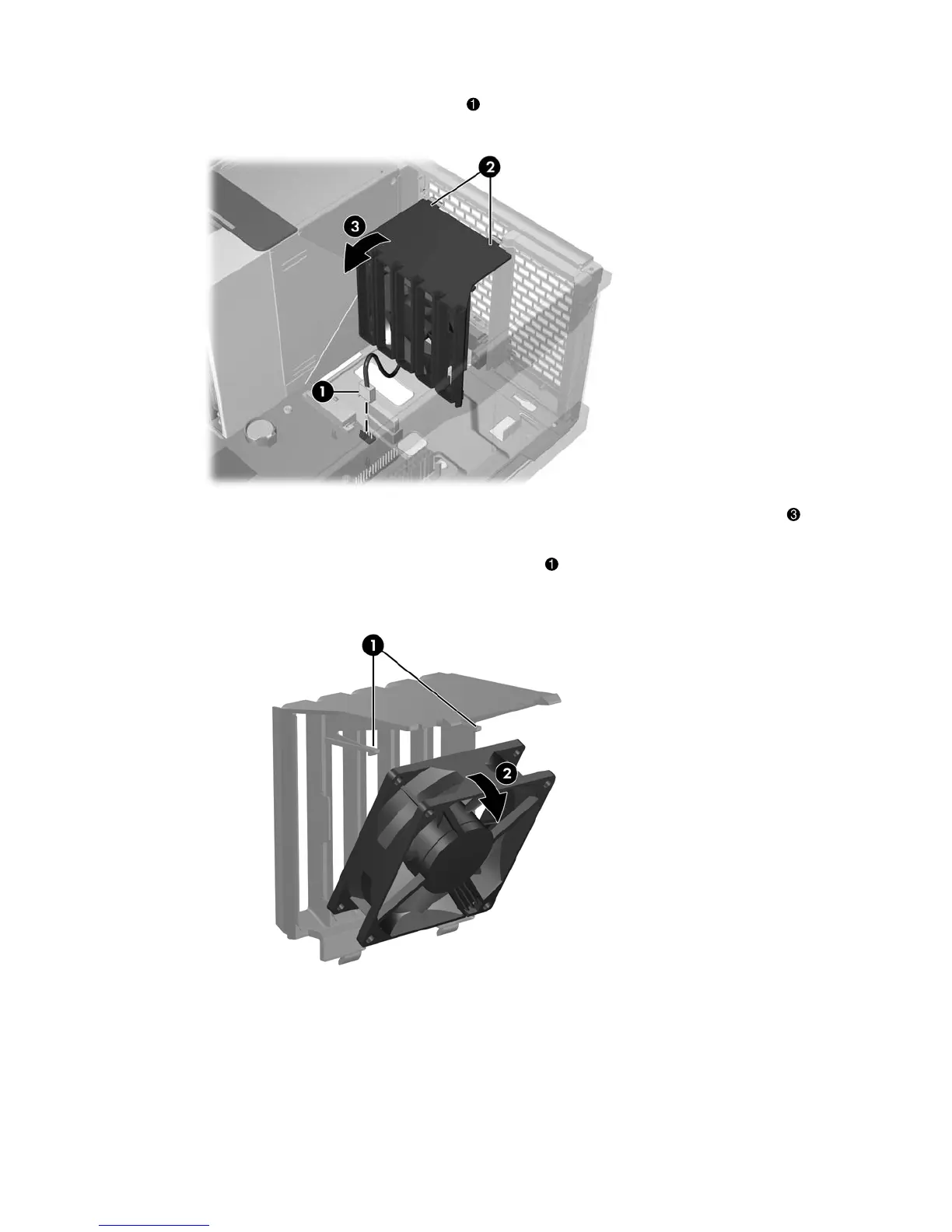

4. Disconnect the front system fan cable from the system board as shown in the following figure.
Figure 5-67 Removing the front system fan
5. Press the two tabs on top of the fan holder/card guide
2
, rotate the assembly forward , and then
pull the assembly from the chassis.
6. Carefully push the release tabs on the card guide
and rotate the fan out of the card guide
2
as
shown in the following figure.
Figure 5-68 Removing the fan from the guide
Installing the front system fan
To install the front system fan, reverse the removal steps.
Place the fan in the card guide and snap it into place. Place the fronts system fan assembly into the
chassis and snap it into place. Connect the font system fan cable to the system board.
ENWW Removing and installing components 121
