Installing a hard disk drive in the hard drive bay
Hard disk drive cable configuration
The hard disk drive bays are labeled 0 (top bay) and 1.
The hard disk drive bays provide two data cables. They are labeled HDD BAY 0, and HDD BAY 1.
SATA hard disk drive cables are plugged into SATA data port connectors on the system board, starting
at SATA port zero.
Installing a hard disk drive
1. Disconnect power from the workstation (see
Predisassembly procedures on page 73).
2. Remove the side access panel (see
Removing the side access panel on page 75).
3. Select a drive bay in which to install the drive.
Use the hard disk drive installation order shown in the following figure to select a drive bay in which
to install the drive.

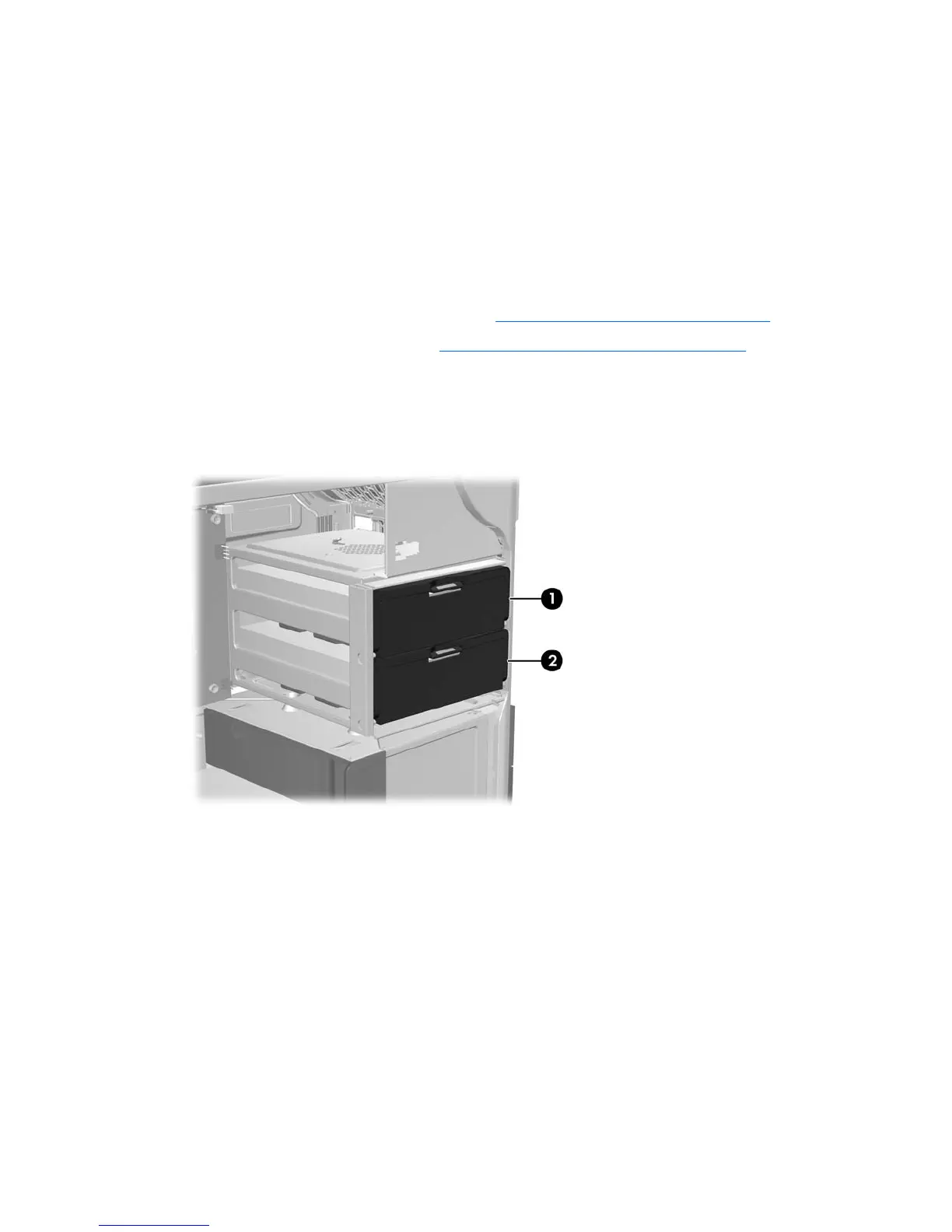

Figure 5-38 Selecting a drive bay
4. If there is a drive carrier in the desired slot, press the green touch point, pull the handle down, and
pull the carrier out of the drive bay.
104 Chapter 5 Replacing components ENWW
