4. Connect one end of the data cable to the hard drive as shown in the following figure.

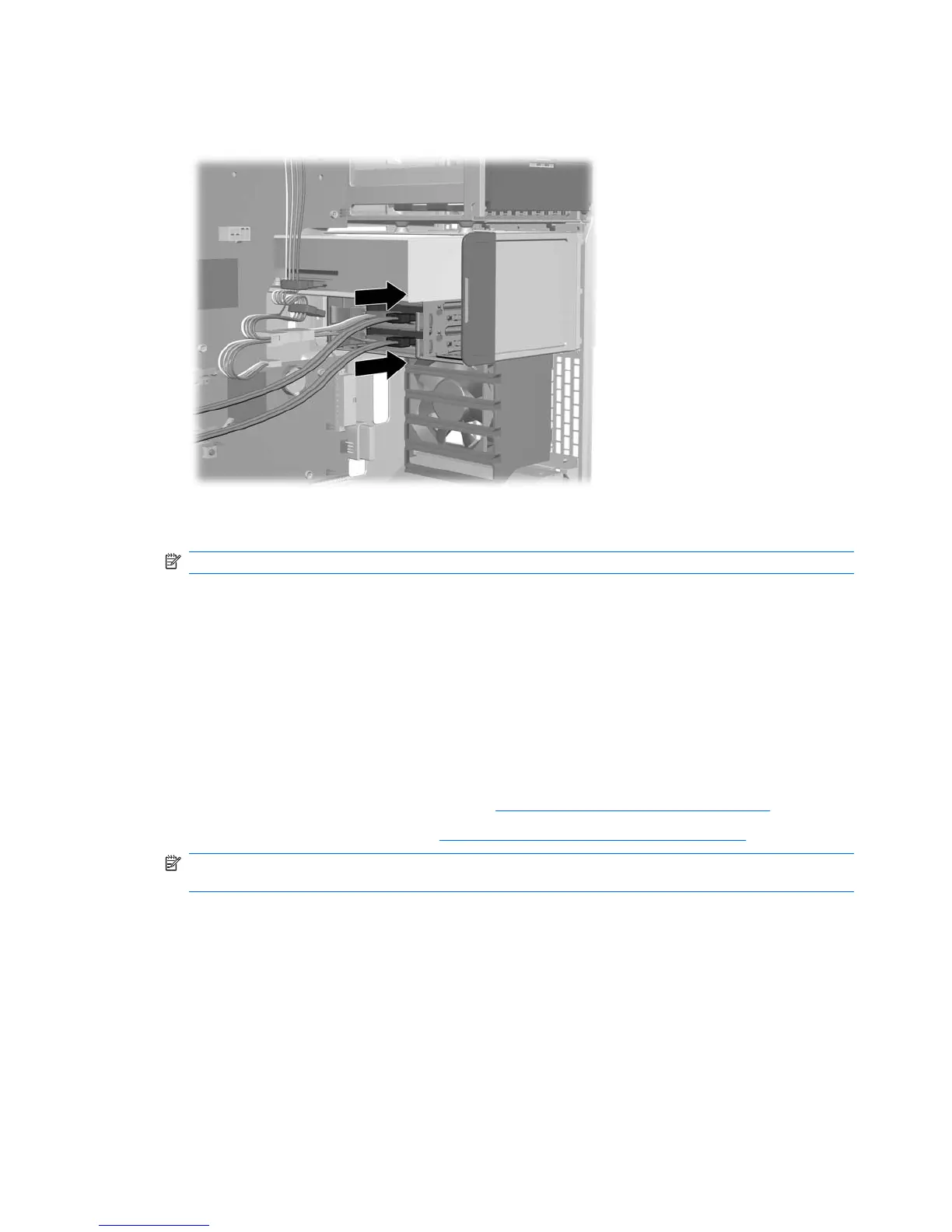

Figure 5-66 Connecting the data cables to the hard drives
5. Connect the opposite end of the data cable to the system board. Start with the lowest numbered
port connector available on the system board.
NOTE: Repeat these steps for the second hard drive.
System fans
This section describes the removal and installation of the front and rear system fans.
Front system fan
A front system fan is mounted in the workstation expansion card guide.
This section describes how to remove and install the front system fan.
Removing the front system fan
1. Disconnect power from the workstation (see
Predisassembly procedures on page 73).
2. Remove the side access panel (see
Removing the side access panel on page 75).
NOTE: An expansion card support is built into the side access panel. When the panel is removed,
the card support is removed, allowing access to the expansion cards.
3. Remove long expansion cards that might be inserted in the front system fan/card guide.
120 Chapter 5 Replacing components ENWW
