Removing a DIMM
1. Disconnect power from the workstation (see Predisassembly procedures on page 73).
2. Remove the side access panel (see
Removing the side access panel on page 75).
CAUTION: To ensure that DIMMs are not damaged during removal or installation, power off the
workstation and unplug the power cord from the AC power outlet. If you do not unplug the power
cord before installing memory, the modules might be damaged and the workstation will not
recognize the memory changes.
3. Remove the memory fan (see Removing the memory fan on page 122).
4. Remove the rear system fan assembly (see
Removing the rear system fan assembly
on page 122).
5. Push gently outward on the DIMM socket levers
as shown in the following figure.

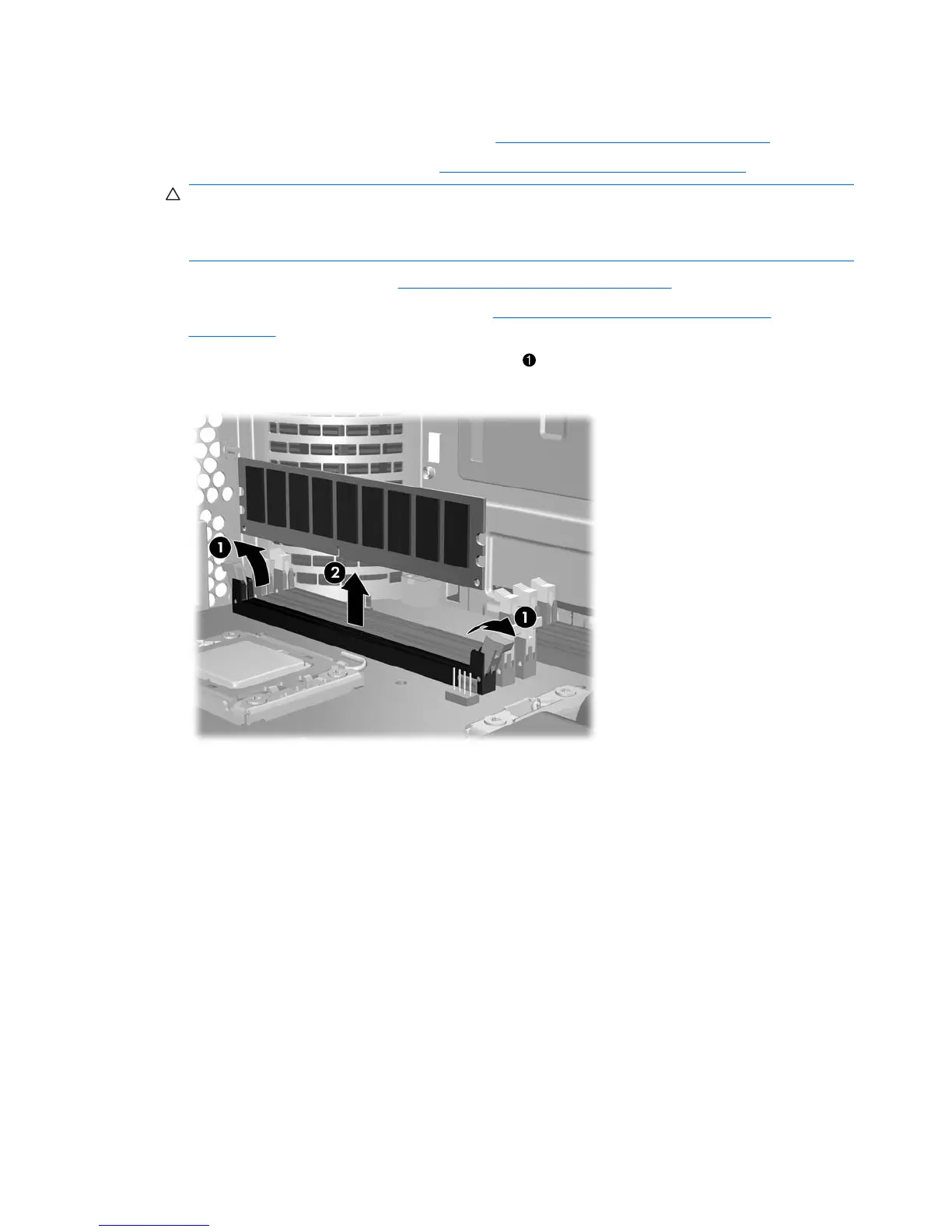

Figure 5-70 Removing a DIMM
6. Lift the DIMM straight up and out of the socket
2
, then store the DIMM in an antistatic bag.
126 Chapter 5 Replacing components ENWW
