Rear panel components
The following figure shows the rear panel of a typical workstation configuration.

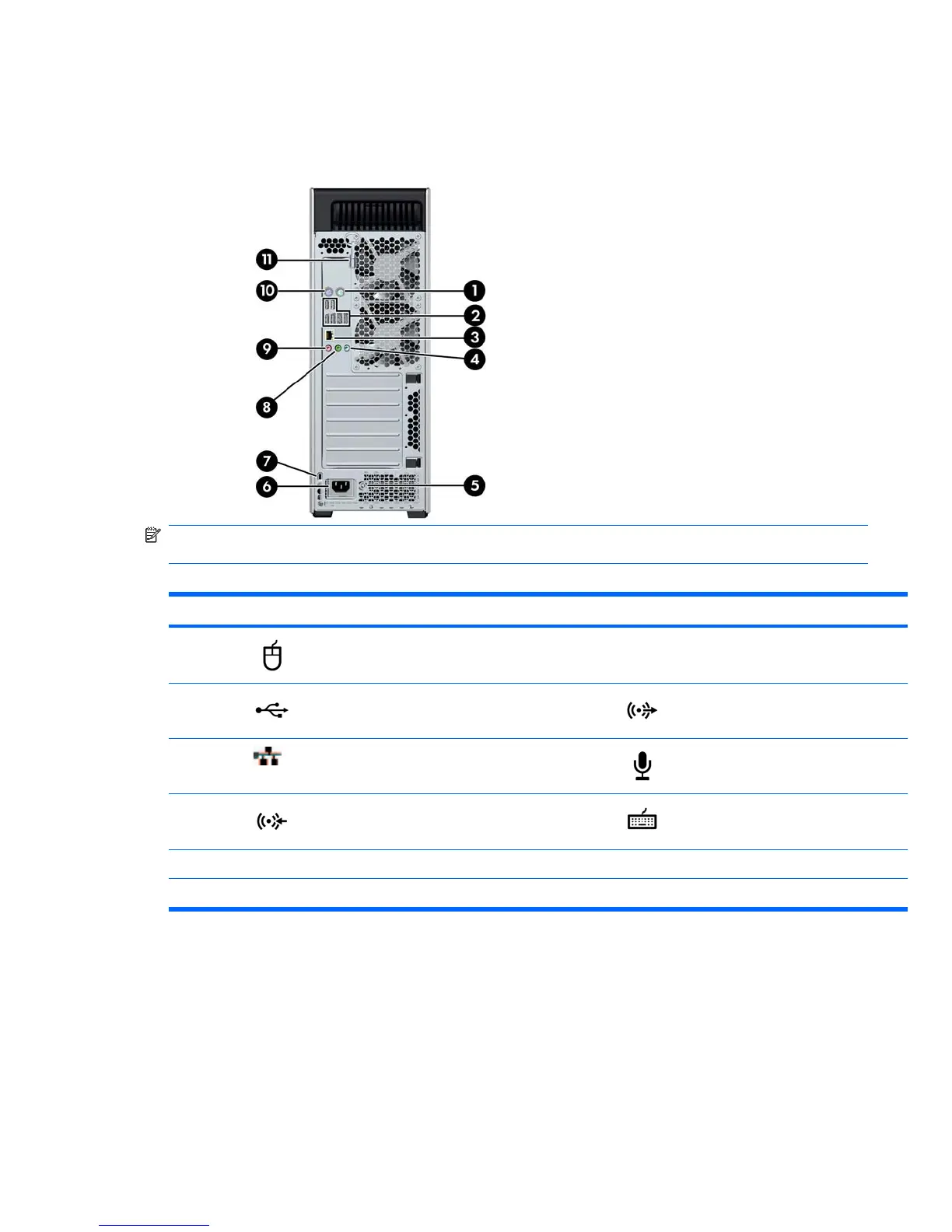

Figure 1-4 Rear panel
NOTE: The rear panel connectors are labeled with industry-standard icons and colors to assist in
connecting peripheral devices.
Table 1-3 Rear panel connectors
Item Symbol Description Item Symbol Description
1 PS/2 mouse connector (green) 7 Cable lock slot
2 USB 2.0 ports (6) 8 Audio line-out connector (green)
3 RJ-45 network connector 9 Microphone connector (pink)
4 Audio line-in connector (blue) 10 PS/2 keyboard (purple)
5 BIST LED 11 Side access panel key
6 Power cord connector
ENWW Description 7
