Installing the memory fan
1. Disconnect power from the workstation (see Predisassembly procedures on page 73).
2. Remove the side access panel (see
Removing the side access panel on page 75).

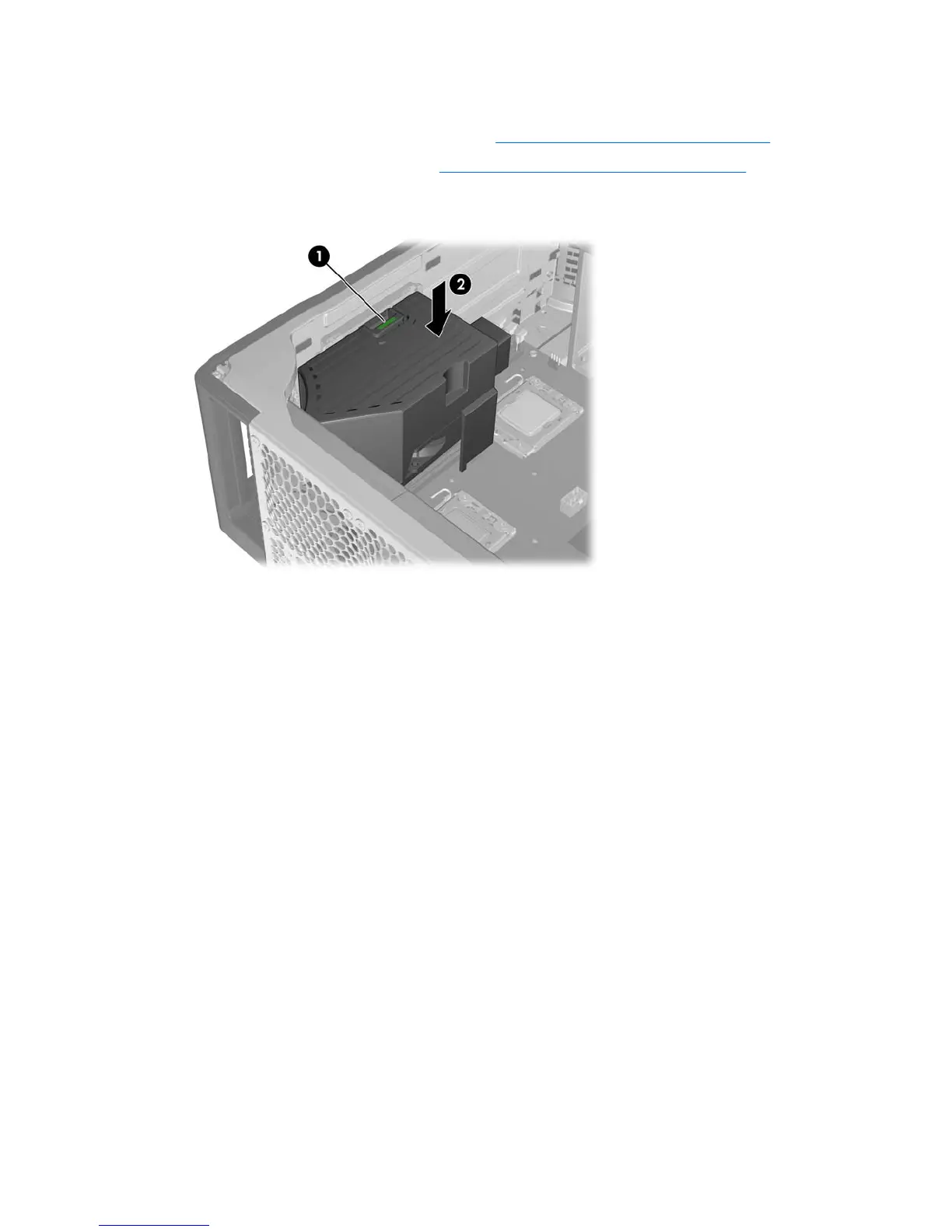

3. Squeeze and hold the system fan release tab. Lower the memory fan into the chassis guides as
shown in the figure shown next.
124 Chapter 5 Replacing components ENWW
