Removing a hard disk drive from the optical drive bay
1. Disconnect power from the workstation (see Predisassembly procedures on page 73).
2. Remove the side access panel (see
Removing the side access panel on page 75).
3. Disconnect the power
and data
2
cables from the rear of the hard disk drive as shown in the
following figure.

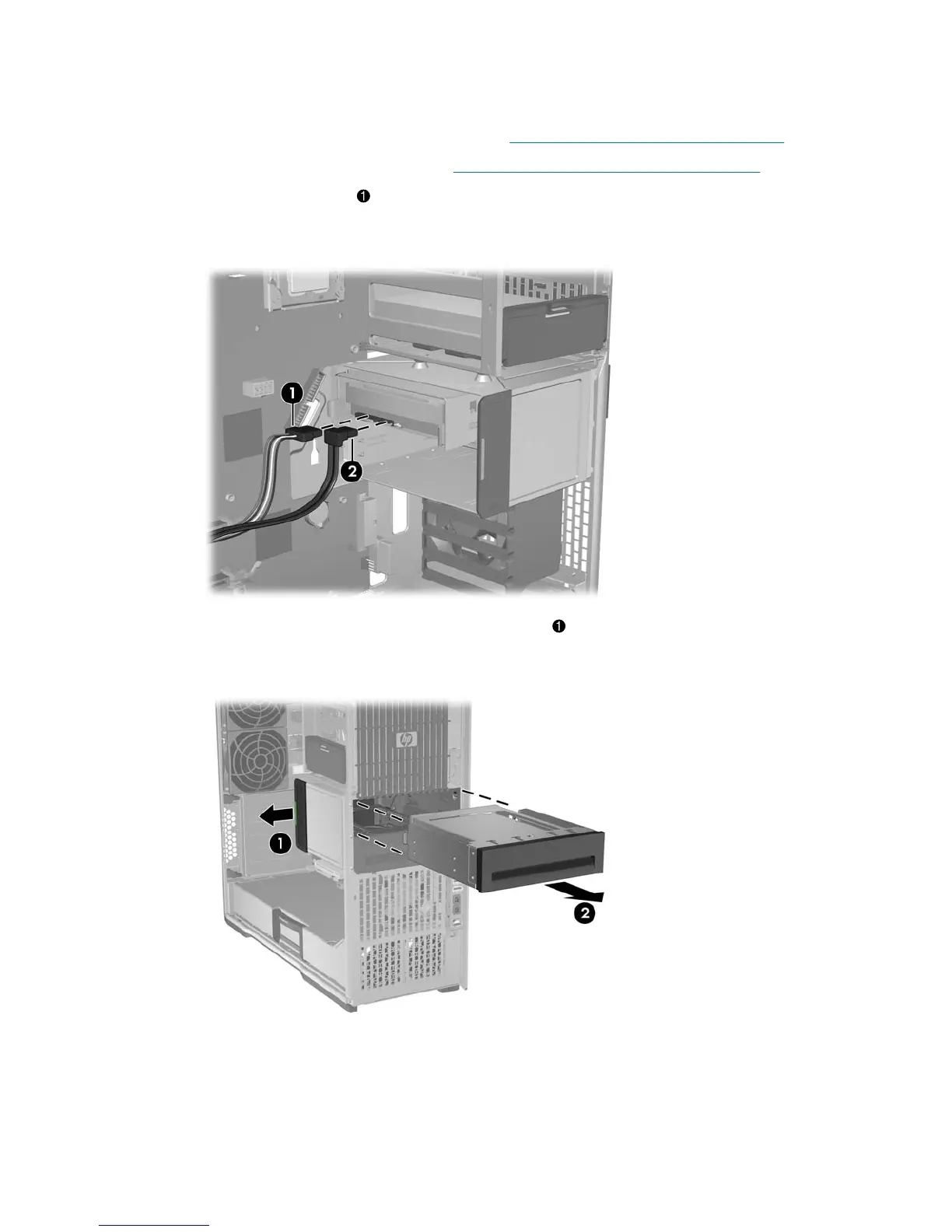

Figure 5-54 Removing the power and data cables
4. Lift the drive release latch at the green touch point , and then slide the hard disk drive carrier
from the chassis as shown in the following figure
2
.
Figure 5-55 Removing the drive from the ODD bay
ENWW Removing and installing components 113
