9. Connect the chassis power cable to the slot load optical drive power cable.

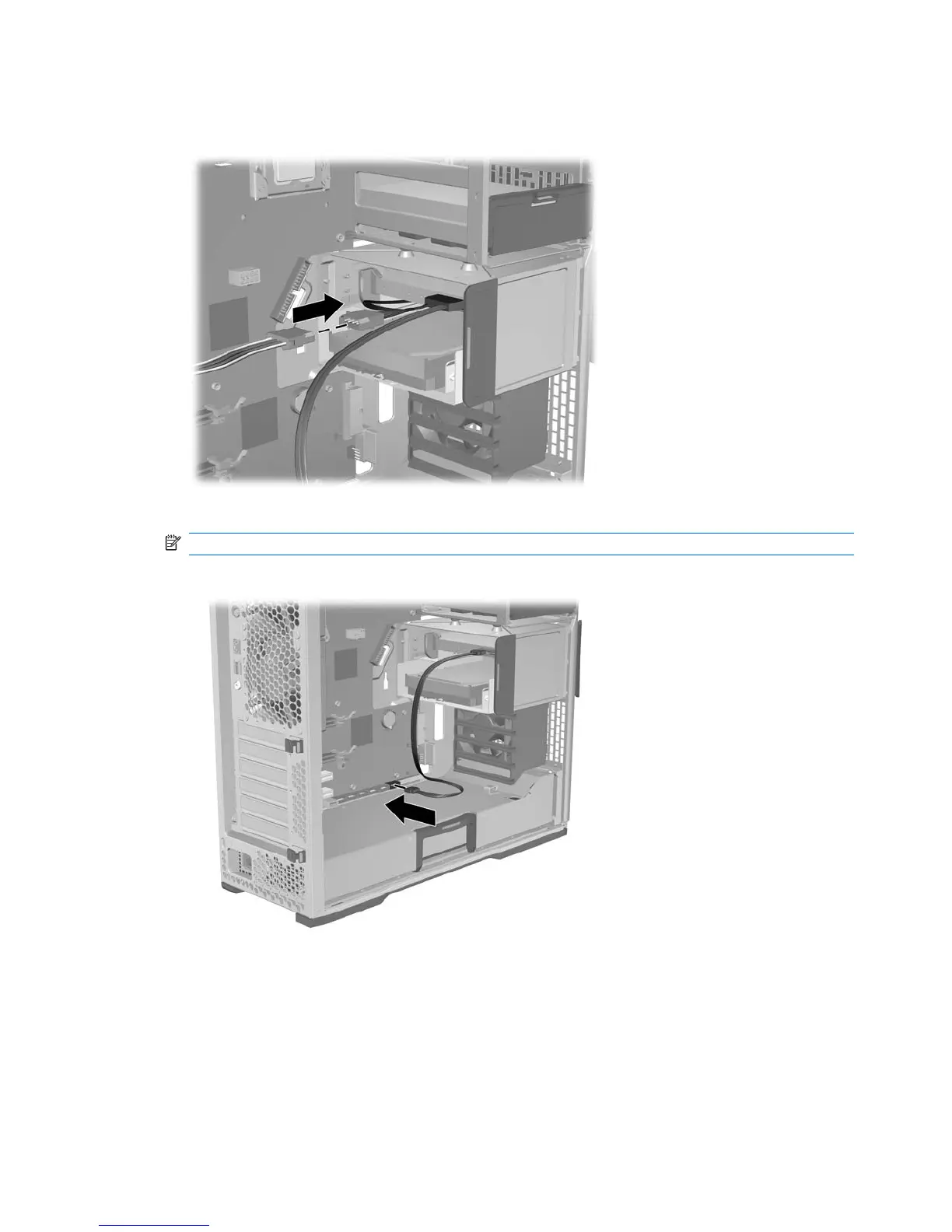

Figure 5-52 Connecting chassis and slot load optical drive power cables
10. Reconnect the optical disk drive data cable to the system board.
NOTE: The optical disk drive power/data cable is still connected to the optical disk drive.
Figure 5-53 Connecting optical disk drive data cable to system board
11. Reinstall all removed components and reconnect all cables that have been disconnected.
112 Chapter 5 Replacing components ENWW
