7. Connect the data cable to the hard disk drive.
If the hard disk drive is SAS, attach a SATA-SAS adapter to the drive before connecting the data
cable.
TIP: Route the data cable along the system board.

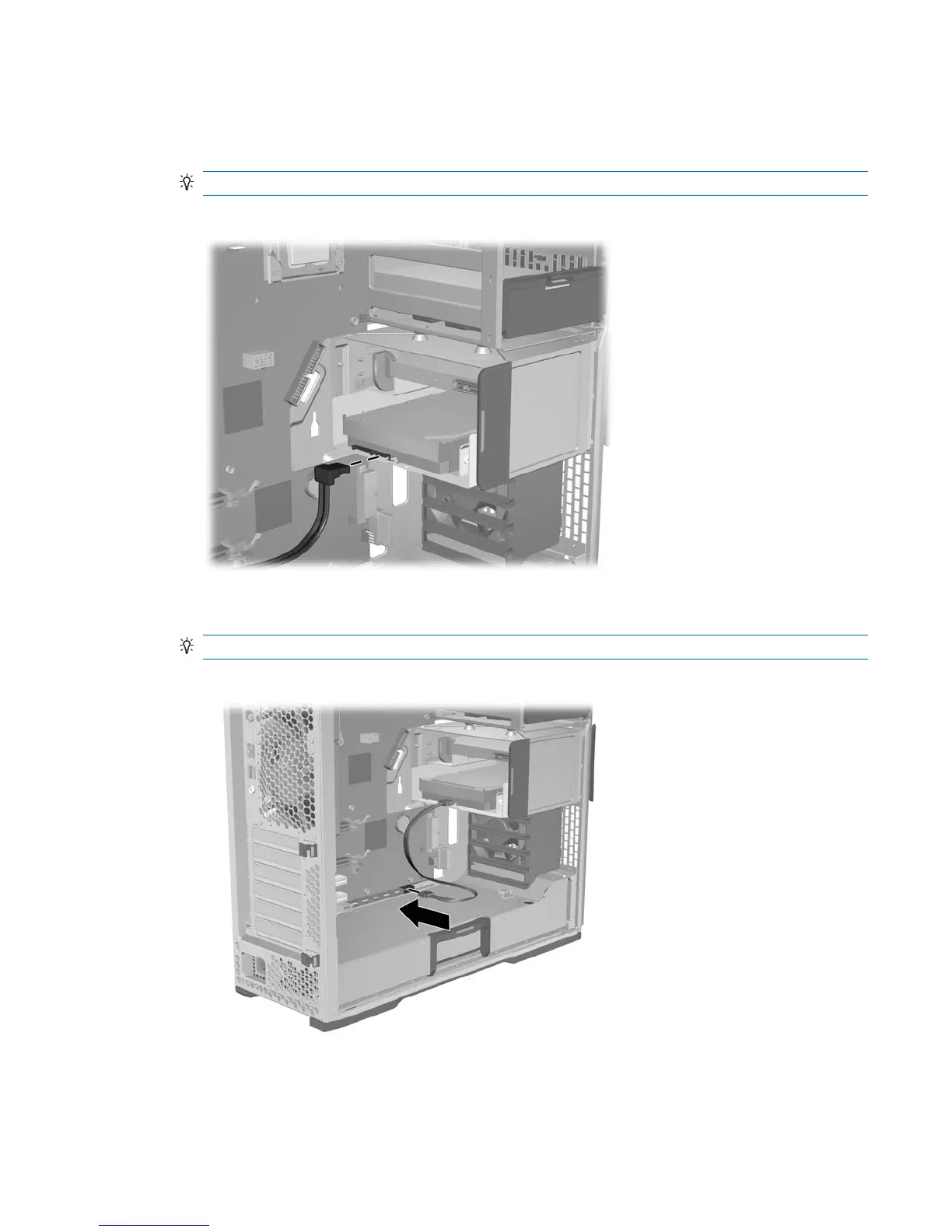

Figure 5-50 Connecting the hard disk drive data cable to the drive
8. Connect the hard disk drive data cable to the system board connector as shown in the following
figure.
TIP: Route the data cable along the system board.
Figure 5-51 Connecting the hard disk drive data cable to the system board
ENWW Removing and installing components 111
