3. Disconnect the speaker cable from the inline I/O cable as shown in the following figure.

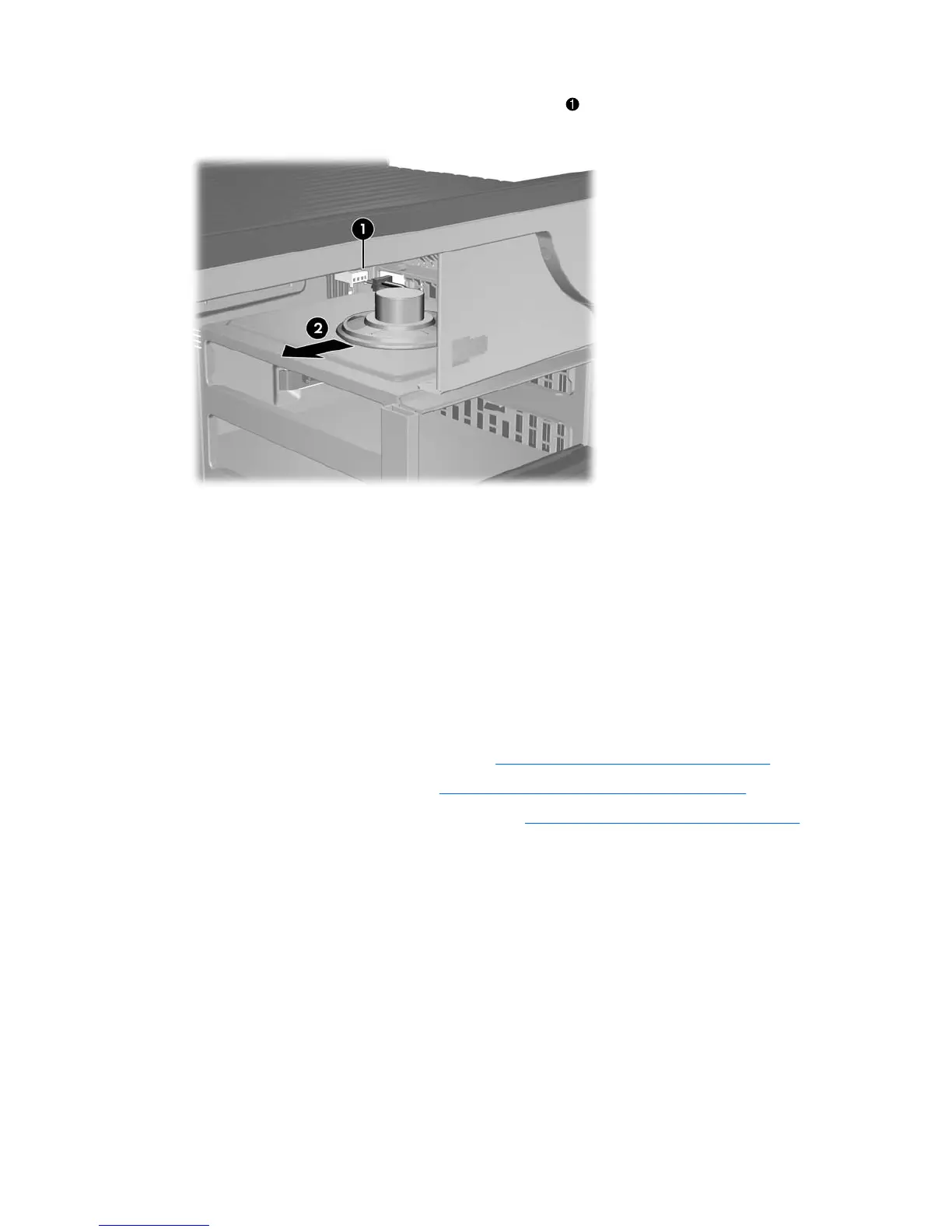

Figure 5-8 Removing the speaker
4. Slide the speaker away from the chassis flanges and remove it from the chassis
2
.
Installing the speaker
To install the speaker, reverse the removal steps.
Side access panel sensor (optional)
The side access panel sensor is a remote switch that detects when the side access panel is opened.
This section describes how to remove and install the sensor.
Removing the side access panel sensor
1. Disconnect power from the workstation (see Predisassembly procedures on page 73).
2. Remove the side access panel (see
Removing the side access panel on page 75).
3. Remove the power supply from the chassis (see
Removing the power supply on page 78).
80 Chapter 5 Replacing components ENWW
