Installing a hard disk drive in the slot load optical bay
1. With power off and the workstation open, remove the side access panel and any expansion card
cables that might interfere with slot load assembly installation.
2. Remove the slot load optical bay assembly. (See
Removing the slot load optical disk drive
on page 97 for details.)
3. Place the hard disk drive in the slot load carrier at an angle and push it into the carrier as shown
in the following figure.
Place the hard disk drive in the slot load carrier at an angle and push it into the carrier as shown
in the following figure.

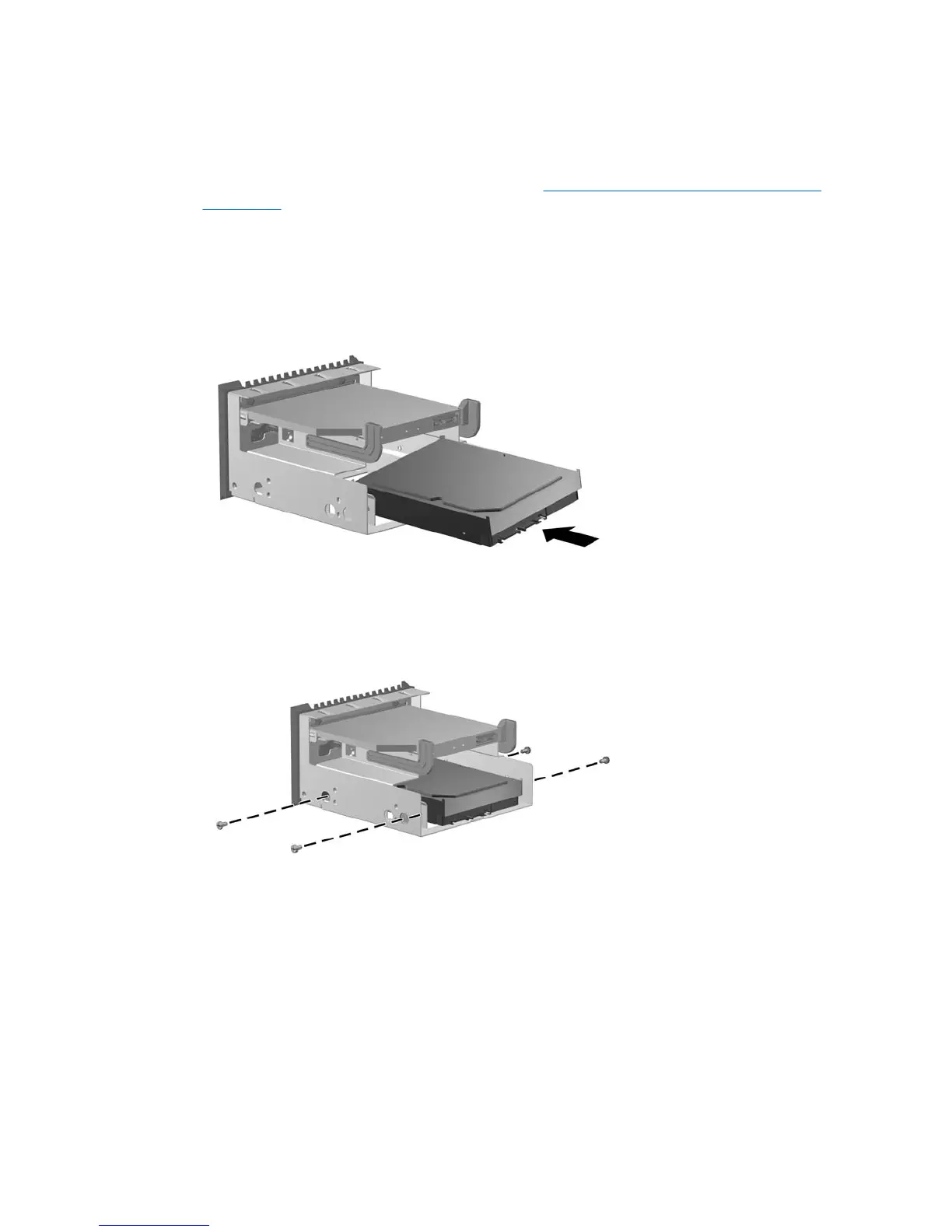

Figure 5-46 Position the hard disk drive in the slot load carrier
4. Rotate the hard disk drive flat, and adjust its position so the drive holes align with the carrier holes.
Fasten the drive in the carrier with four Torx slotted screws supplied with the disk drive as shown
in the following figure.
Figure 5-47 Fastening the hard disk drive in the slot load carrier
ENWW Removing and installing components 109
