Removing a hard disk drive from the hard drive bay
1. Disconnect power from the workstation (see Predisassembly procedures on page 73).
2. Remove the side access panel (see
Removing the side access panel on page 75).
3. Press the green hard disk drive release tab
, lift the handle
2
, and then use the handle to pull
the hard disk drive from the chassis as shown in the following figure.

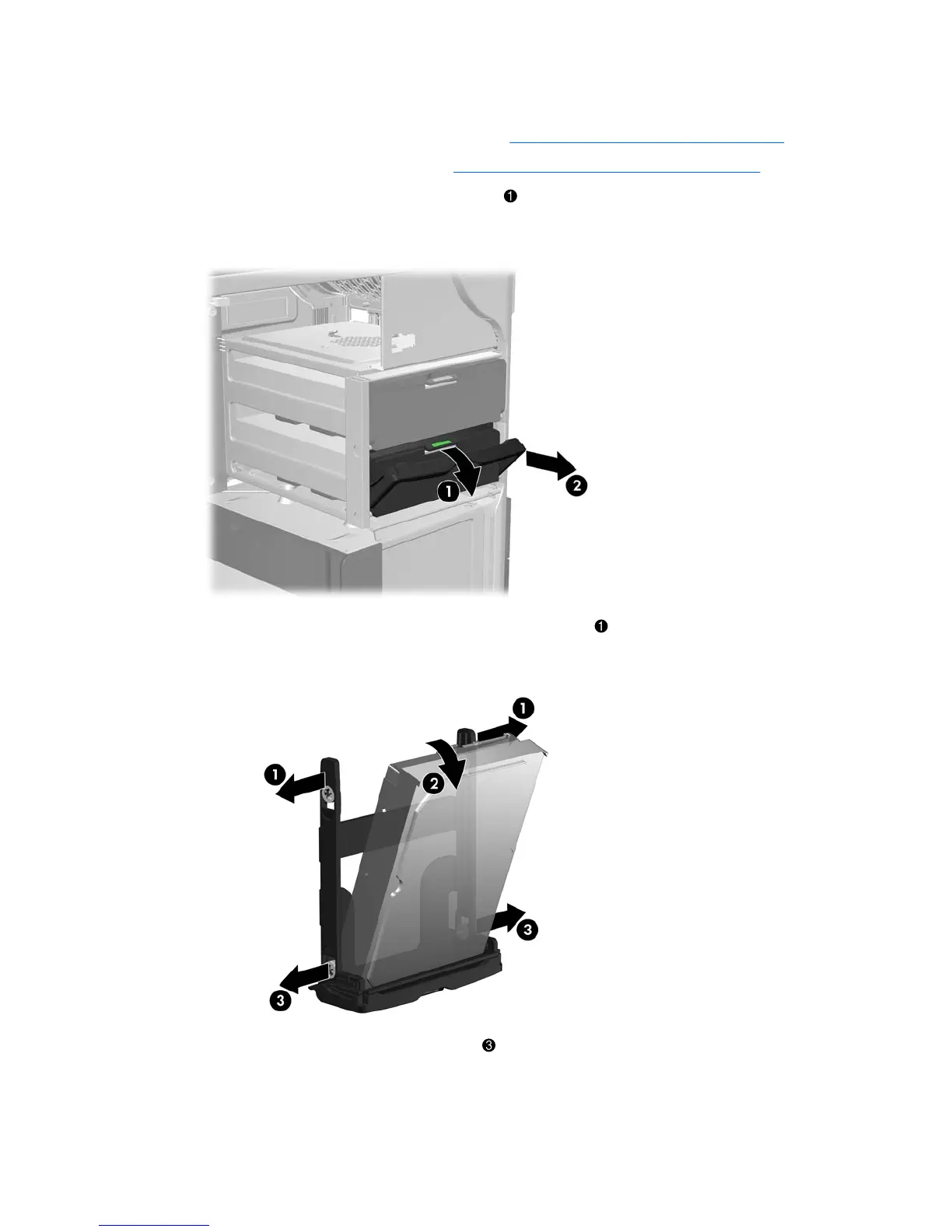

Figure 5-36 Removing the drive from the chassis
4. Carefully separate the upper hard disk drive carrier rails, and then tilt the drive outward
2
as
shown in the following figure.
Figure 5-37 Removing the drive from the carrier
Carefully separate the lower carrier rails , and then remove the drive from the carrier.
5. Reinstall all removed components and reconnect all cables that have been disconnected.
ENWW Removing and installing components 103
