HP Z600 User Manual

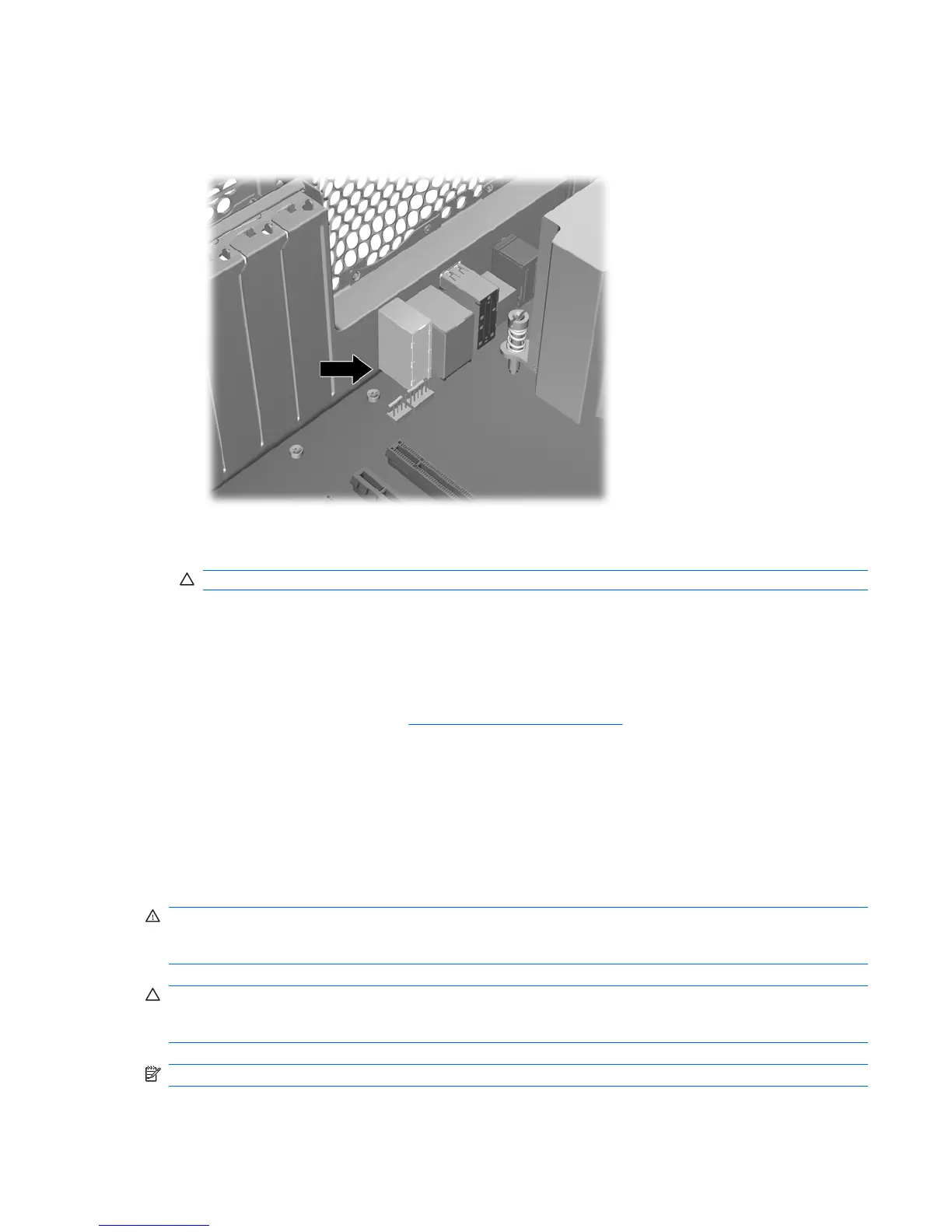

3. Guide the edge of the system board under the rear panel connector stack as shown in the following
figure.
Figure 5-87
4. With the system board flat, push back on the board while maintaining downward pressure on the
board so all standoffs remain engaged.
CAUTION: Do not pinch any power or data cables.
5. Lift the system board corners to make sure the board is engaged properly.
6. Engage both system board latches to lock the board in place.
7. Reinstall all removed components (in the reverse order of the section above) and reconnect all
cables that have been disconnected.
To identify power cables, see
Power connections on page 81.
See the removing and installing sections of this chapter for details on reinstalling component
cables.
Battery
This section describes how to remove and install the battery.
The battery that comes with the workstation provides power to the real-time clock and has a minimum
lifetime of about three years.
WARNING! This workstation includes a lithium battery. There is a risk of fire and chemical burn if the
battery is handled improperly. Do not disassemble, crush, puncture, short external contacts, dispose in
water or fire, or expose it to temperatures higher than 60°C (140°F).
CAUTION: Before removing the battery, back up the CMOS settings in case they are lost when the
battery is removed. To back up the CMOS settings, select the Save to Diskette option in the Computer
Setup (F10) Utility.
NOTE: Do not dispose of batteries, battery packs, and accumulators with general household waste.
ENWW Removing and installing components 147

HP Z600 Specifications

General

Tcase	76 °C
Bus type	QPI
Stepping	D0
FSB Parity	No
Processor cache	4 MB
Processor cores	4
Processor model	E5504
System bus rate	4.8 GT/s
Processor series	Intel Xeon 5500 Series
Processor socket	Socket B (LGA 1366)
Processor codename	Nehalem EP
Number of QPI links	2
Processor frequency	2 GHz
Processor cache type	Smart Cache
Processor lithography	45 nm
Processor system type	DP
Processor manufacturer	Intel
Processor front side bus	- MHz
Processor operating modes	64-bit
ECC supported by processor	Yes
Thermal Design Power (TDP)	80 W
Number of processors installed	1
CPU multiplier (bus/core ratio)	15
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	800 MHz
Memory bandwidth supported by processor (max)	19.2 GB/s
Maximum internal memory supported by processor	144 GB
Audio system	Integrated High Definition Realtek ALC262 Audio, optional Creative X-Fi Titanium PCIe Audio Card, optional HP Thin USB Powered Speakers
Product type	Workstation
Motherboard chipset	Intel® 5520
Internal memory	1 GB
Memory channels	Triple-channel
Memory clock speed	1333 MHz
Maximum internal memory	24 GB
Memory layout (slots x size)	1 x 1 GB
HDD speed	7200 RPM
HDD capacity	250 GB
HDD interface	SATA
Optical drive type	DVD Super Multi
I/O ports	Front: 3 USB 2.0, 1 microphone in, 1 headphone out, optional 1 IEEE 1394a; Rear: 6 USB 2.0, 1 audio in, 1 audio out, 1 microphone in, 2 PS/2, 1 RJ-45 to integrated Gigabit LAN, optional 1 serial; Internal: 3 USB 2.0
Serial ports quantity	0
USB 2.0 ports quantity	9
Power supply	650 W
Display	HP LP1965 19-inch LCD Monitor, HP LP2065 20-inch LCD Monitor, HP LP2275w 22-inch Widescreen LCD Monitor, HP LP2475w 24-inch Widescreen LCD Monitor, HP DreamColor LP2480zx Professional Display (24-inch widescreen), HP LP3065 30-inch Widescreen LCD Monitor (all sold separately)
Drive bays	2 external 5.25\
Graphics card	-
Keyboard type	HP PS/2 Standard Keyboard
Expansion slots	2 PCI Express Gen2 x16, 1 PCI Express Gen2 (x8 mechanically, x4 electrically), 1 PCI Express Gen1 (x8 mechanically, x4 electrically), 2 PCI
Pointing device	HP USB Laser Scroll Mouse
Power requirements	650 watts wide-ranging, active Power Factor Correction, 85% efficient Power Supply
Storage drive type	250 GB 7200 rpm SATA NCQ SATA 250 GB
HDD controller type	SATA (10000 rpm) SATA (7200 rpm) SAS (15000 rpm)
Video card features	No integrated Graphic Card
Maximum HDD capacity	600 GB
Storage drive controller	Integrated 6 channel SATA 3 Gb/s controller with RAID (0, 1, 5 or 10) capability, optional SAS controller, LSI 3041E 4-port SAS/SATA, with RAID (0, 1 or 10) capability
Minimum storage drive space	146 GB
Non-operating altitude	9100 m
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	8 - 90 %
Operating relative humidity (H-H)	8 - 85 %
Operating system installed	Windows Vista Business
Compatible operating systems	Red Hat Enterprise Linux WS 5 64-bit, Novell Suse SLED 11
Maximum graphics card memory	0.032 GB
Chassis type	Mini Tower
Country of origin	China
Processor code	SLBF9
Processor ARK ID	40711
Processor package size	42.5 x 45 mm

Weight and Dimensions

Depth	440 mm
Width	165.3 mm
Height	445.1 mm
Weight	19000 g
